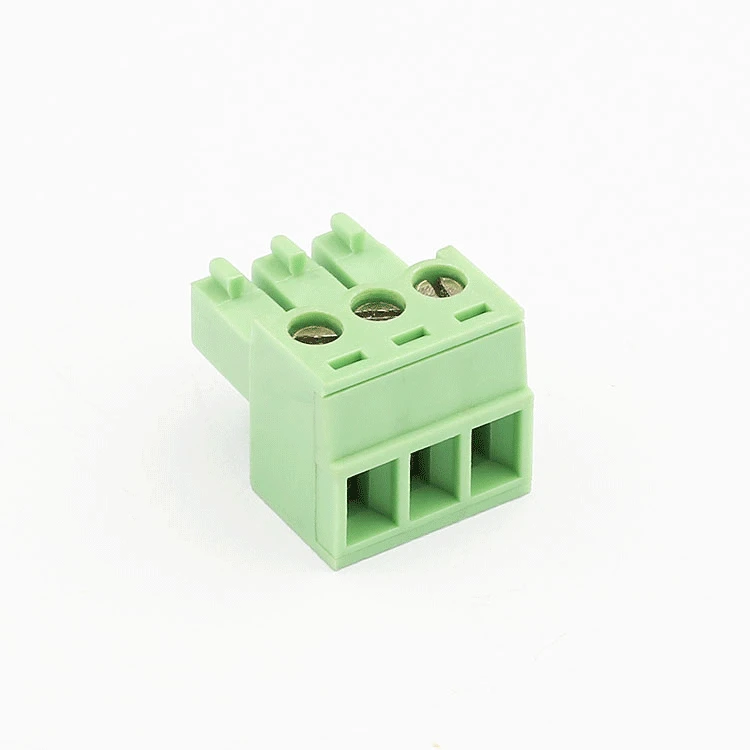

Description
Product Specifications:
– Material: Contact – Brass, Tin Plated; Housing – PA66, UL94V-0
– Color: Green
– Environmental: Operating Temperature -40°C to 150°C; Short-time Temperature +250°C for 5 sec
– Electrical: Rated Voltage 300V, Rated Current 10A, Contact Resistance 20mΩ, Insulation Resistance >5000MΩ DC500V, Withstanding Voltage AC2000V/1Min
– Additional Features: Strip Length 6~7mm, Number of Contacts 1-10, Conductor Size 21-30 AWG, Type PCB
Product Advantages:
Our terminal block connector stands out with its high precision, durability, and excellent electrical performance. The brass contacts with tin plating ensure reliable conductivity, while the PA66 housing provides superior insulation and flame resistance. Ideal for a wide range of applications, from industrial machinery to consumer electronics.
After-sales Service:
We are committed to providing excellent after-sales service, including technical support and product warranties. As a trusted supplier, we ensure your satisfaction with every purchase.
Choose us for your terminal block connector needs and experience the difference of factory-direct quality and service.
| Material | |
| Contact | Brass, Tin Plated |
| Housing | PA66 ,UL94V-0 |
| Color | Green |
| Environmental | |
| Operating temperature | -40°C ~ 150°C |
| Short-time temperature | +250°C for 5 sec |
| Electrical | |
| Rated voltage | 300V connector blocks |
| Rated current | 10A |
| Contact resistance | 20mΩ |
| Insulation resistance | >5000MΩ DC500V |
| strip length | 6~7mm |
| Withstanding voltage | AC2000V/1Min |
Why Choose Our 7-Pin Terminal Block Connector?
Our 7-Pin Terminal Block Connector offers high precision and reliable conductivity, making it ideal for industrial machinery and consumer electronics. The brass contacts with tin plating ensure excellent electrical performance, while the PA66 housing provides superior insulation and flame resistance.
What Are the Key Features of Our Product?
Key features include a rated voltage of 300V, rated current of 10A, and contact resistance of 20mΩ. The insulation resistance is greater than 5000MΩ DC500V, and it can withstand voltages up to AC2000V/1Min. Additionally, the strip length is 6~7mm, and it supports conductor sizes from 21-30 AWG.
How Does Our Product Stand Out from Competitors?
Our product stands out due to its factory-direct quality, competitive pricing, and excellent after-sales service. As a trusted supplier, we ensure that every connector meets the highest standards of precision and durability, providing you with a reliable solution for your electrical connectivity needs.
