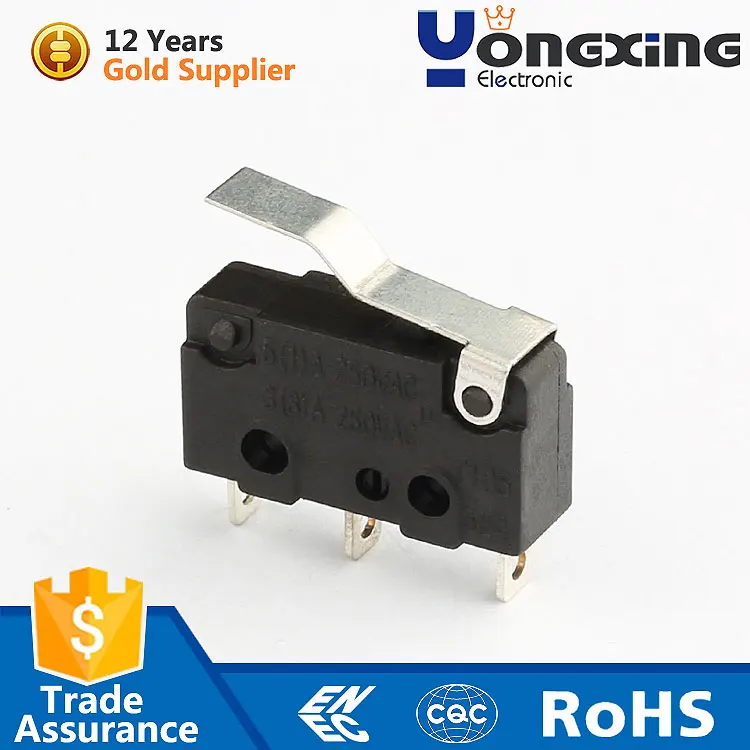

Description
Our micro switch stands out with its exceptional operating temperature range of -25℃ to +125℃, ensuring durability even in extreme conditions. With a contact resistance of ≤50mΩ and insulation resistance of ≥100MΩ, it guarantees optimal electrical performance. Additionally, it boasts a dielectric strength of 1500V and an impressive electrical life of 50,000 cycles.
Certified by CQC and ENEC, our micro switch meets the highest quality standards. It is available in IP40 and IP65 protection levels, offering enhanced waterproof capabilities. As a factory supplier, we offer competitive wholesale prices and excellent after-sales service, ensuring your satisfaction.
Choose our micro switch for its superior quality, reliability, and affordability. Perfect for both industrial and residential applications, it’s the ideal choice for anyone seeking a high-performance, waterproof micro switch.
|
item
|
value
|
|
Place of Origin
|
Shanghai,China
|
|
Brand Name
|
SK(shangkai) yongxing
|
|
Model Number
|
KW11-12-A2AA-B（5A)
|
|
Max. Current
|
5A
|
|
Max. Voltage
|
250V
|
|
Operating Temperature
|
-25℃~+125℃
|
|
Protection Level
|
IP40 IP65
|
|
Contact Resistance
|
≤50mΩ
|
|
Insulation Resistance
|
≥100MΩ
|
|
Dielectric Strength
|
1500V
|
|
Electrical life
|
50,000
|
|
Operating Temperature Range
|
-25℃~+125℃
|
|

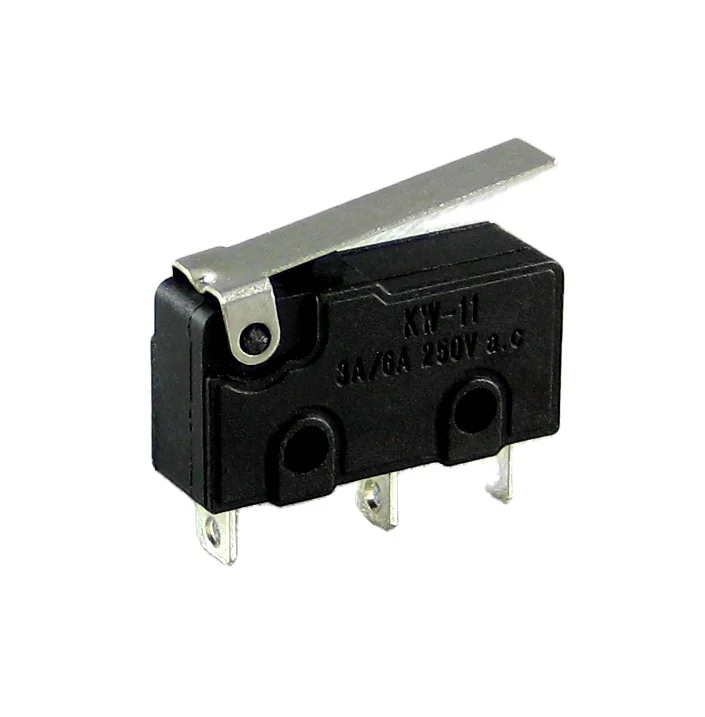

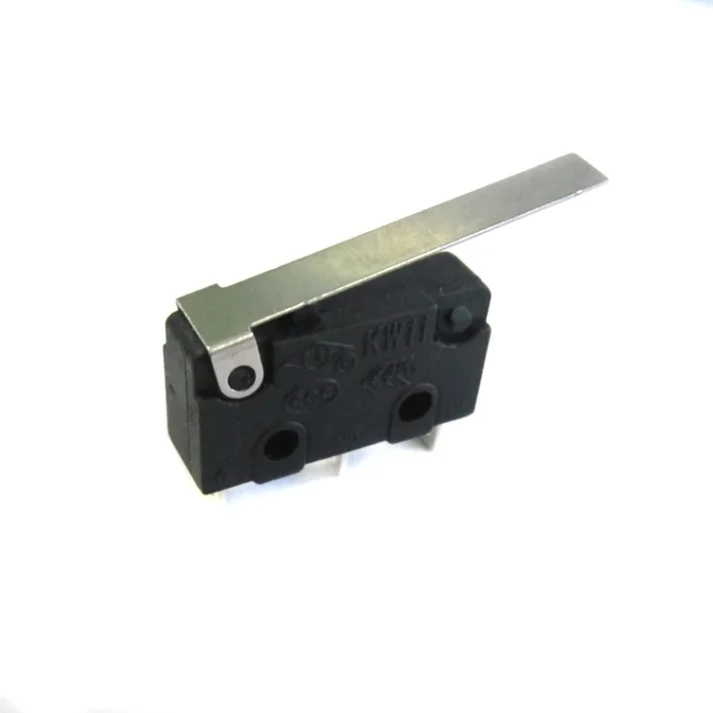

Lever type
|
Long Straight Lever
|
|
Lever Length
|
22.5mm
|
|
Certification
|
CQC ENEC
|
|
Protection Degree
|
IP40, IP65 is also available
|
|
Color
|
Black
|
Why Choose Our Micro Switch?
Our micro switch offers unparalleled precision and reliability, making it the perfect choice for electric cookers and other home appliances. Its waterproof design ensures durability even in humid environments, while its long straight lever provides precise control.
What Are the Key Features?
Key features include a 5A 250VAC rating, an operating temperature range of -25℃ to +125℃, and a dielectric strength of 1500V. It also boasts a long electrical life of 50,000 cycles and is available in IP40 and IP65 protection levels.
How Does It Compare to Competitors?
Our micro switch stands out with its superior quality, competitive pricing, and excellent after-sales service. As a factory supplier, we offer direct wholesale prices, ensuring you get the best value for your money. Choose us for reliability, performance, and affordability.
