Description

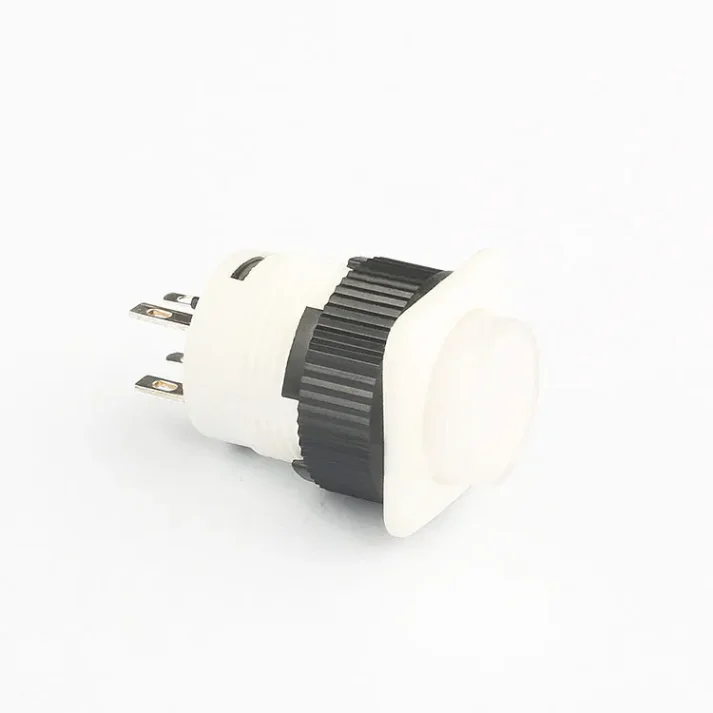

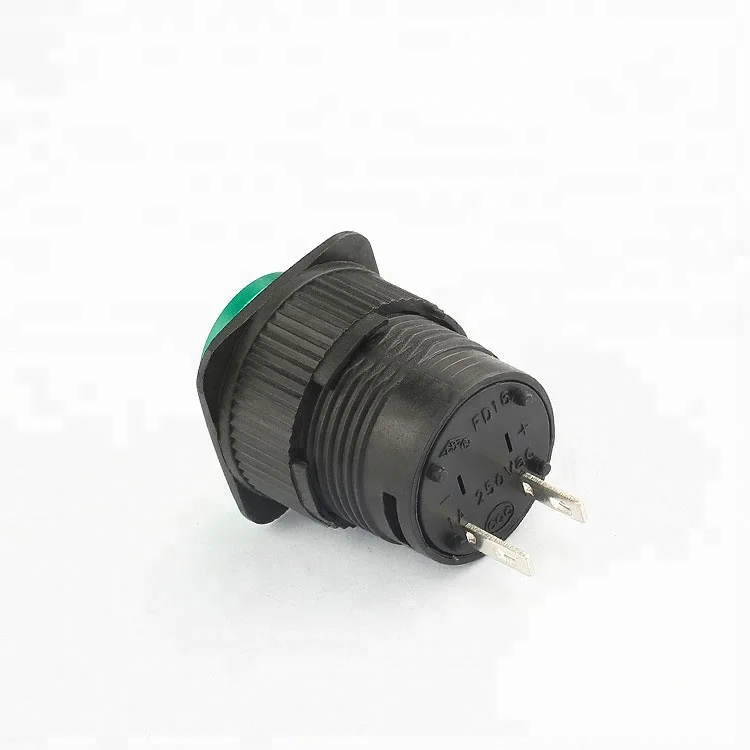

High-Quality 16mm LED Momentary Push Button Switch – Factory Direct Supply
Introducing our premium 16mm LED momentary push button switch, a top-notch product from our factory in Shanghai, China. As a leading supplier and wholesaler, we take pride in offering this high-quality switch that meets and exceeds industry standards.
Product Specifications
- Model: FD16
- Max. Current: 1A
- Max. Voltage: 250V AC
- LED: Yes
- IP Level: IP41
- Switch Combination: 1NO1NC, 1NO
- Operating Temperature: -25 ℃~+55℃
- Electronic Life (Cycles): Moment: 10,000; Alternate: 5,000
- Mechanical Life (Cycles): Moment: 50,000; Alternate: 100,000
- Insulation Resistance: ≥100MΩ
- Contact Resistance: ≤50mΩ
- Dielectric Strength: 1,500V
- Color: Black
- Certification: CQC, CE
- Protection Level: IP40
- Rated Voltage: 110V, 240V
Product Advantages
Our LED momentary push button switch stands out from the competition with its exceptional quality and reliability. Here are some key advantages:
- Customizable Voltage: We can customize the switching voltage according to your specific requirements.
- Long Lifespan: With an electronic life of up to 10,000 cycles (momentary) and 50,000 cycles (mechanical), this switch ensures long-lasting performance.
- High IP Rating: The IP41 rating provides protection against dust and water, making it suitable for various environments.
- LED Indication: The built-in LED provides clear visual indication, enhancing user experience.
After-Sales Service
As a responsible factory and supplier, we offer comprehensive after-sales service. If you encounter any issues with our product, please don’t hesitate to contact us. We are committed to providing timely and effective solutions.
Wholesale and Bulk Orders
We welcome wholesale and bulk orders. As a factory, we can offer competitive prices and flexible MOQs to meet your business needs. Contact us today to discuss your requirements and get a quote.
|

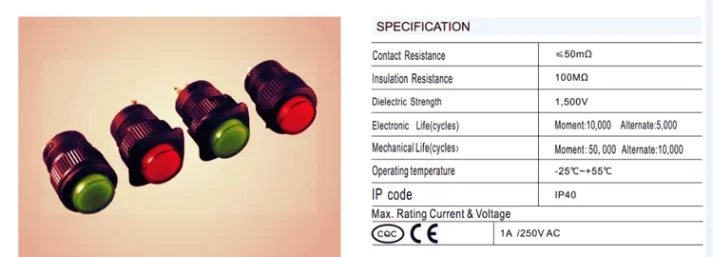

Contact resistance |
≤50mΩ |
|
Insulation resistance |
≥100MΩ |
|
Dielectric strength |
1500v |
|
Electronic life (cycles) |
Moment:10000 Alternate:5000 |
|
Mechanical life (cycles) |
Moment:50000 Alternate:100000 |
|
Operating temperature |
25T55 |
|
IP code |
IP40 |
|
Max.Rating Current&Voltage |
1A/250V AC |
|
Certification |
CQC, CE |
Why Choose Our 16mm LED Momentary Push Button Switch?
Our 16mm LED momentary push button switch is the perfect choice for your industrial control, electrical equipment, or home automation needs. With its high quality, long lifespan, and customizable voltage, it offers unmatched performance and reliability.
Key Features and Benefits
The switch features a momentary action, ensuring precise control. The built-in LED provides clear visual indication, enhancing user experience. Additionally, its high IP rating and durable construction make it suitable for various environments.
Factory Direct Supply and Wholesale
As a factory and supplier, we offer competitive prices and flexible MOQs for wholesale and bulk orders. Contact us today to discuss your requirements and get a quote. Choose our 16mm LED momentary push button switch for your next project!
