Description

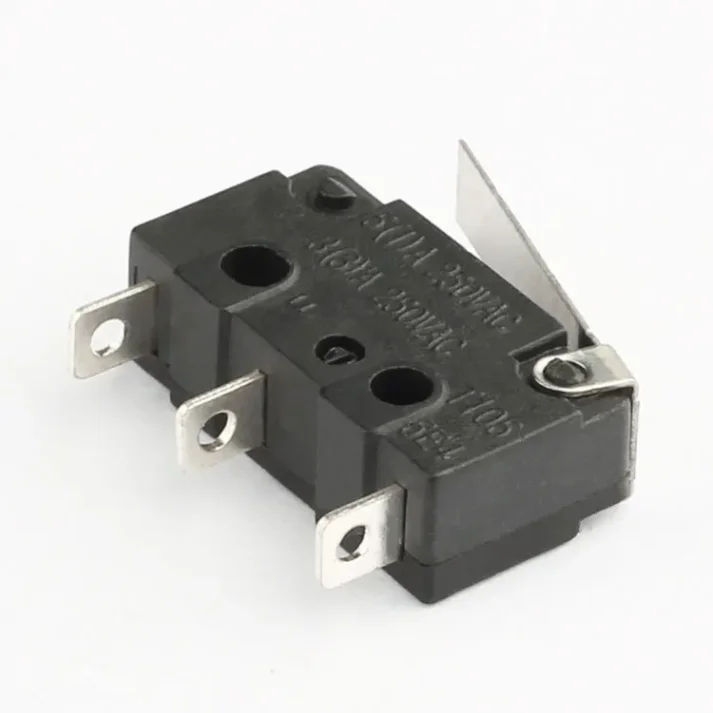

As a factory supplier, we offer high-quality 3A 250V micro switches suitable for various household applications. Our micro switches are available in black plastic, with a model number of KW11 and a brand name of Yongxing. These switches come with a maximum current rating of 3A/5A and a maximum voltage of 250VAC, ensuring reliable performance. The contact resistance is less than 50mΩ, and the insulation resistance exceeds 1000mΩ, providing excellent electrical properties. Our micro switches have a dielectric resistance of 1500V and an electronic life of 50,000 cycles, with a mechanical life of up to 100,000 times. They operate within a temperature range of -25℃ to 125℃ and come with IP40 and IP65 protection levels, making them suitable for various environments. What sets our micro switches apart is our factory’s ability to customize them according to your specific requirements. With over 60 senior engineers, independent plants, and advanced experimental equipment, we ensure top-notch quality and timely delivery. Whether you need a small quantity or a large wholesale order, we are here to meet your needs. Choose us for reliable, high-quality micro switches at competitive prices.
|
max.rating cnrrent&voltage
|
5A/3A 250VAC
|
||
|
contact resistance
|
<50mΩ
|
||
|
insulation resistance
|
>1000mΩ
|
||
|
dielectrice resistance
|
1500V
|
||
|
electronic life
|
50000
|
||
|
operating temperature
|
-25℃ TO 125℃
|
||
| IP code | IP40,IP65 |
Why Choose Our Micro Switch?
Our micro switch stands out for its high quality, reliability, and customizable options. As a factory supplier, we ensure competitive prices and timely delivery.
What Are the Key Features?
Key features include a 3A/5A current rating, 250VAC voltage, low contact resistance, high insulation resistance, and a wide operating temperature range.
Can We Customize the Switch?
Yes, we offer customization services to meet your specific requirements, ensuring the switch perfectly fits your application needs.
