Description

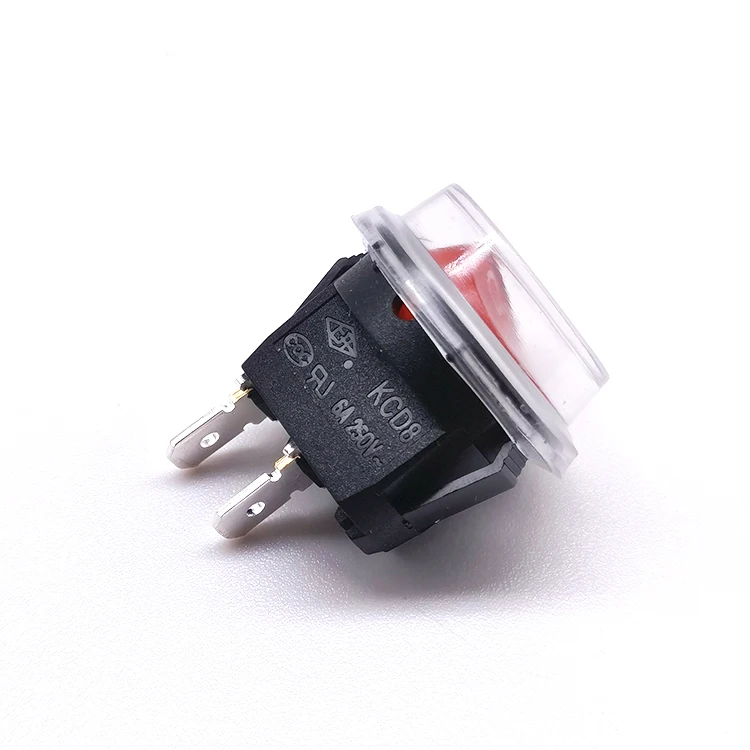

KCD8 3-Pin Backlit Rocker Switch – Factory Direct Wholesale Supplier
Introducing our premium KCD8 3-pin backlit rocker switch, a high-quality product designed for durability and performance. As a factory-direct wholesale supplier, we offer competitive prices and reliable quality.
Product Specifications:
- Model: KCD8
- Max. Current: 6A
- Max. Voltage: 250V AC
- IP Level: IP41, IP65
- Contact Resistance: ≤50mΩ
- Insulation Resistance: ≥1,000MΩ
- Electrical Life: 10,000 cycles
- Mechanical Life: 50,000-100,000 cycles
- Housing Color: Black
- LED Color: Amber, Orange, Red, Blue, Green
- Certifications: UL, CE, CQC, CB, ENEC, ROHS
Product Advantages:
Our KCD8 rocker switch stands out with its backlit design, making it easy to locate and operate in low-light conditions. The IP65 rating ensures protection against dust and water, making it suitable for a variety of environments. With a long mechanical life and high electrical durability, this switch is built to last.
Applications:
Ideal for use in electric fireplaces, industrial controls, automotive applications, and more. Its versatility and reliability make it a preferred choice for many industries.
After-Sales Service:
We provide comprehensive after-sales service, including technical support and warranty coverage. As a factory supplier, we are committed to ensuring your satisfaction with our products.
| Contact Resistance | ≤50mΩ rocker switches for electric fireplace |
| Insulation Resistance | ≥1,000MΩ |
| Dielectric Resistance | 1,500V AC , 1 min |
| Electronic life(cycles) | 10,000 cycles 4 pin on-off rocker switch |
| Operating Temperature | T55 rocker switch |
| Certification |
CQC , CE |
| Max. Rating Current & Voltage (CQC , CE) |
6A 250V AC |
Why Choose Our KCD8 Rocker Switch?
Our KCD8 rocker switch offers unmatched durability and performance. With its IP65 rating, it provides excellent protection against dust and water, making it ideal for use in harsh environments. The backlit design enhances visibility in low-light conditions, ensuring easy operation.
What Are the Key Features?
Key features include a long mechanical life of 50,000-100,000 cycles, high electrical durability with 10,000 cycles, and a variety of LED color options. The switch is also certified by UL, CE, CQC, CB, ENEC, and ROHS, ensuring compliance with international standards.
How Does It Compare to Other Switches?
Our KCD8 rocker switch stands out from the competition with its superior quality, competitive pricing, and comprehensive after-sales service. As a factory supplier, we can offer bulk discounts and customized solutions to meet your specific needs.
