Description

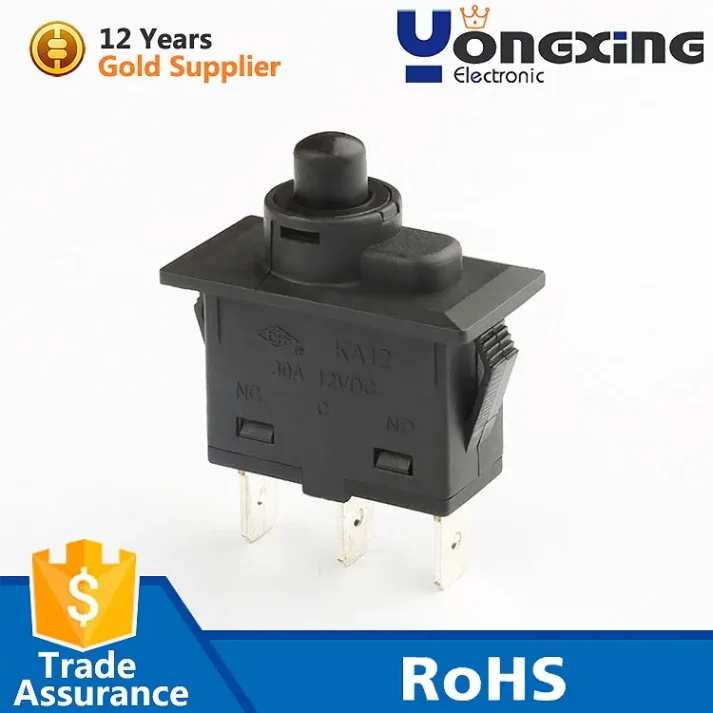

Premium Quality IP65 Refrigerator Door 30A 12VDC Push Button Switch
As a leading factory supplier, we offer wholesale prices on our high-quality push button switches designed specifically for refrigerator doors. Our switch boasts a robust 30A 12V DC rating, ensuring reliable performance in demanding environments.
Key Specifications
- Max. Rating Current & Voltage: 30A 12V DC
- Contact Resistance: ≤50MΩ
- Insulation Resistance: ≥100MΩ
- Dielectric Resistance: 1,000V 1min
- Electronic Life (cycles): 100,000
- Mechanical Life (cycles): 50,000
- Certification: ROHS, CQC CE
- Operating Temperature: -25℃~+55℃ (-13℉~+131℉)
- IP Code: IP65
Product Advantages
Our push button switch stands out from the competition with its exceptional durability and waterproof design. The IP65 rating ensures protection against dust and water, making it ideal for use in refrigerators and other harsh environments. The switch’s long electronic and mechanical life guarantees reliable operation over extended periods, reducing maintenance costs and downtime.
Applications
This switch is perfect for refrigerator doors, providing a convenient and reliable way to control lighting, alarms, or other functions. Its compact size (panel cut out 13x28mm) and SP-DT auto momentary action make it suitable for a wide range of applications.
After-Sales Service
We are committed to providing excellent after-sales service. Our team is available to assist with any questions or concerns you may have, ensuring a smooth and satisfying purchasing experience.
| Max. Rating Current & Voltage |
30A 12V DC |
| Contact Resistance | ≤50MΩ waterproof push button switch |
| Insulation Resistance | ≥100MΩ |
| Dielectric Resistance | 1,000V 1min |
| Electronic life(cycles) | 100,000 Refrigerator door switch |
| Mechanical life(cycles) | 50,000 |
| Certification |
ROHS |
| Operating temperature | -25℃~+55℃ |
| IP code | IP65 |
Why Choose Our IP65 Refrigerator Door Switch?
Our IP65 refrigerator door switch is designed to withstand the rigors of daily use in refrigerators and other demanding environments. With a 30A 12V DC rating, it provides reliable power control, ensuring your appliances operate smoothly.
Durable and Waterproof
The IP65 rating means our switch is protected against dust and water, making it ideal for use in refrigerators where moisture and condensation are common. This durability ensures a longer lifespan and reduced maintenance costs.
Versatile Applications
Whether you need to control lighting, alarms, or other functions in your refrigerator, our switch is up to the task. Its compact size and SP-DT auto momentary action make it suitable for a wide range of applications, providing you with the flexibility you need.
