Factory Wholesale KA Series Illuminated Waterproof Push Button Switch

200 - 1,999  pieces
$0.50

2,000 - 4,999  pieces
$0.47

>= 5,000  pieces
$0.43

0 reviews

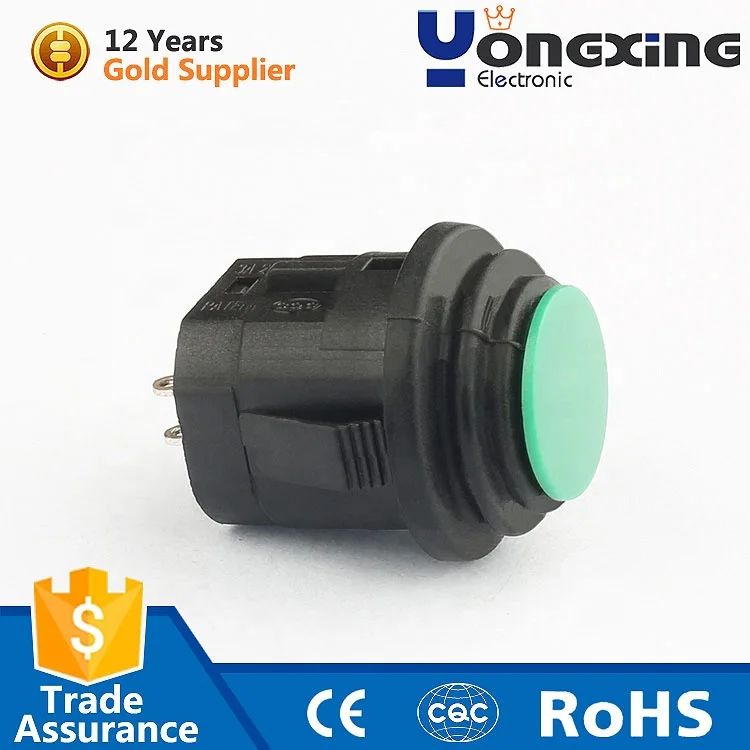

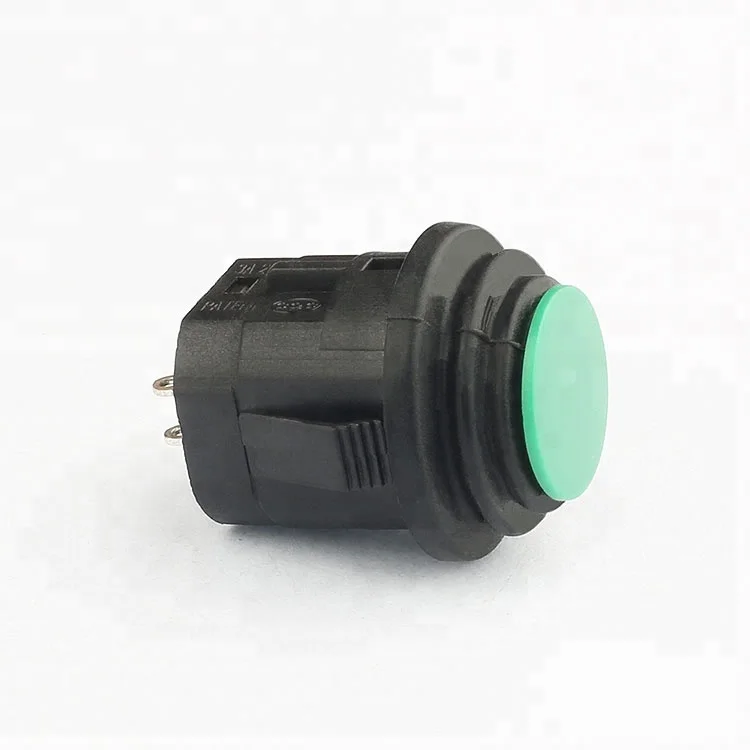

Factory Wholesale KA Series Waterproof Push Button Switch with Light

Description

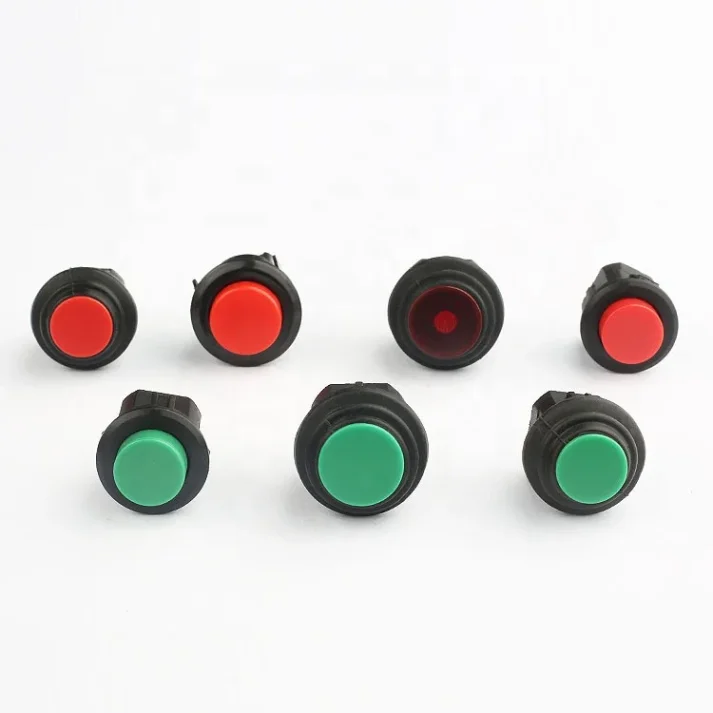

Our KA Series Illuminated Waterproof Push Button Switch is a high-quality product designed for electric appliances. As a factory supplier, we offer wholesale prices directly to you. This switch comes with a built-in light, making it easy to locate and operate in low-light conditions. It boasts an IP65 protection level, ensuring waterproof and dustproof performance, suitable for various harsh environments. The switch is available in multiple colors including Red, Yellow, Green, Blue, and White, allowing you to choose the one that best matches your application. Made of durable plastic material, it guarantees long-lasting use. With a contact resistance of ≤50mΩ, dielectric strength of 1500V, and operating temperature range of -25℃ to 85℃, it meets high standards of safety and reliability. Additionally, it supports 1NO1NC or 2NO2NC switch combinations, with a maximum rating of 3A 250V AC. Certified by CQC and CE, it ensures quality and compliance. We offer competitive wholesale prices, excellent after-sales service, and fast delivery. Choose us as your reliable supplier for all your push button switch needs.
contact resistance
≤50MΩ
mechanical life(cycles)
50000
insulation resistance
≥100MΩ
electronic life(cycles)
10000
dielectric strength
1500V
operating temperature
25T85
IP code
IP65
max.rating current & voltage
3A 250V AC

Electronic component device for cross-border e-commerceElectronic device product image for e-commerce


Why Choose Our KA Series Push Button Switch?

Our KA Series Push Button Switch stands out for its illuminated design, making it easy to find and operate in the dark. The waterproof and dustproof IP65 rating ensures it can withstand harsh environments, perfect for outdoor or industrial use. With multiple color options, it adds a touch of style to your applications.

What Are the Key Features?

The switch is made of high-quality plastic, ensuring durability and longevity. It has a low contact resistance, high dielectric strength, and a wide operating temperature range, making it safe and reliable. Additionally, it supports various switch combinations to meet different needs.

Why Buy from Us?

As a factory supplier, we offer wholesale prices directly, cutting out the middleman. We provide excellent after-sales service and fast delivery, ensuring you get the best value for your money. Choose us for all your push button switch needs.

Push Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch Customized

Additional information

Max. Current

3A

Max. Voltage

250V

Place of Origin

Shanghai, China

Brand Name

Yong Xing

Model Number

KA7-11FN

LED

NO

Whether the smart

NO

IP level

IP65

Switch Combination

1NO1NC, 2NO2NC

Product name

Push Button Switch

Color

Red Yellow Green Blue White

Material

plastic

Contact Resistance

≤50mΩ

Dielectric Strength

1500V

Operating temperature

-25 ~85℃

Certification

CQC,CE

Protection Level

IP65
