Description
|
Certification
|
||
|
CQC CE
|
T85 AC 250v 16(4)A
|
|
|
UL
|
AC 125/250v 16R(4)A
AC 125v 1HP
|
|
|
CB ENEC17
|
T125 AC 250v 16(4)A / 10(4)A
T85 AC 250v 16(4)A
AC 250v 16A
|
|
|
Specification
|
||||||||
|
Contact Resistance
|
≤50mΩ
|
|||||||
|
Insulation Resistence
|
≥1000MΩ
|
|||||||
|
Dielectric Strength
|
AC 1500v,1min
|
|||||||
|
Operating Temperation
|
T55,T85,T125
|
|||||||
|
Electrical Life
|
10000
|
|||||||
|
How To Order
|
||||||||
|
Switch Details
|
series number -circuit code -actuator,housing,termination -housing color,actuator color -marking -lamp voltage
|
|||||||
|
Packing
|
||||||||
|
Plastic Box
|
First in plastic box , then in export carton,quantity varies according to switch size.
|
|||||||
|
Plastic Bag
|
Normally 100 pieces in one plastic bag, then in export carton, quantity varies according to switch size.
|
|||||||
|
Lead Time
|
||||||||
|
Quantity(Pieces)
|
1 – 3000
|
>3000
|
||||||
|
Est. Time(days)
|
30
|
To be negotiated
|
||||||
|
Shipping
|
||||||||
|
Port
|
Shanghai
|
|||||||

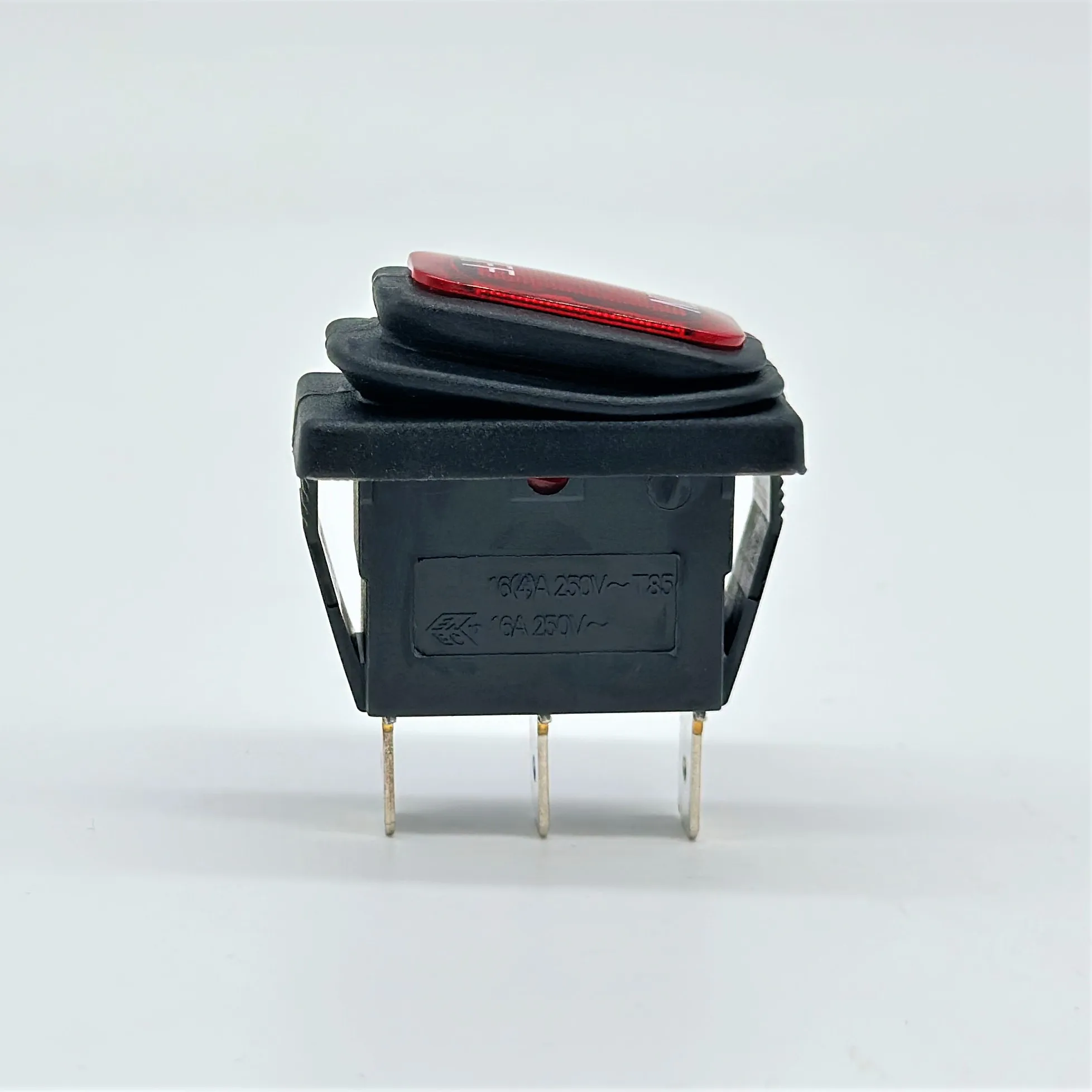

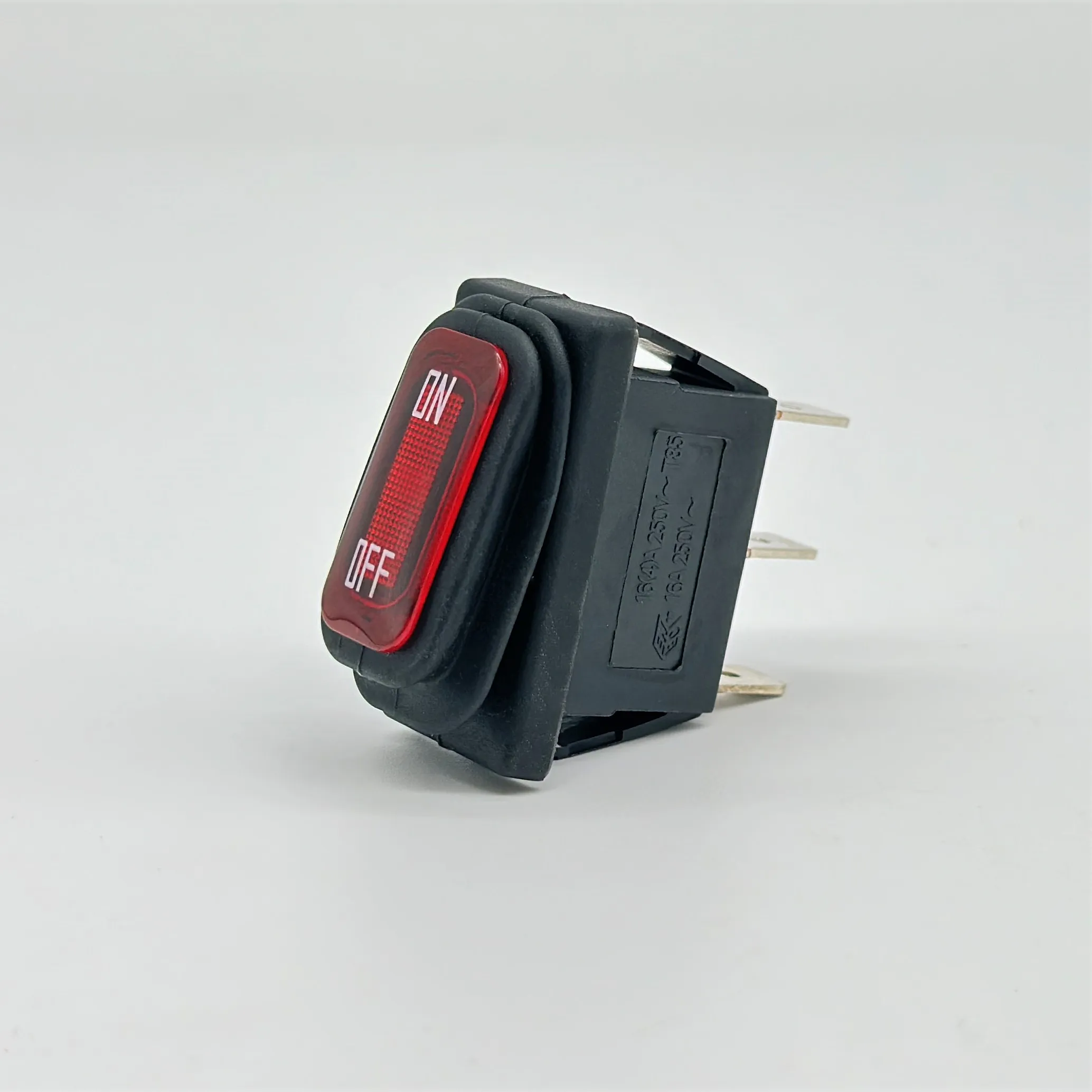

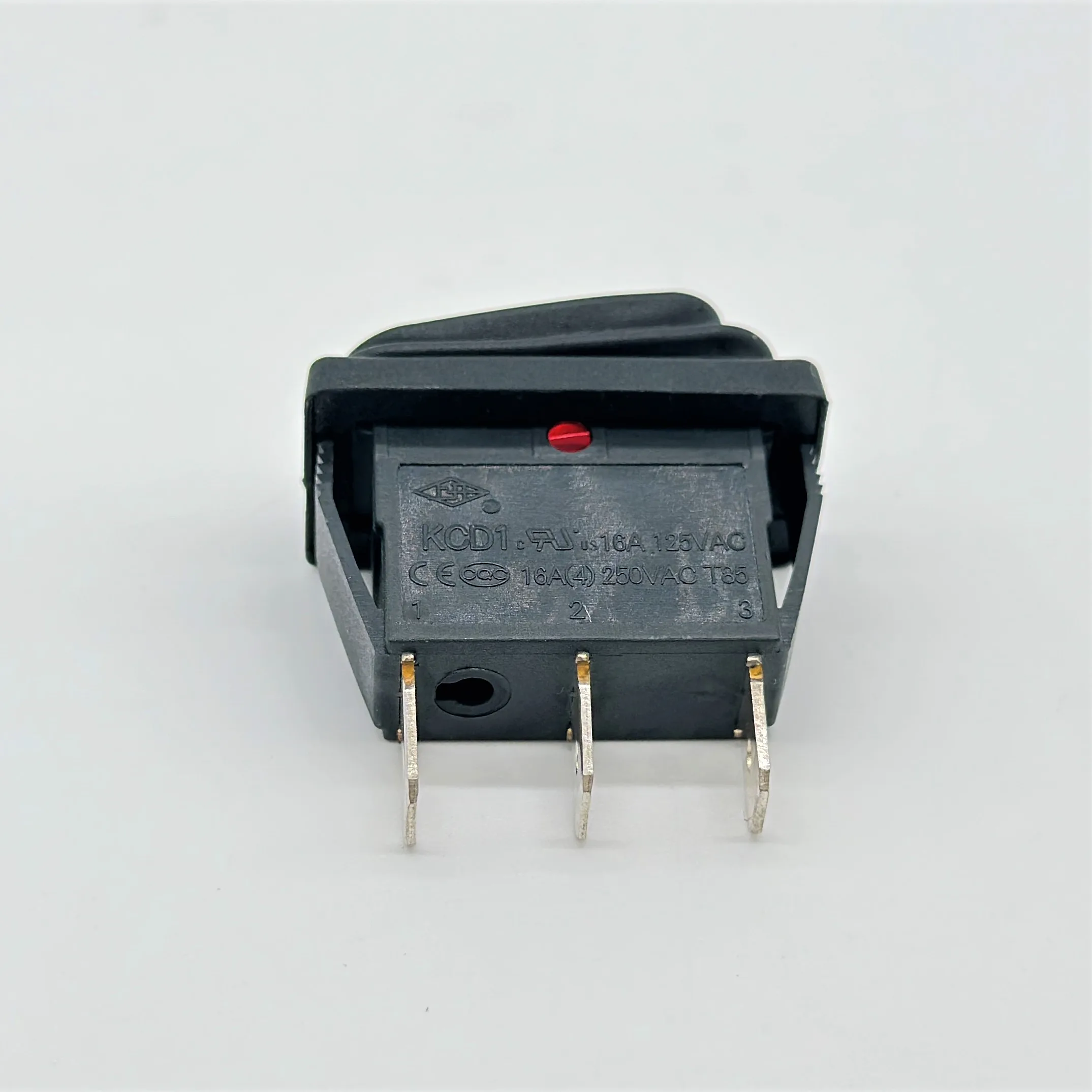

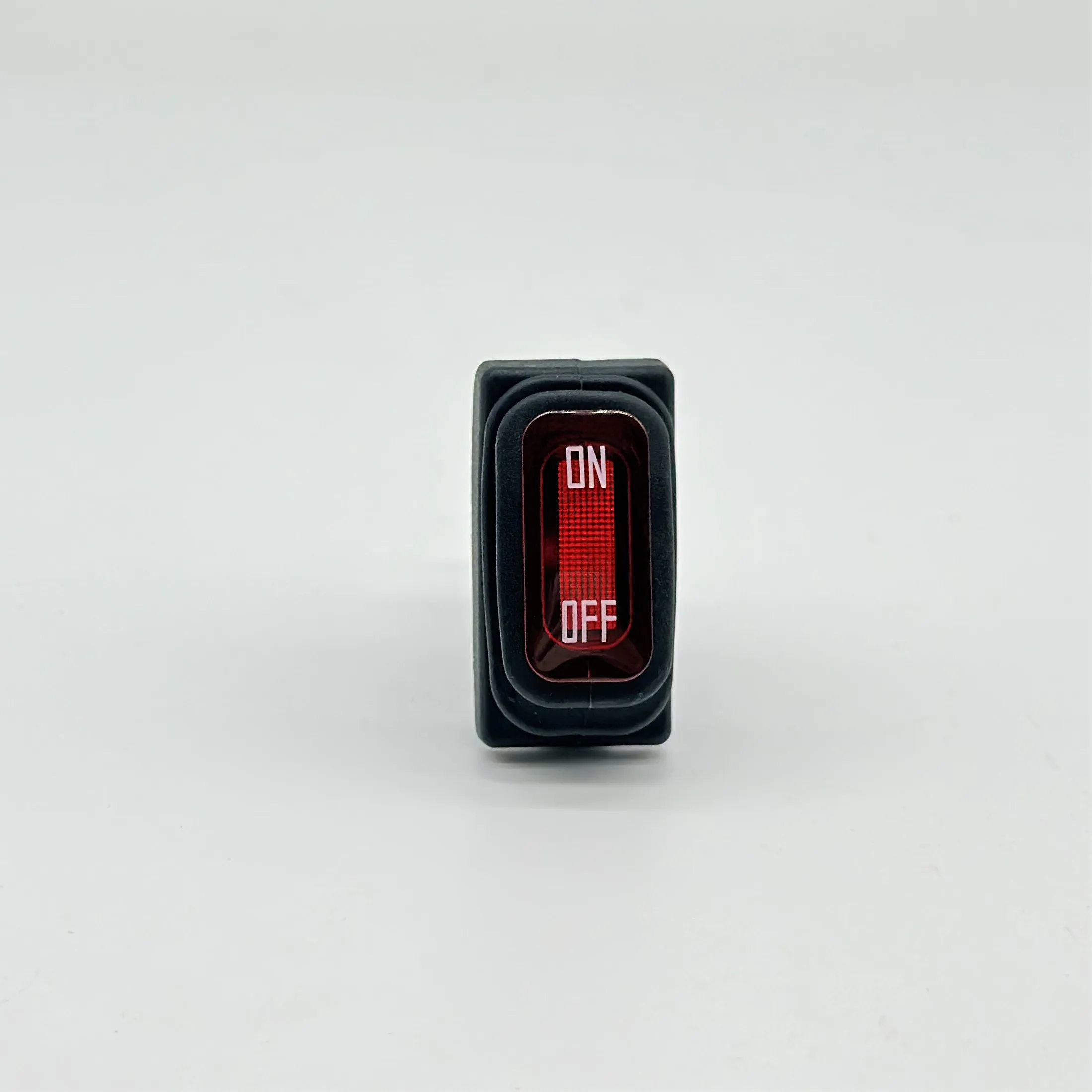

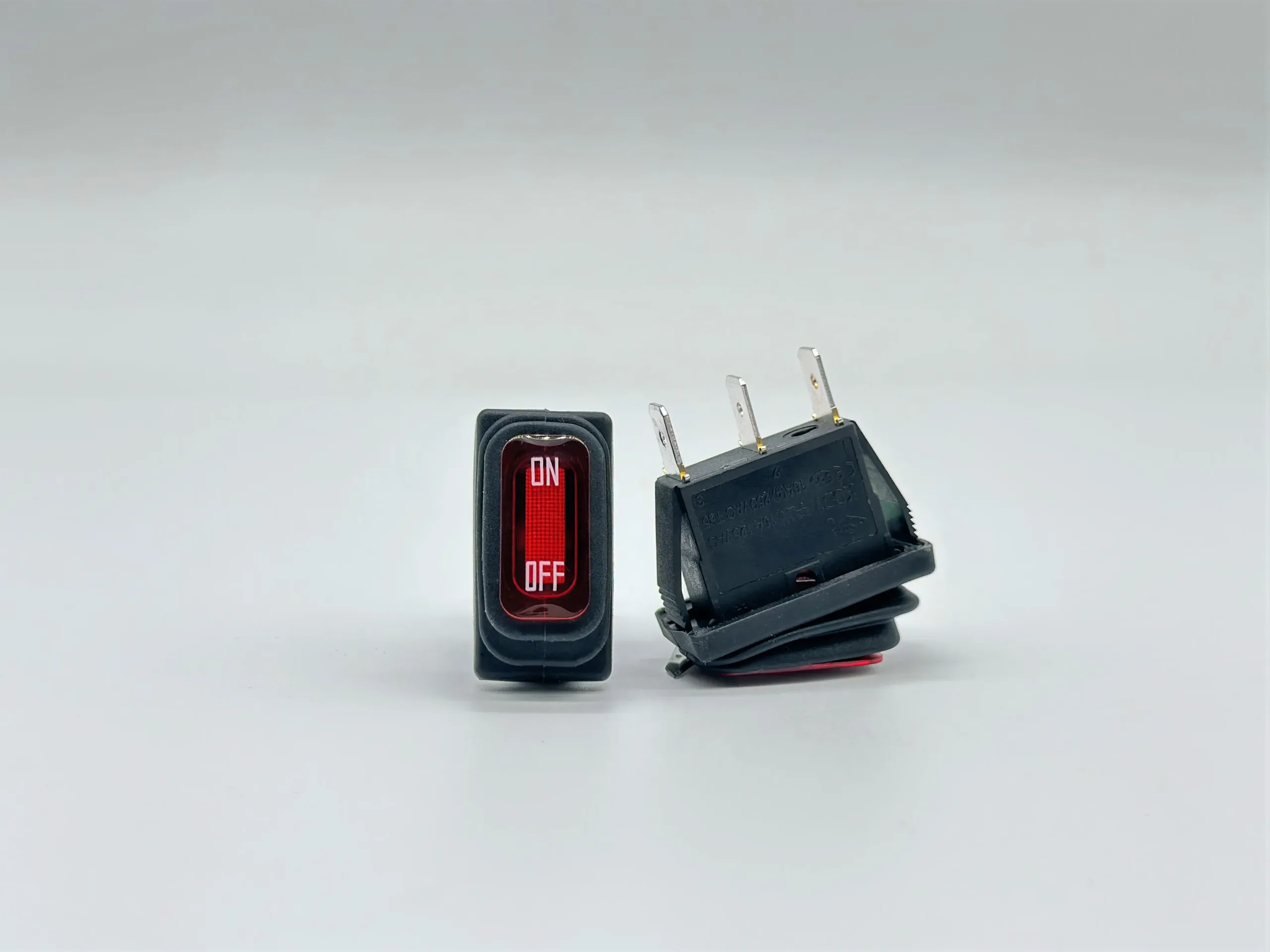

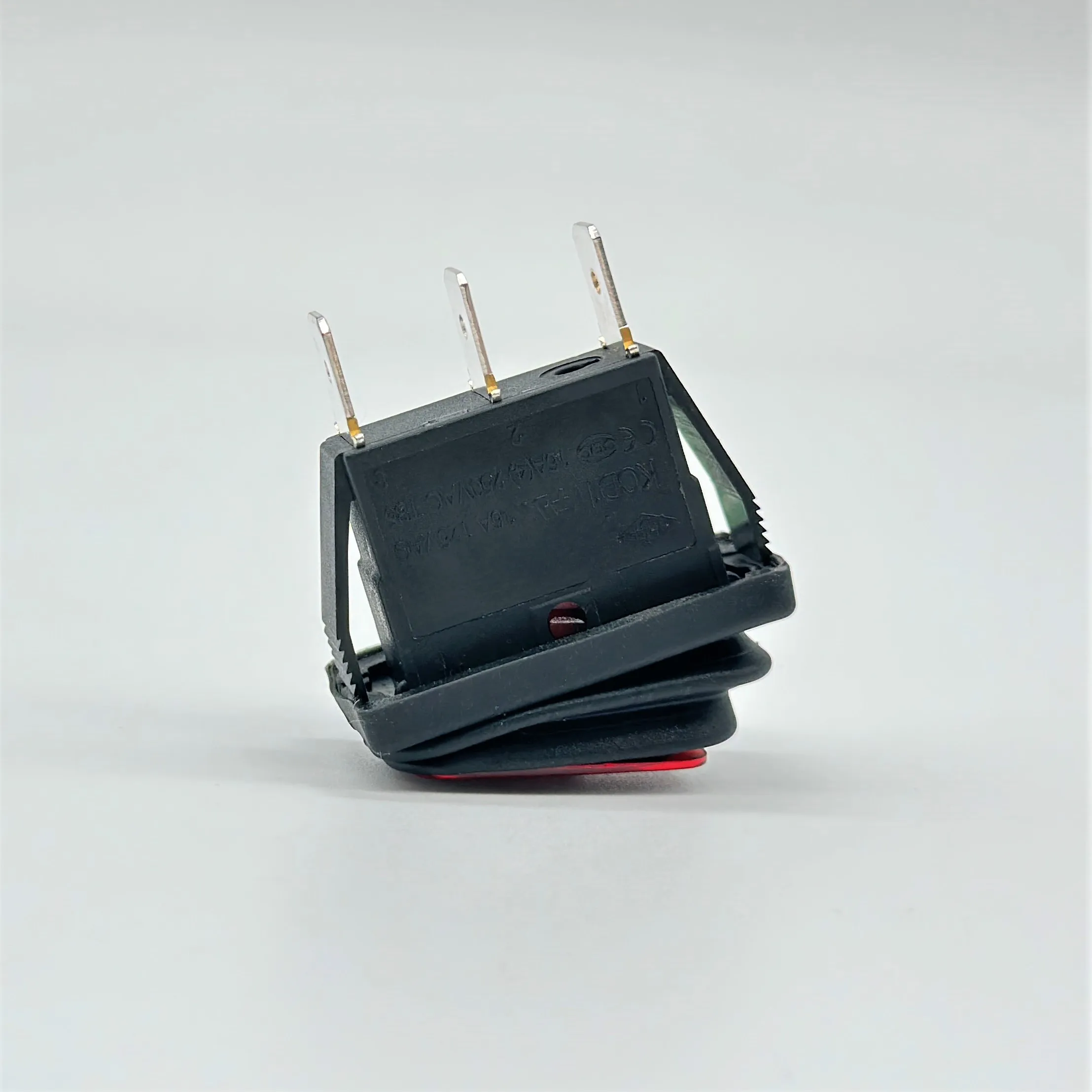

Why Choose Our KCD1 LED Rocker Switch?
Our KCD1 LED illuminated rocker switch stands out for its durability, reliability, and value. As a factory supplier and wholesaler, we offer competitive pricing without sacrificing quality. With CQC, CE, and ROHS certifications, you can trust that our switch meets the highest safety standards. Its 16A max current and 250VAC max voltage make it suitable for a wide range of applications, from home appliances to engine start buttons.
What Are the Key Features?
Key features include a 3-position switch action, LED illumination for easy visibility in low-light conditions, and an impressive electrical life of 10,000 cycles. The switch also boasts a contact resistance of ≤50mΩ, insulation resistance of ≥1000MΩ, and dielectric strength of 1500VAC for 1 minute, ensuring reliable performance under various conditions.
How Does It Compare to Other Switches?
Compared to other switches on the market, our KCD1 LED rocker switch offers superior value and performance. Its factory-direct pricing means you get high-quality components at a lower cost. Additionally, the switch's sleek design and robust construction make it a durable and attractive choice for any application. Choose our KCD1 switch for a reliable, cost-effective solution to your electrical needs.
