Description
Key Features:
– **Max. Rating**: 16A 250V
– **Mechanical Life**: 100,000 cycles
– **Electric Life**: 10,000 cycles
– **Certification**: CQC CE
– **Insulation Resistance**: 100M Min
– **Dielectric Strength**: 1500VAC 1MIN
– **Contact Resistance**: 50m Max
As a supplier, we offer customization services for bulk orders, ensuring the switch meets your specific requirements. Our factory is equipped with independent plants, injection workshops, and advanced experimental equipment, staffed by over 60 senior engineers. All workshops adhere to 5S and 5M management standards, guaranteeing top-notch quality and reliability. Choose us for your wholesale needs and experience the difference in quality and service.
|
KCD1-11N-CA4A-B-G-01
|
||
|
Max.Rating Current&Voltage：
|
16A 250V
|
|
|
Circuit：
|
SPST ON OFF
|
|
|
electronic life：
|
10,000 cycles
|
|
|
Actuator color：
|
Green
|
|
|
Housing color：
|
Black
|
|

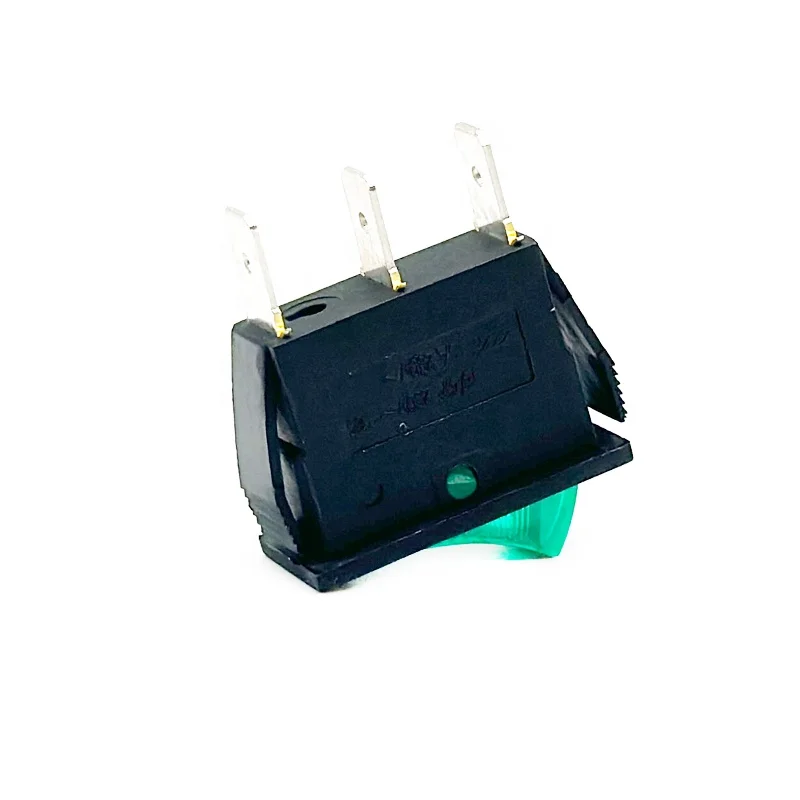

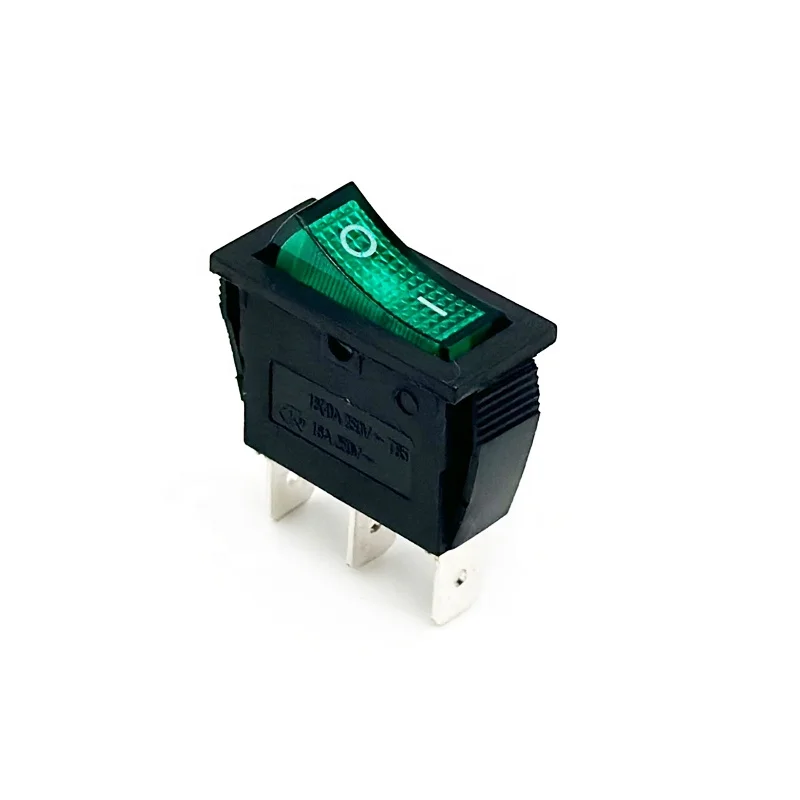

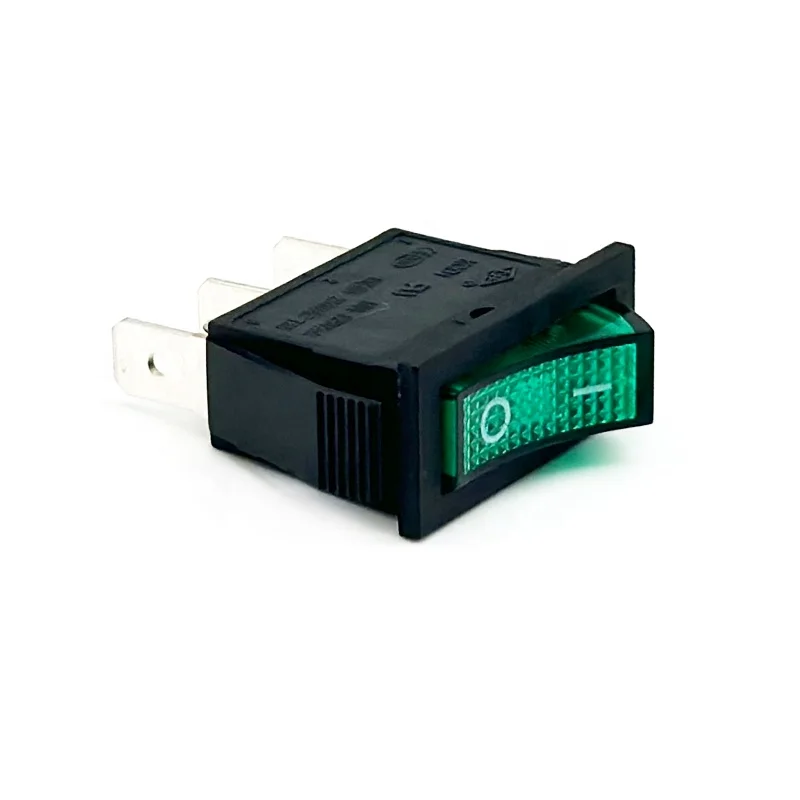

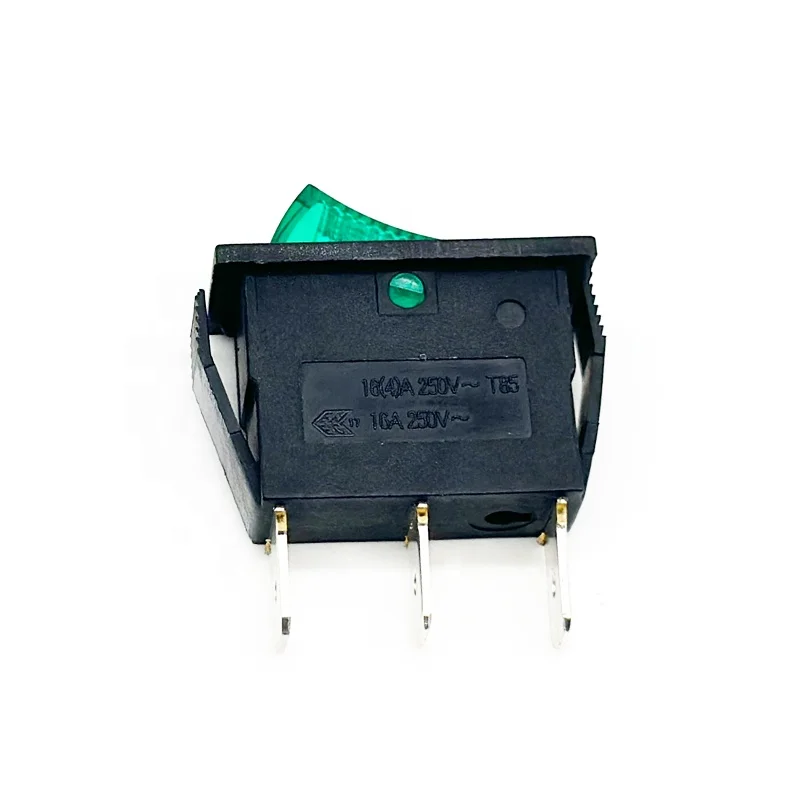

Why Choose Our KCD1 Green Illuminated Rocker Switch?
Our KCD1 Green Illuminated Rocker Switch stands out with its high-quality PA66/PC materials, ensuring durability and longevity. With a maximum rating of 16A 250V, it's suitable for a wide range of electrical applications. The green illuminated actuator not only adds a visual appeal but also indicates the switch's status, making it user-friendly.
What Makes Our Switch Different?
Unlike other switches on the market, our KCD1 switch offers a mechanical life of 100,000 cycles and an electric life of 10,000 cycles, ensuring reliable performance over time. Additionally, as a factory supplier, we offer customization services for bulk orders, allowing you to tailor the switch to your specific needs.
How Can We Support Your Wholesale Needs?
Our factory is equipped with state-of-the-art facilities and a team of experienced engineers, ensuring top-notch quality and quick turnaround times. We adhere to strict management standards, guaranteeing consistency and reliability in every product we deliver. Choose us for your wholesale needs and experience the difference in quality, service, and customization options.
