Description
Specifications:
- Max. Current: 16A
- Max. Voltage: 250V AC
- Material: PA66
- Pins: 6P
- Mechanical Life: 100,000 Cycles
- IP Level: IP40
- Colors Available: Red, Yellow, Green, Blue, White
- Certifications: CQC, CE, CB, UL, ENEC
Advantages:
- Durable PA66 material ensures long-lasting performance.
- High mechanical life of 100,000 cycles for reliable operation.

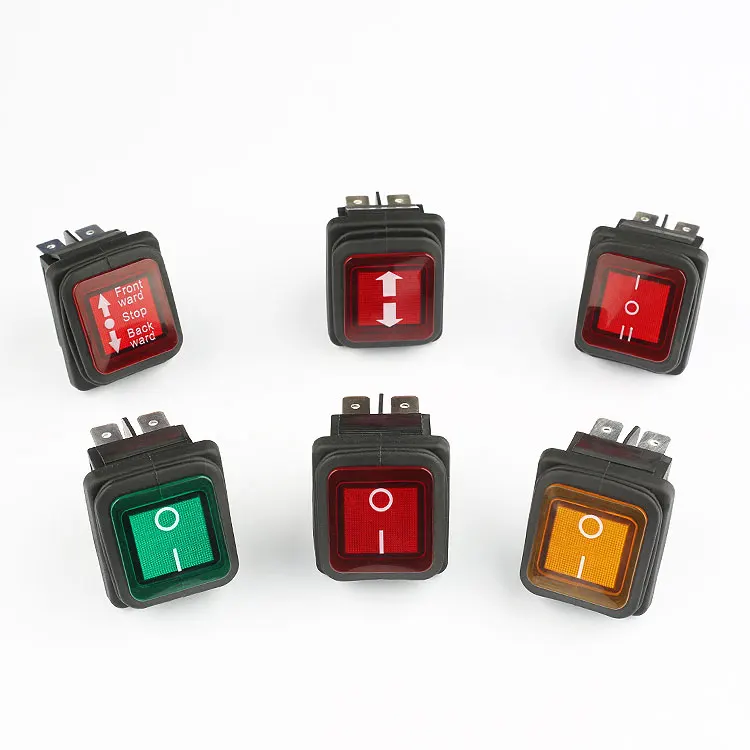

- Multiple color options to suit different application needs.
- Compliant with international safety standards (CQC, CE, CB, UL, ENEC).
After-Sales Service: We provide comprehensive after-sales support, including technical assistance and warranty services, ensuring peace of mind for our customers.
|
contact resistance
|
≤50MΩ
|
operating temperature
|
T55 T85 T125
|
|
insulation resistance
|
≥1000MΩ
|
electronic life（cycles）
|
10000
|
|
dielectric strength
|
1500V AC 1min
|
max.rating current & voltage
|
16(4)A 250V AC
|
Why Choose Our KCD2 Rocker Switch?
Our KCD2 Rocker Switch stands out for its durability, high mechanical life, and compliance with international safety standards. Made from premium PA66 material, it ensures reliable performance in various applications, from home appliances to off-road vehicles.
Key Features and Benefits
With a max current of 16A and max voltage of 250V AC, this switch is designed to handle demanding tasks. Its illuminated design enhances visibility, while the double pole configuration provides added safety. The long mechanical life of 100,000 cycles ensures longevity and reduces maintenance costs.
Applications and Versatility
Perfect for a wide range of applications, including cars, industrial equipment, buses, marine environments, and off-road vehicles. Available in multiple colors, it can be customized to match your specific needs. As a factory direct supplier, we offer wholesale pricing, making it an excellent choice for bulk purchases.
