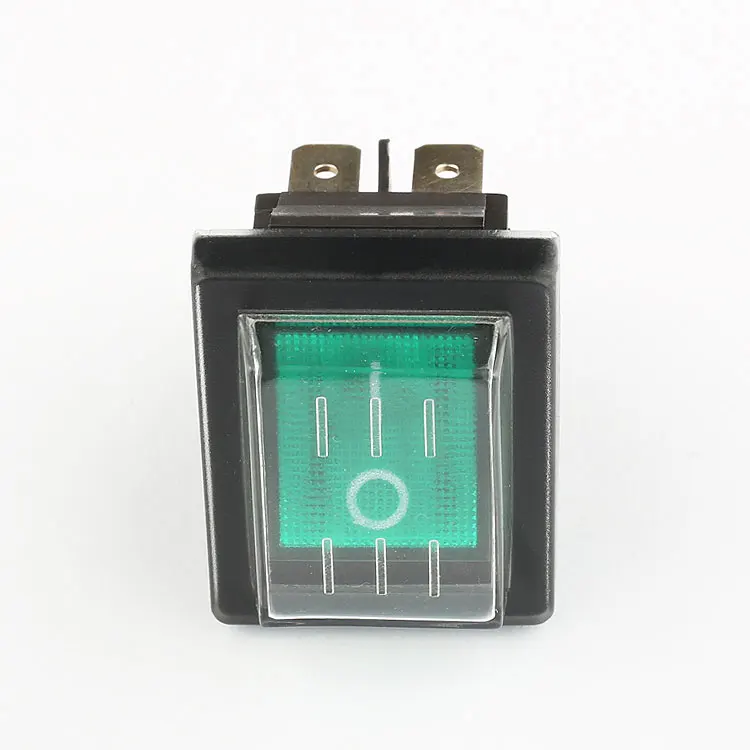

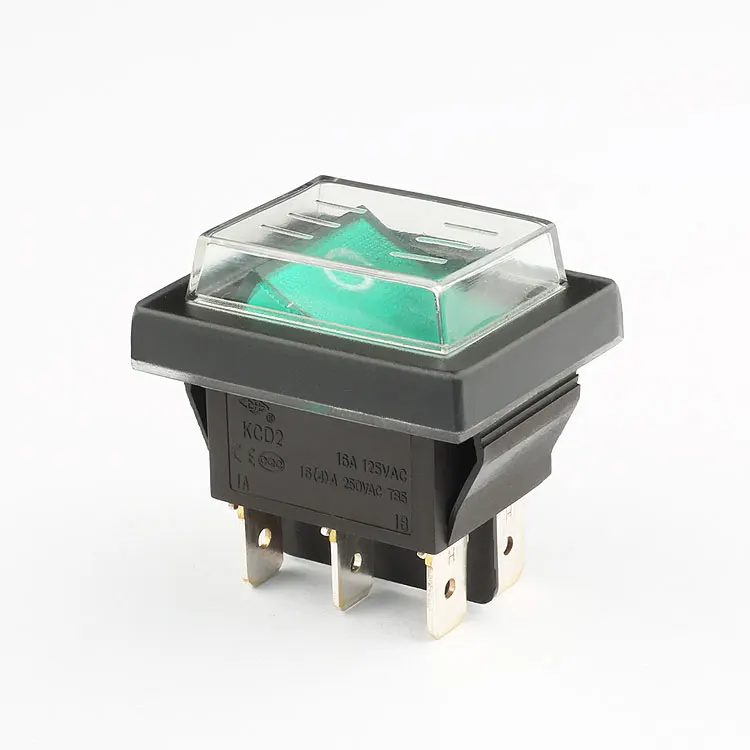

Factory Wholesale KCD2 DPDT Illuminated Waterproof Rocker Switch Supplier

Name: Factory Wholesale KCD2 DPDT Illuminated Waterproof Rocker Switch Supplier
SKU: 73501
Availability: InStock

Category: KCD2 series Rocker Switch Tags: DPDT Rocker Switch, Factory Wholesale, Waterproof Switch

200 - 1,999 pieces
$0.79

2,000 - 4,999 pieces
$0.72

>= 5,000 pieces
$0.64

Rated 0 out of 5

0 reviews

Factory Wholesale KCD2 DPDT Waterproof Rocker Switch Supplier – Durable, Reliable, and Safe.

Description
Specification

Description

Our KCD2 DPDT Illuminated Rocker Switch with a Waterproof Cover is a high-quality electronic switch designed for various applications. As a factory and direct supplier, we offer wholesale pricing on this reliable product. It features a durable plastic construction with a black housing, ensuring longevity and aesthetic appeal. The switch has a maximum current of 16A and a maximum voltage of 250VAC, making it suitable for cars, industrial equipment, marine vessels, buses, and off-road vehicles. With an IP65 rating, it provides excellent protection against dust and water ingress. The switch offers a mechanical life of 100,000 times and an electrical life of 10,000 cycles, ensuring reliability under frequent use. It also boasts low contact resistance (≤50mΩ), high insulation resistance (≥1000MΩ), and a dielectric strength of 1500V AC for 1 minute, guaranteeing safety and performance. Additionally, our switch includes 6P pins and 6.3×0.8 mm standard terminals for easy installation. Choose our factory-direct, wholesale-priced switch for unbeatable value and quality.

contact resistance	≤50MΩ	operating temperature	T55 T85 T125
insulation resistance	≥1000MΩ	electronic life（cycles）	10000
dielectric strength	1500V AC 1min	IP code	IP65

Why Choose Our KCD2 DPDT Illuminated Waterproof Rocker Switch?

Our KCD2 DPDT Illuminated Waterproof Rocker Switch stands out for its durability, reliability, and safety. With a factory-direct, wholesale pricing model, we offer unbeatable value. The switch's IP65 rating ensures it can withstand harsh environments, making it ideal for marine, industrial, and automotive applications. Its low contact resistance and high insulation resistance guarantee optimal performance and safety.

What Are the Key Features of Our Switch?

Key features include a maximum current of 16A, a maximum voltage of 250VAC, and a mechanical life of 100,000 times. The switch also features an illuminated design for easy visibility in low-light conditions and 6P pins with 6.3x0.8 mm standard terminals for straightforward installation.

What Applications Is Our Switch Suitable For?

Our switch is perfect for cars, industrial equipment, marine vessels, buses, off-road vehicles, and electric equipment. Its waterproof cover and robust construction make it a reliable choice for any application requiring a durable and safe switch.

Additional information

Max. Current	16A
Max. Voltage	250VAC
Place of Origin	Shanghai, China
Brand Name	Yong Xing
Model Number	KCD2-22N-F
Application	Cars, Industrial, MARINE, BUSES, electric equipment, off-road vehicles
Material	plastic

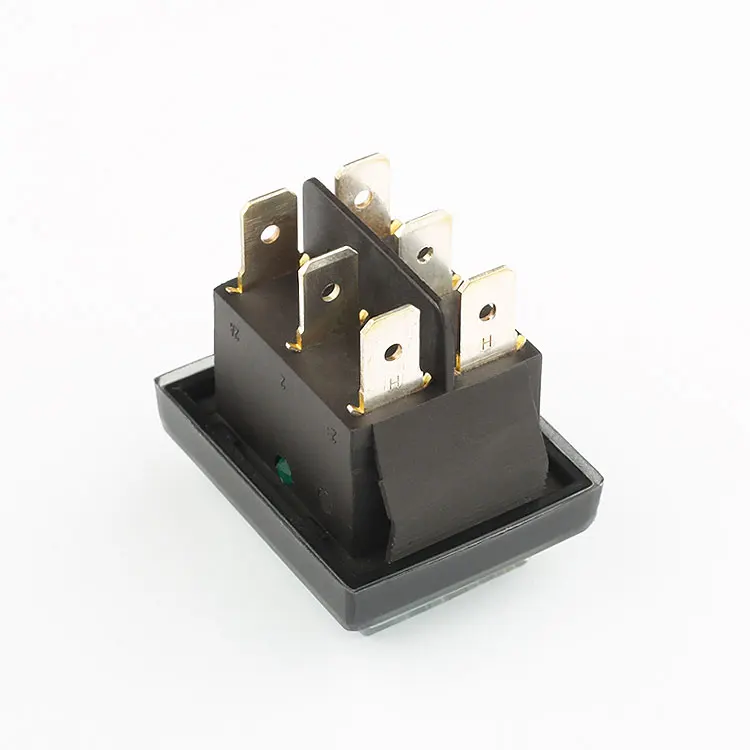

Pins	6P
Whether the smart	NO
Mechanical Life	100000 times
IP level	IP65
Products Name	DPDT 6 Terminals Marine Rocker Switch with Waterproof Cover
Current	16A
Terminals	6.3×0.8 Mm Standard
Contact Resistance	≤50mΩ
Dielectric Strength	1500V AC 1min
Color	Black housing
Operating temperature	T55,T85,T125
Mechanical life	10000
Certification	CQC
