Description
|
contact resistance
|
≤50MΩ
|
operating temperature
|
T55 T85 T125
|
|
insulation resistance
|
≥1000MΩ
|
electronic life（cycles）
|
10000
|
|
dielectric strength
|
1500V AC 1min
|
IP code
|
IP40
|

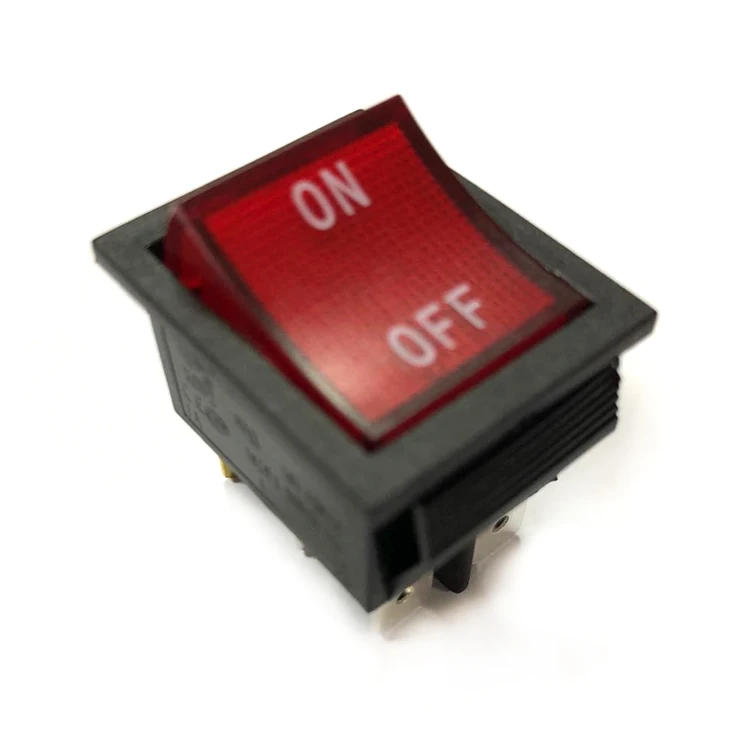

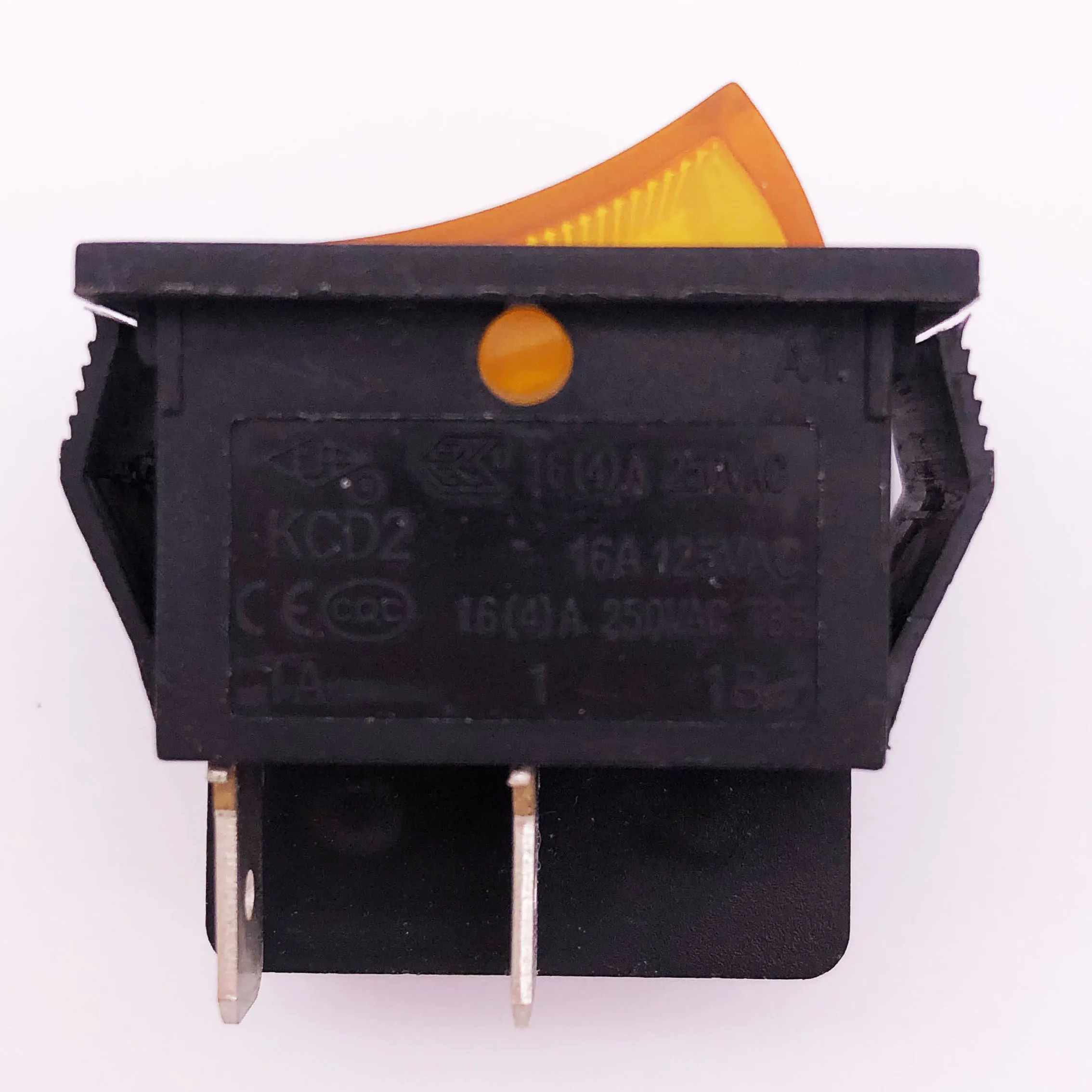

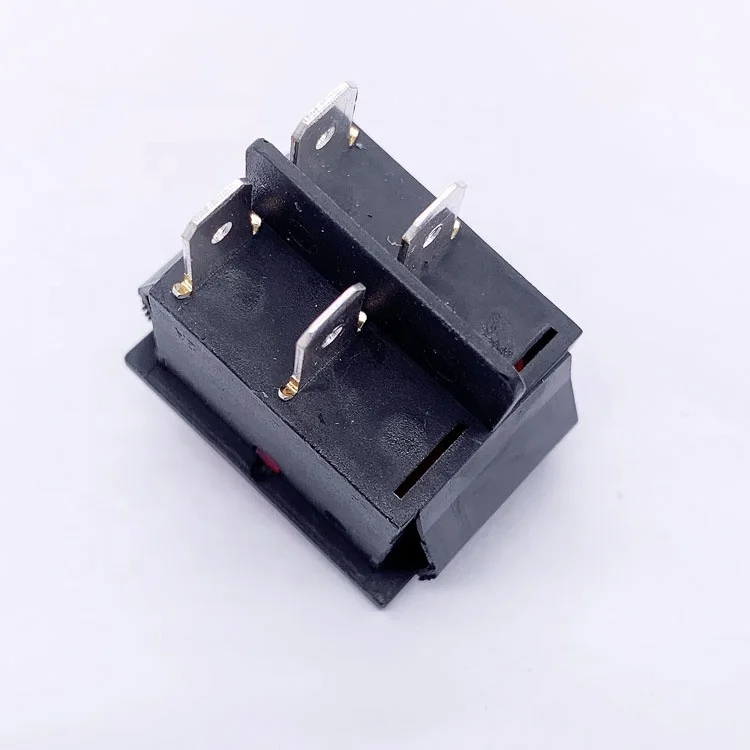

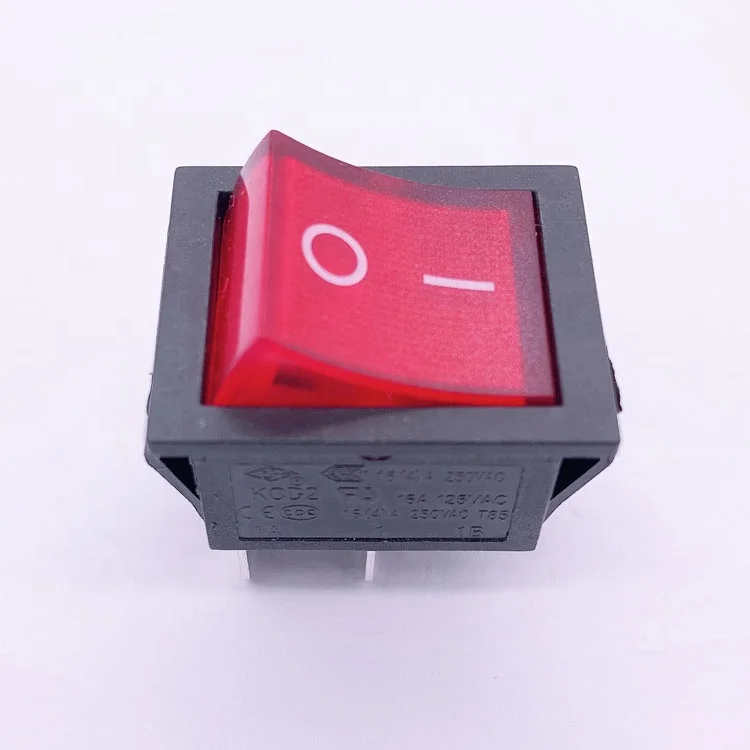

Why Choose Our KCD2 DPST ON-OFF Rocker Switch?
Our KCD2 DPST ON-OFF Rocker Switch stands out from the competition with its robust PA66 material housing, ensuring durability and longevity. The red LED indicator provides clear visibility of the switch's status, making it ideal for various applications. With a maximum current of 16A and a maximum voltage of 250V, it can handle high-power applications with ease. As a factory direct supplier, we offer competitive wholesale prices, making it a cost-effective choice for your business.
What Are the Key Features of This Switch?
This switch features a DPST ON-OFF function, allowing for precise control of your electrical devices. It has a mechanical life of 100,000 cycles and an electrical life of 10,000 cycles, ensuring reliable performance over time. The IP41 rating provides protection against dust and water ingress, making it suitable for various environments. Additionally, the switch has a contact resistance of ≤50mΩ and an insulation resistance of ≥1000MΩ, ensuring safe and efficient operation.
What Are the Applications of This Switch?
Our KCD2 DPST ON-OFF Rocker Switch is versatile and can be used in a wide range of applications, including cars, industrial equipment, electric devices, marine use, buses, and off-road vehicles. Its robust construction and reliable performance make it an ideal choice for any application requiring a high-quality switch.
