Description
|
item
|
value
|
|
Place of Origin
|
Shanghai, China
|
|
Brand Name
|
SK(shangkai) Yongxing
|
|
Model Number
|
KCD3-13-CB1B-B-B-112
|
|
Current Rating
|
10(3)A
|
|
Voltage Rating
|
250V AC
|
|
Mechanical Life
|
50000 Cycles
|
|
Contact Resistance
|
≤50mΩ
|
|
Insulation Resistance
|
≥1000MΩ
|
|
Dielectric Strength
|
1500VAC 1 Minute
|
|
Electronic Life (cycles)
|
10,000
|
|
Certificate
|
CB ENEC17 ROHS
|
|
Circuit
|
SPTT
|
|
Dimension Code
|
B1 (21.4x15x15.2 , 19.3×13.2×12.9)
|
|
Contact Piece Code
|
B (8 length, 4.8×0.8 standard)
|
|
Actuator Color
|
Red,Yellow,Green,Black,Blue,Orange,White,Gray
|
|
Switch Function
|
On Off On
|
Why Choose Our KCD3 Rocker Switch?

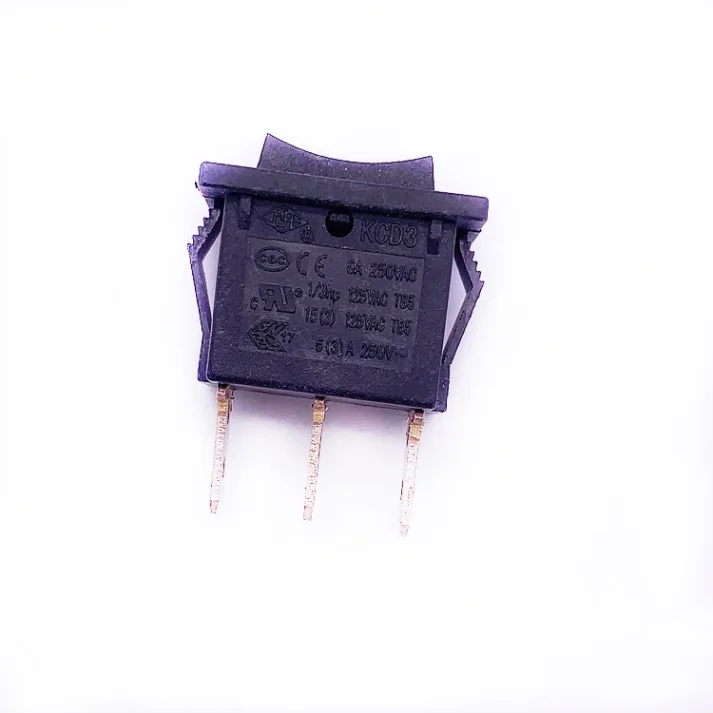

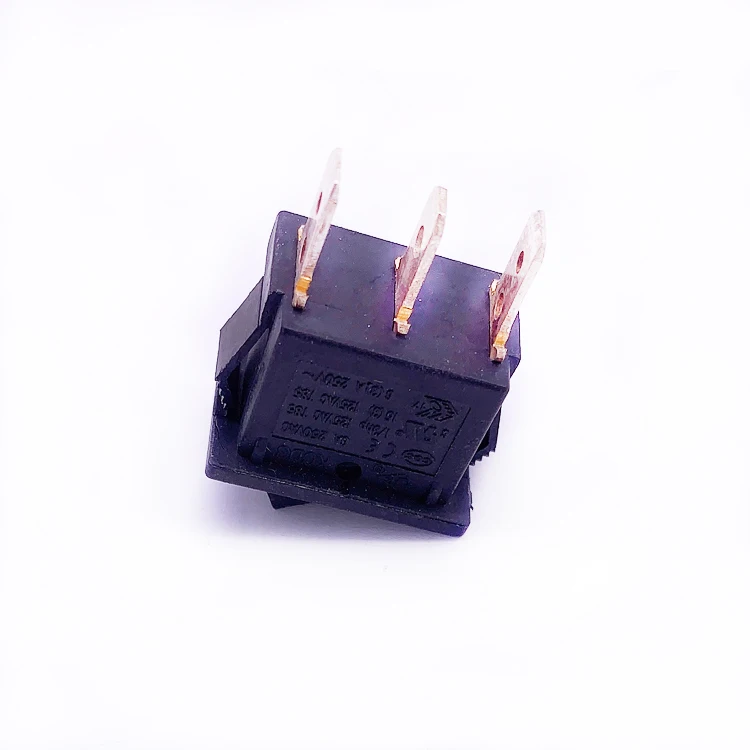

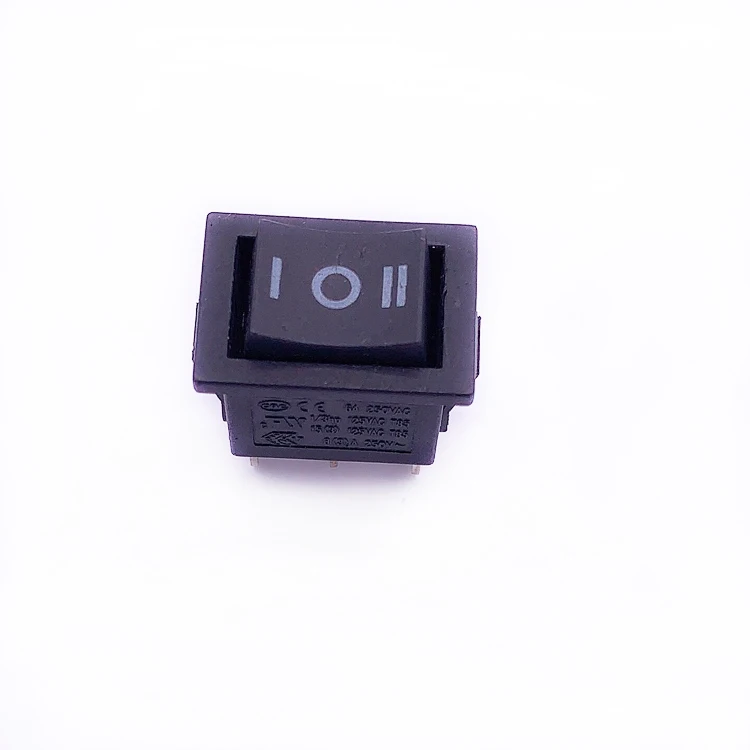

Our KCD3 15x21mm Mini 3-Pin On-Off-On Rocker Switch stands out for its durability, versatility, and customization options. With a mechanical life of 50,000 cycles and an electronic life of 10,000 cycles, it's built to last in demanding environments. The switch is available in multiple colors, allowing you to match your project's aesthetics. Plus, as a factory-direct supplier, we offer wholesale pricing, making it a cost-effective choice for bulk purchases.
What Are the Key Features?
Key features include a 10(3)A current rating, 250V AC voltage rating, and CB ENEC17 ROHS certification for safety and compliance. The compact dimension code of B1 (21.4x15x15.2 , 19.3x13.2x12.9) and contact piece code of B (8 length, 4.8x0.8 standard) ensure it fits seamlessly into your designs. The On-Off-On switching function provides versatile control options.
Where Can It Be Used?
This rocker switch is ideal for a wide range of applications, including electrical control, appliance switching, industrial applications, and custom projects. Its durability and customization options make it a versatile choice for any project requiring reliable switching functionality.
