Description
|
item
|
value
|
|
Place of Origin
|
Shanghai, China
|
|
Brand Name
|
SK(shangkai) Yongxing
|
|
Model Number
|
KCD3-11-CB1B-B-W-01
|
|
Current Rating
|
10(3)A
|
|
Voltage Rating
|
250V AC
|
|
Mechanical Life
|
50000 Cycles
|
|
Contact Resistance
|
≤50mΩ
|
|
Insulation Resistance
|
≥1000MΩ
|
|
Dielectric Strength
|
1500VAC 1 Minute
|
|
Electronic Life (cycles)
|
10,000
|
|
Certificate
|
CB ENEC17 ROHS
|
|
Circuit
|
SPST
|
|
Dimension Code
|
B1 ( 21.4x15x15.2 , 19.3×13.2×12.9)
|
|
Contact Piece Code
|
B (8 length, 4.8×0.8 standard)
|
|
Actuator Color
|
Red,Yellow,Green,Black,Blue,Orange,White,Gray
|
|
Switch Function
|
On Off
|

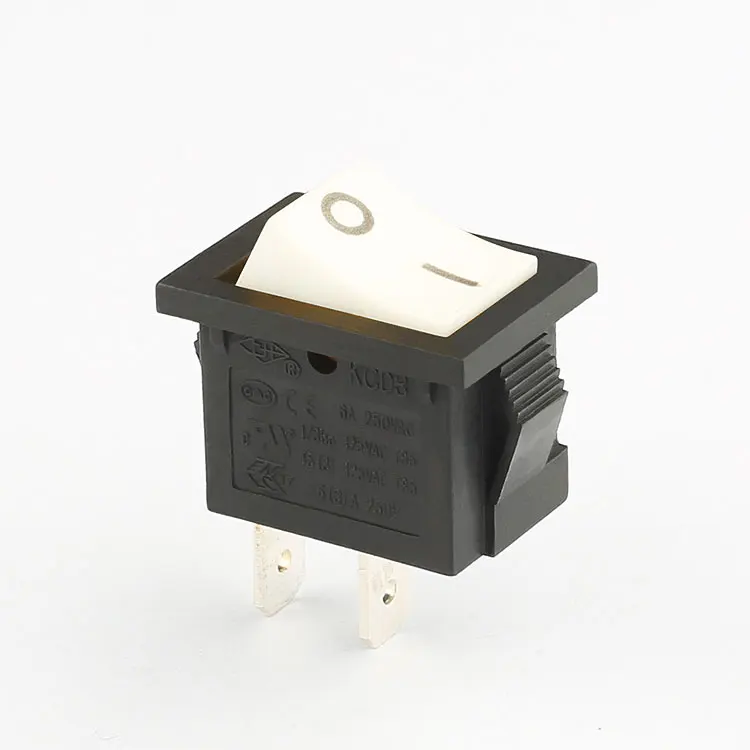

Why Choose Our KCD3 Rocker Switch?
Our KCD3 Rocker Switch is engineered for excellence, offering a long mechanical life of 50,000 cycles and an electronic life of 10,000 cycles, ensuring durability and reliability in various applications. With a current rating of 10(3)A and a voltage rating of 250V AC, it's suitable for a wide range of electrical devices. The switch is certified with CB ENEC17 and ROHS, guaranteeing high quality and safety standards.
What Makes Our Switch Stand Out?
Our switch features low contact resistance (≤50mΩ) and high insulation resistance (≥1000MΩ), providing superior performance. It's available in multiple colors, allowing you to match it with different device designs. As a factory and supplier, we offer wholesale pricing and bulk order discounts, making it an affordable choice for businesses.
How Can We Support You?
We provide dedicated after-sales service to ensure your satisfaction. Whether you have questions about the product or need assistance with installation, our team is here to help. Choose our KCD3 Rocker Switch for a reliable, cost-effective solution that meets your needs.
