Description
| Contact Resistance | ≤50mΩ On-Off Rocker Switch |
| Insulation Resistance | ≥1,000MΩ |
| Dielectric Resistance | 1,500V AC , 1 min |
| Electronic life(cycles) | 10,000 cycles , Micro Switches |
| Mechanical life(cycles) | 50,000 – 100,000 cycles |
| Certification |
CQC , CE , ENEC |
| Max. Rating Current & Voltage (CQC , CE) |
10(3)A 250V AC T85 6(3)A 250V AC T85 |
| Max. Rating Current & Voltage (UL) |
15R(3)A 125V AC , 10R(3)A 250V AC 1/3HP 125V AC |
| Max. Rating Current & Voltage (CB , ENEC) |
10(3)A 250V AC T105,6(3)A 250V AC T105 6A 250V AC ,4A 250V AC T105 |

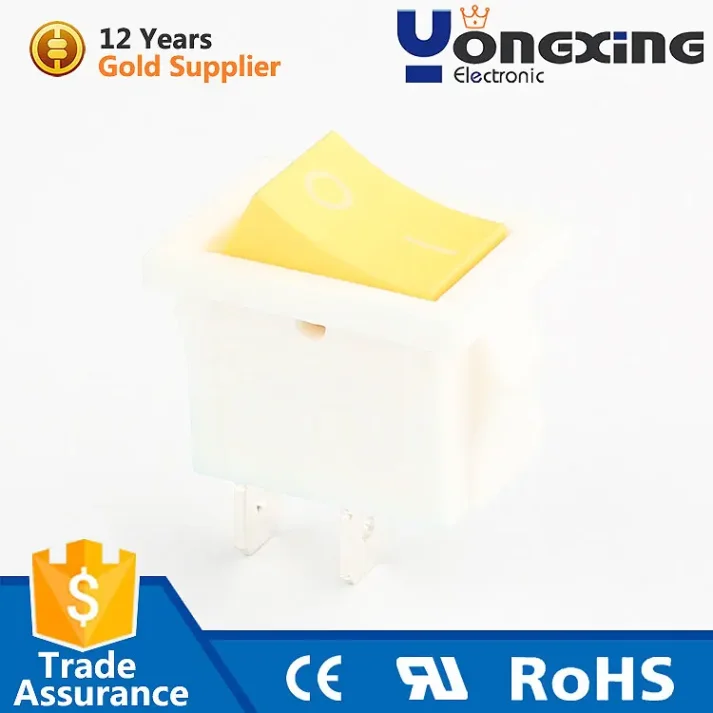

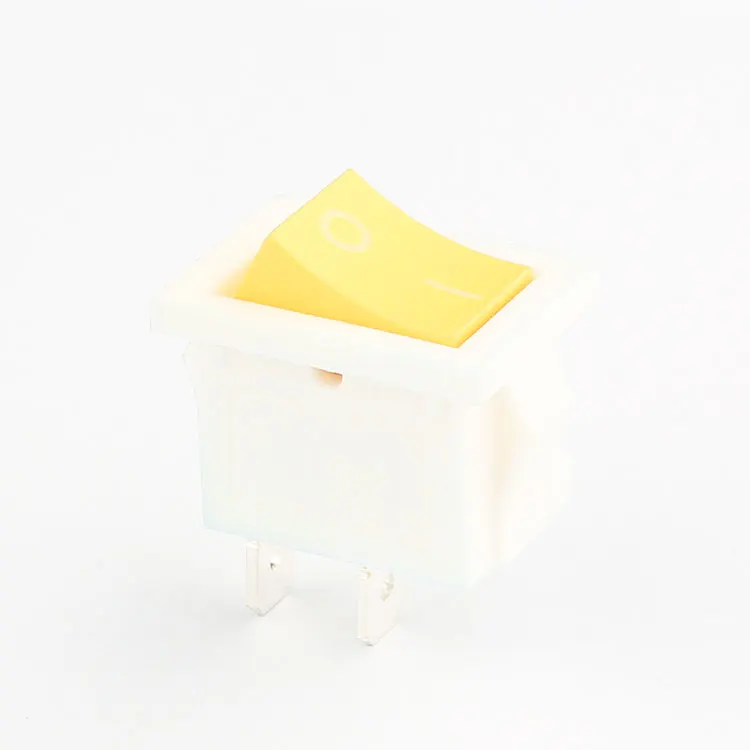

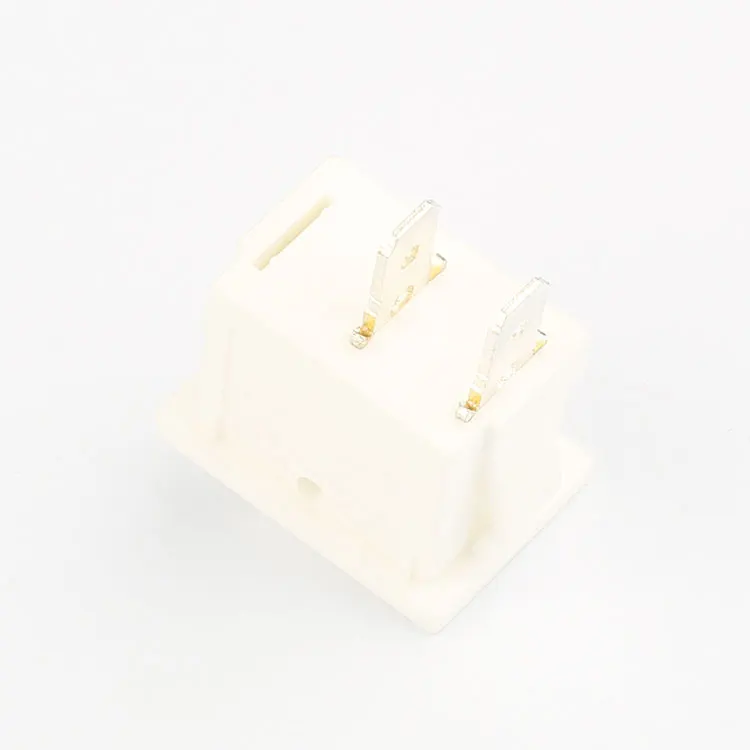

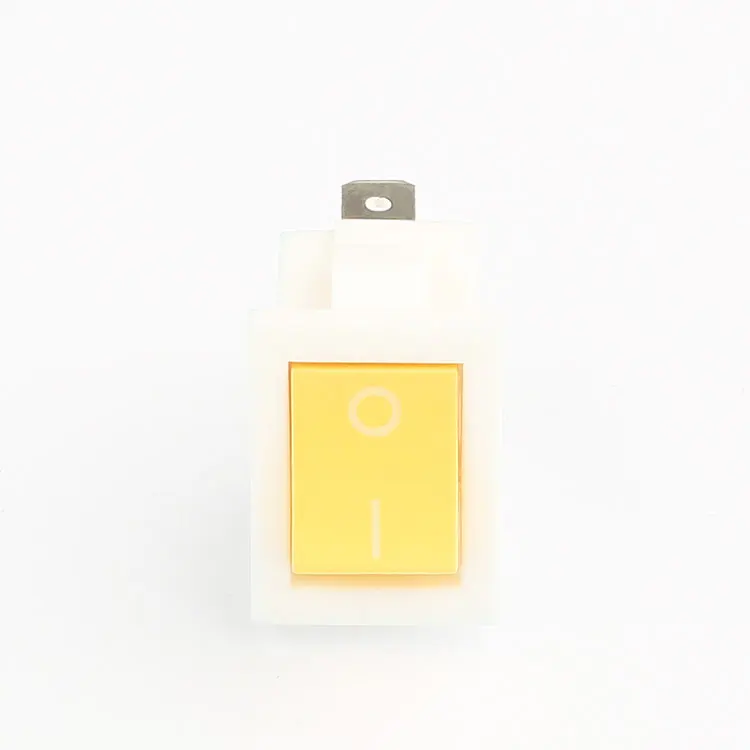

Why Choose Our KCD3 Rocker Switch?
Our KCD3 Rocker Switch stands out with its high-quality construction, offering a mechanical life of 100,000 cycles and an electronic life of 10,000 cycles. This ensures long-lasting performance and reliability, making it ideal for various applications such as electrical appliances, industrial equipment, home automation, and control panels.
What Are the Key Features?
The switch supports ratings of 6A/10A at 250V AC, with a contact resistance of ≤50mΩ and insulation resistance of ≥1000MΩ. It also meets dielectric strength requirements of 1500V AC for 1 minute, ensuring safety and compliance with international standards (CQC, CE, UL, ENEC).
How Does It Benefit You?
As a factory supplier offering wholesale pricing, we provide cost-effective solutions without compromising on quality. The white housing adds a modern aesthetic, while the switch's durability and reliability reduce maintenance costs and downtime. Choose us for a product that combines performance, safety, and value.
