Description
Key Features:
– **Model**: KCD3
– **Circuit**: SPST (Single Pole Single Throw)
– **Max. Current**: 10(3) A
– **Max. Voltage**: 250V AC
– **Mechanical Life**: 50,000 Cycles
– **Contact Resistance**: ≤50mΩ
– **Insulation Resistance**: ≥1000MΩ
– **Dielectric Strength**: 1500VAC for 1 Minute
– **Operating Temperature**: T85
– **Certificate**: CQC, CE, ROHS
– **Dimension Code**: B1 (21.4x15mm)
– **Contact Piece Code**: B (4.8×0.8mm standard)
– **LED Voltage**: 24V

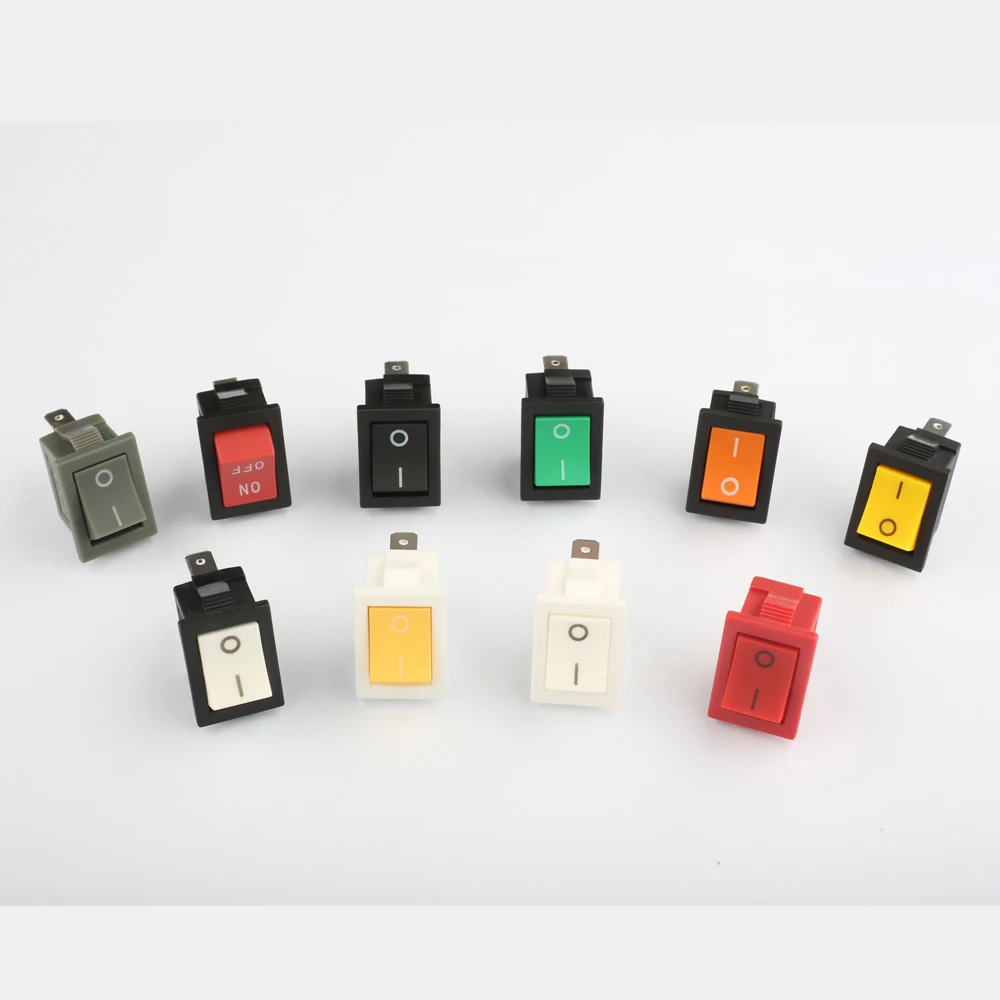

– **Colors Available**: Red, Yellow, Green, Black, Blue, Orange, White, Gray
– **Function**: On/Off Control with LED Indication

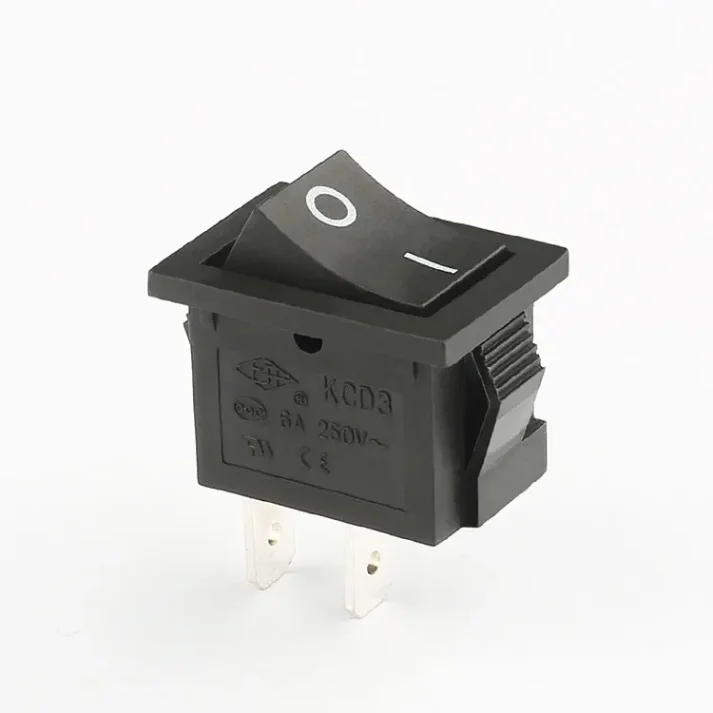

Our KCD3 Rocker Switch stands out with its durable construction, long mechanical life, and bright LED indicator. It’s perfect for use in boats, automotive applications, industrial machinery, and more. As a trusted supplier, we ensure high-quality standards and competitive pricing for bulk orders.
**Why Choose Us?**
– Factory Direct Pricing
– Wholesale Availability
– High-Quality Certifications
– Durable and Reliable
– Wide Range of Colors
Don’t miss out on this essential electrical component. Contact us today for wholesale inquiries and enjoy the benefits of dealing directly with a factory supplier.
|
item
|
value
|
|
Place of Origin
|
Shanghai, China
|
|
Brand Name
|
SK(shangkai) Yongxing
|
|
Model Number
|
KCD1
|
|
Max. Current
|
10(3) A
|
|
Max. Voltage
|
250V AC
|
|
Mechanical Life
|
50000 Cycles
|
|
Contact Resistance
|
≤50mΩ
|
|
Insulation Resistance
|
≥1000MΩ
|
|
Dielectric Strength
|
1500VAC 1 Minute
|
|
Operating Temperature
|
T85
|
|
Certificate
|
CQC CE ROHS
|
|
Circuit
|
SPST
|
|
Dimension Code
|
A1(27.6*10.6mm)
|
|
LED
|
24V
|
|
Color
|
Red,Yellow,Green,Black,Blue,Orange,White,Gray
|
|
Function
|
On Off
|
Key Features and Benefits
Our KCD3 SPST Rocker Switch with LED Light is designed for durability and reliability. With a long mechanical life of 50,000 cycles, it ensures consistent performance over time. The bright LED indicator provides clear visual feedback, making it ideal for applications where quick identification of switch status is crucial.
Why Choose Our Switch?
As a factory supplier, we offer competitive wholesale pricing without compromising on quality. Our switch is certified with CQC, CE, and ROHS, ensuring it meets international safety standards. The wide range of color options allows for customization to match your specific application needs.
Applications and Suitability
This switch is perfect for use in boats, automotive dashboards, industrial control panels, and more. Its robust construction and reliable performance make it a top choice for professionals seeking a high-quality electrical component. Contact us today to learn more about our wholesale options and how we can meet your needs.
