Description
Product Specifications:
- Model: KCD3-11N-FB1B-B-G-01
- Brand: SK(Shangkai)
- Max. Current: 6A
- Max. Voltage: 250V AC
- Circuit Description: SPST
- Contact Resistance: ≤50mΩ
- Insulation Resistance: ≥1000MΩ
- Dielectric Strength: 1500V AC, 1min
- Electronic Life: 10,000 cycles
- Mechanical Life: 100,000 cycles
- Operating Temperature: T55, T105
- IP Rating: IP65
- Certification: CQC, CE, UL, ENEC, CB
- Color: Black
Product Advantages:
- High Quality: Manufactured with precision and durability in mind, our switch ensures reliable performance.
- Waterproof Design: With an IP65 rating, it’s perfect for use in wet or damp environments.
- Illuminated Function: The built-in illumination makes it easy to locate and operate in low-light conditions.
- Long Lifespan: Both electronic and mechanical life cycles are designed to withstand heavy use.
Applications: Ideal for automotive, marine, industrial, and home appliances where a waterproof and illuminated switch is required.
After-Sales Service: We stand behind our products with excellent customer service and support. Should you have any questions or concerns, our team is ready to assist.
Choose us as your trusted supplier and enjoy the benefits of factory-direct pricing and top-notch quality.
| Contact Resistance | ≤50mΩ Waterproof Rocker Switch |
| Insulation Resistance | ≥1,000MΩ Sealed Rocker Switch |
| Dielectric Resistance | 1,500V AC , 1 min |
| Electronic life(cycles) | 10,000 cycles , 3 Pin Waterproof |
| Mechanical life(cycles) | 50,000 – 100,000 cycles |
| Certification |
CQC , CE , UL , ENEC |
| Max. Rating Current & Voltage (CQC , CE) |
10(3)A 250V AC T85 6(3)A 250V AC T85 |
| Max. Rating Current & Voltage (UL) |
15R(3)A 125V AC , 10R(3)A 250V AC 1/3HP 125V AC |
| Max. Rating Current & Voltage (CB , ENEC) |
10(3)A 250V AC T105,6(3)A 250V AC T105 6A 250V AC ,4A 250V AC T105 |

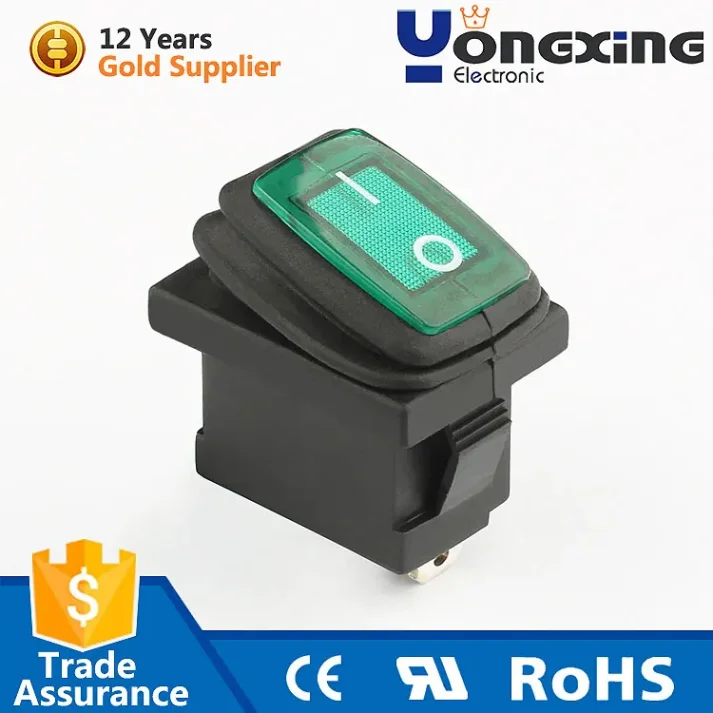

Why Choose Our KCD3 Waterproof Rocker Switch?
Our KCD3 Waterproof Rocker Switch stands out for its durability, waterproof design, and illuminated function, making it ideal for various applications. With a factory-direct supply, you get high-quality switches at competitive prices.
What Are the Key Features?

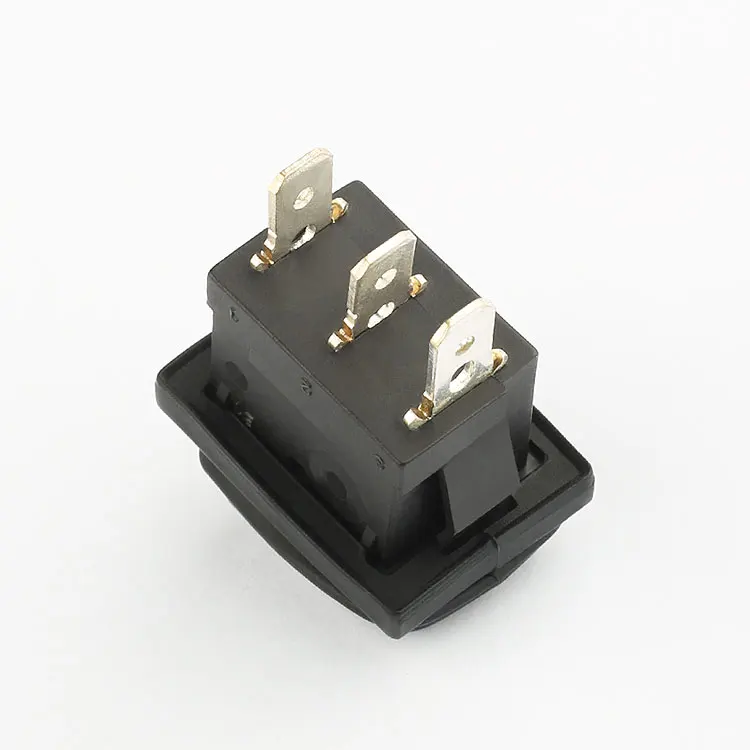

Key features include a 3-pin SPST configuration, 6A 250V AC rating, IP65 waterproof rating, and an illuminated design for easy operation in low-light conditions. It also boasts a long electronic and mechanical lifespan.
What Applications Is It Suitable For?
This switch is perfect for automotive, marine, industrial, and home appliances where a reliable, waterproof, and illuminated switch is required. Its versatility and durability make it a top choice for professionals and DIY enthusiasts alike.
