Description
Product Specifications:
- Max. Current: 6A
- Max. Voltage: 250V AC
- Material: PA66, ensuring durability and resistance to harsh environments
- Color Options: Red, Yellow, Green, Blue, White
- Lamp Color: White, Orange, Red, Blue, Green
- Operating Temperature: 0~105°C
- Terminals: 2pin/3pin/4pin/6pin
- Electrical Life: 10,000 Times
- Mechanical Life: 50,000 Times
- Certification: CQC, CE, UL, CB, ENEC
Product Advantages:
- IP40 rated for dust protection, ensuring reliable performance in medical settings
- Clear indicator light for easy status identification
- Double poles single through circuit for enhanced safety
- Customizable options available for large orders, including actuator and housing colors
After-Sales Service: We provide comprehensive after-sales support, including technical assistance and warranty services. Our factory is equipped with independent plants, injection workshops, and advanced experimental equipment, ensuring top-notch quality control.
Choose us as your trusted supplier for factory-direct pricing and exceptional customer service.
|

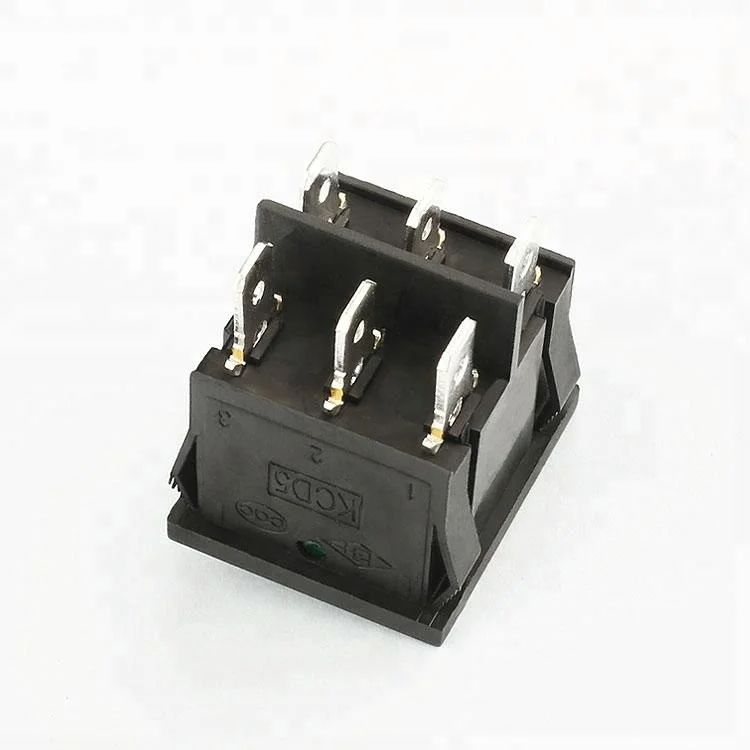

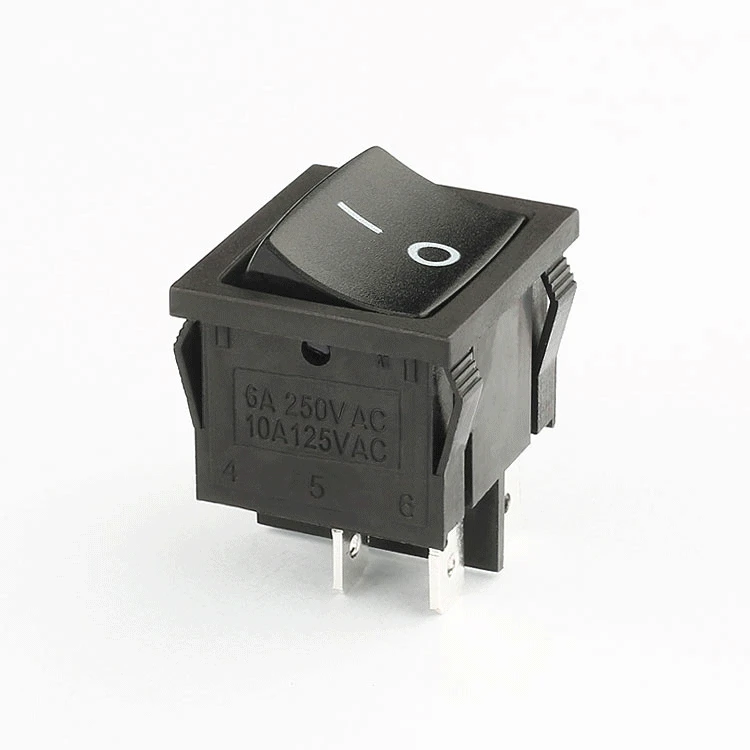

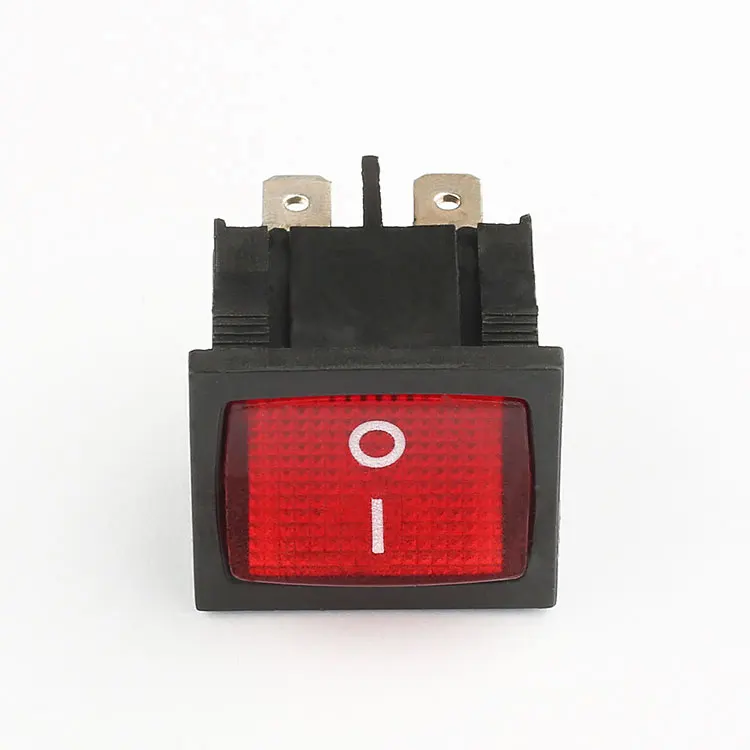

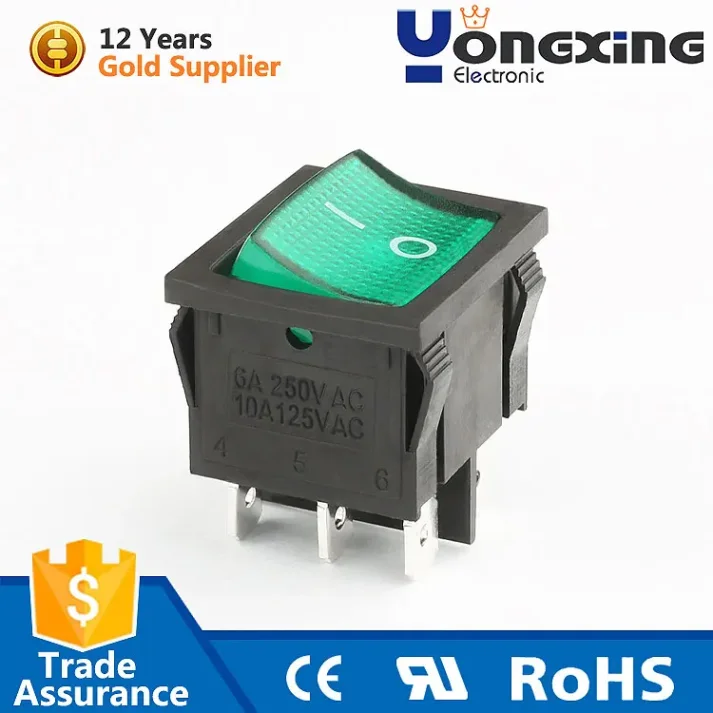

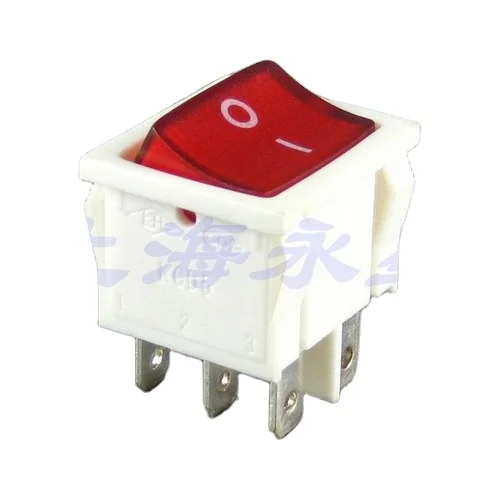

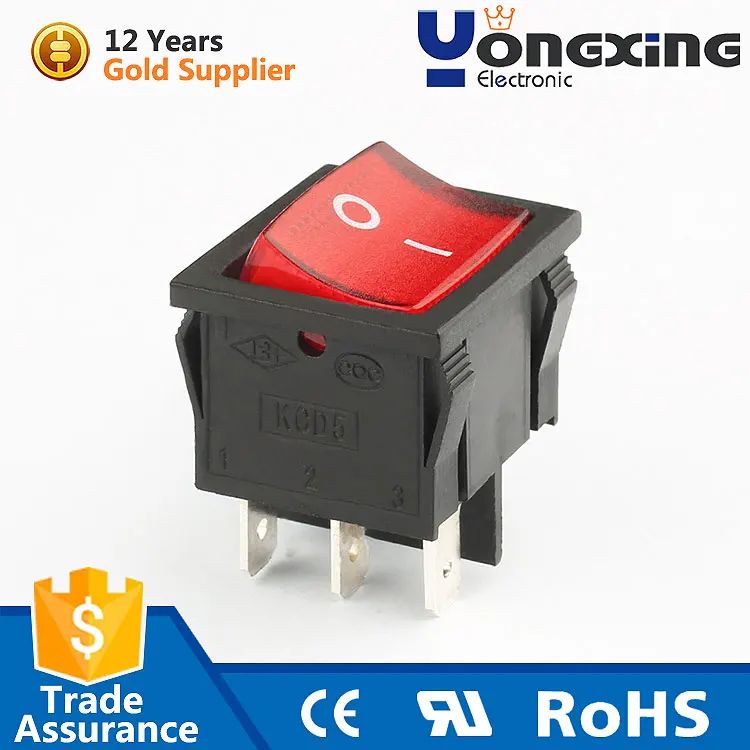

KCD5-21N-CA2A-BB-01-24D
|
||
|
Max.Rating Current&Voltage：
|
6A 250V
|
|
|
Circuit：
|
Double poles single through
|
|
|
electronic life：
|
10000 times
|
|
|
Actuator color：
|
Black, green, white and so on
|
|
|
Housing color：
|
Black, white and so on
|
|
Why Choose Our KCD5 Rocker Switch?
Our KCD5 Rocker Switch stands out with its IP40 rating, ensuring dust protection and reliable performance in medical and other demanding environments. The clear indicator light allows for easy status identification, enhancing user experience.
Customization Options
As a factory and supplier, we offer customization options for large orders. Choose from a variety of actuator and housing colors to match your specific requirements. Our advanced manufacturing capabilities ensure that your custom orders are met with precision and efficiency.
Exceptional After-Sales Service
We pride ourselves on providing comprehensive after-sales support. Our technical team is always ready to assist with any questions or concerns you may have. With a warranty service in place, you can trust that your investment is protected.
