Description

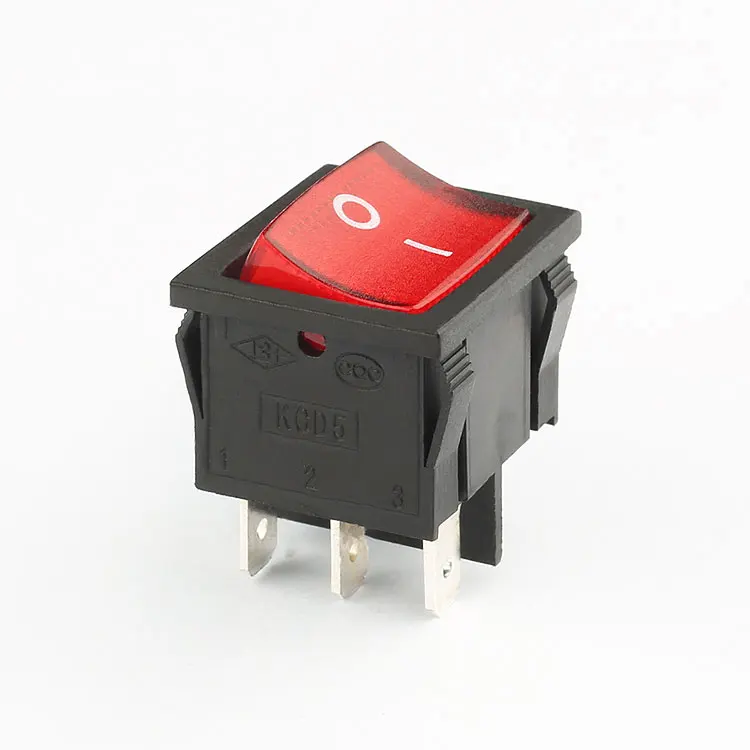

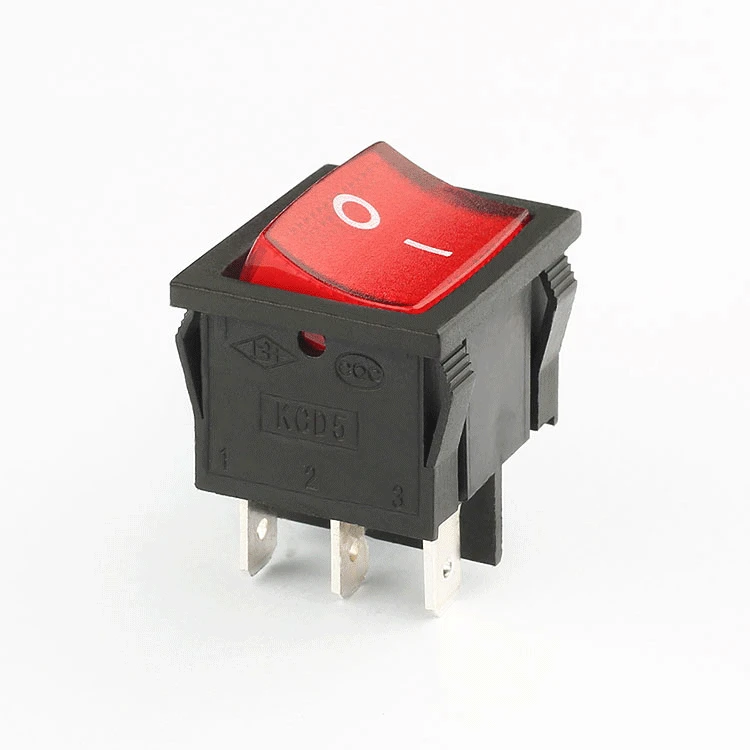

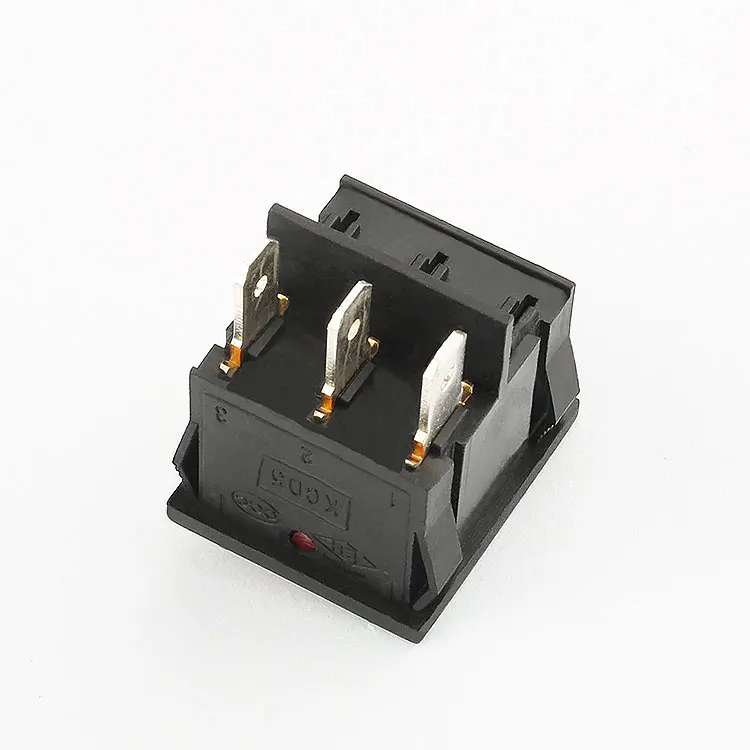

Our KCD5 Rocker Switch boasts a sleek black housing with a vibrant red actuator, ensuring easy visibility and operation. It is rated for a maximum current of 16A and a maximum voltage of 250V AC, with a mechanical life of 50,000-100,000 cycles and an electronic life of 10,000 cycles. The switch is certified by CQC, CE, ENEC, and CB, guaranteeing its safety and compliance with international standards.
What sets our KCD5 Rocker Switch apart from the competition is its exceptional insulation resistance (≥1000MΩ) and dielectric strength (1500V AC, 1 min), ensuring reliable performance even in harsh environments. Additionally, its compact design and easy installation make it a popular choice among our customers.
We offer wholesale pricing and bulk order discounts, making it an economical choice for businesses and individuals alike. With our commitment to quality and customer satisfaction, you can trust that you’re getting the best value for your money.

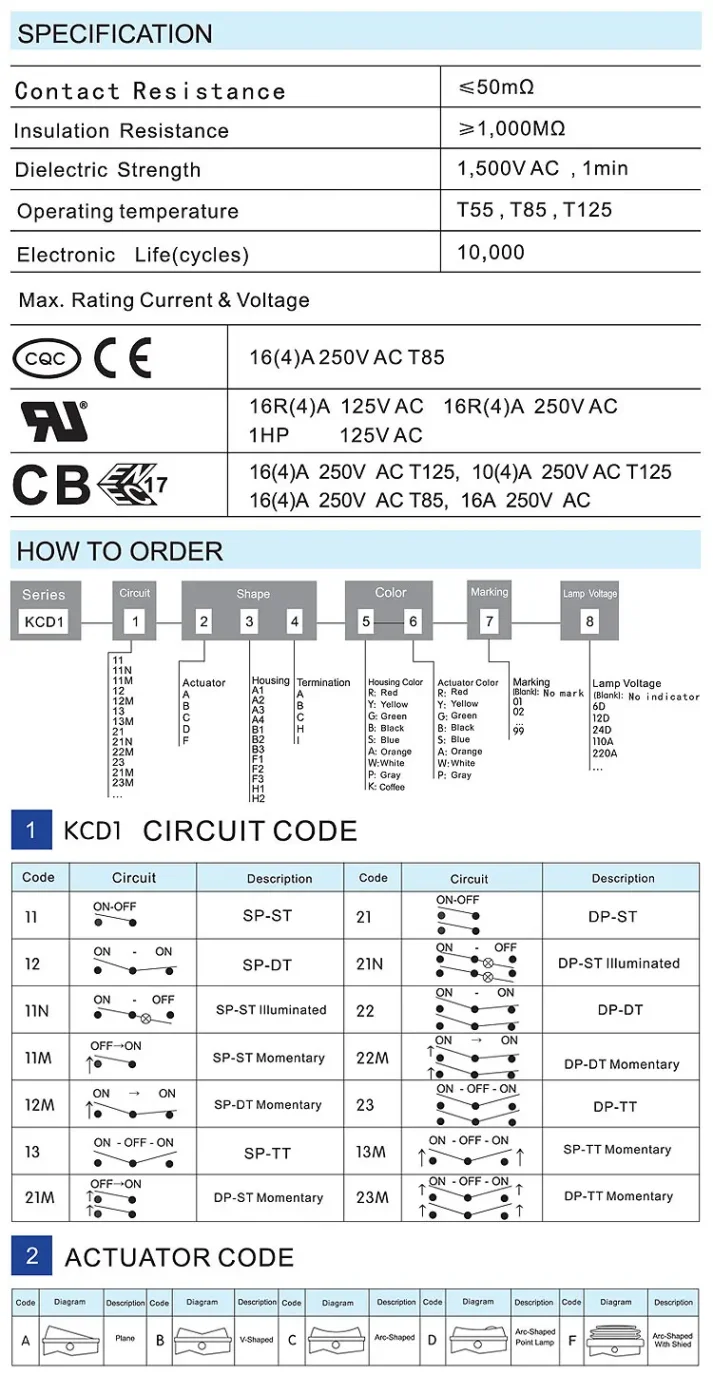

| Contact Resistance | ≤50mΩ |
| Insulation Resistance | ≥1,000MΩ |
| Dielectric Resistance | 1,500V AC , 1 min |
| Electronic life(cycles) | 10,000 cycles |
| Mechanical life(cycles) | 50,000 – 100,000 cycles |
| Certification |
CQC , CE , ENEC , CB |
| Max. Rating Current & Voltage (CQC , CE) |
16(4)A 250V AC T85 |
| Max. Rating Current & Voltage (UL) |
16R(4)A 250V AC , 16R(4)A 125V AC 1HP 125V AC |
| Max. Rating Current & Voltage (CB , ENEC) |
16(4)A 250V AC T125,10(4)A 250V AC T125 16(4)A 250V AC T85,16A 250V AC |
Key Features and Benefits
Our KCD5 LED Light Bar Rocker Switch offers a range of features that make it a standout choice for your lighting needs. With its DPDT configuration, it provides versatile switching capabilities, allowing you to control multiple circuits with ease. The 12V DC rating ensures compatibility with a wide range of automotive and marine systems, while the 16A/250V AC rating guarantees reliable performance under heavy loads.
Durable and Reliable

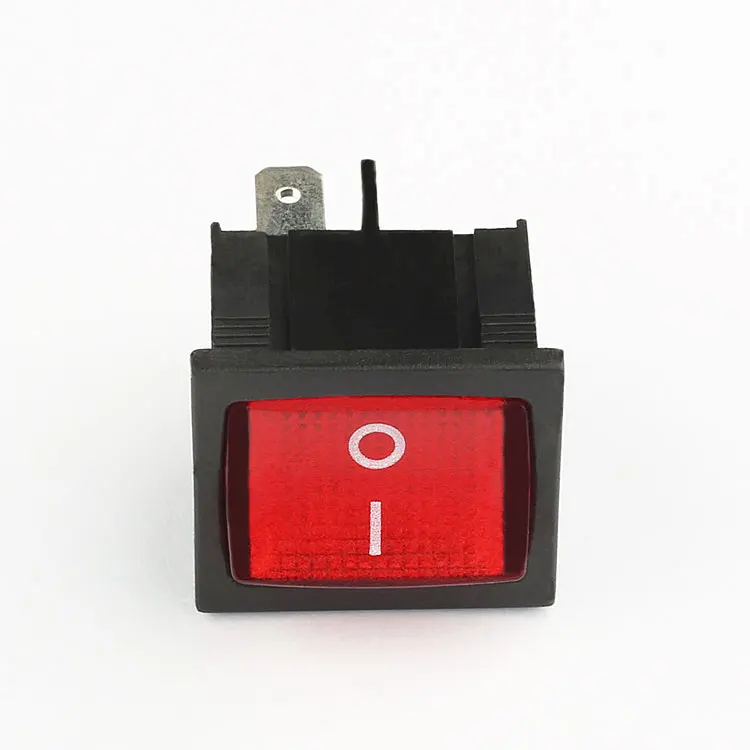

Constructed with a durable black housing and a vibrant red actuator, our KCD5 Rocker Switch is built to last. Its mechanical life of 50,000-100,000 cycles and electronic life of 10,000 cycles ensure long-term reliability, even in demanding applications. The exceptional insulation resistance and dielectric strength further enhance its durability, making it a trusted choice for professionals and enthusiasts alike.
Factory Wholesale Pricing
As a direct factory supplier and wholesaler, we offer competitive pricing on our KCD5 LED Light Bar Rocker Switch. Whether you're a business looking to stock up on switches or an individual seeking a cost-effective solution, our wholesale pricing and bulk order discounts make it an economical choice. Trust in our commitment to quality and customer satisfaction, and choose our KCD5 Rocker Switch for your next project.
