Description

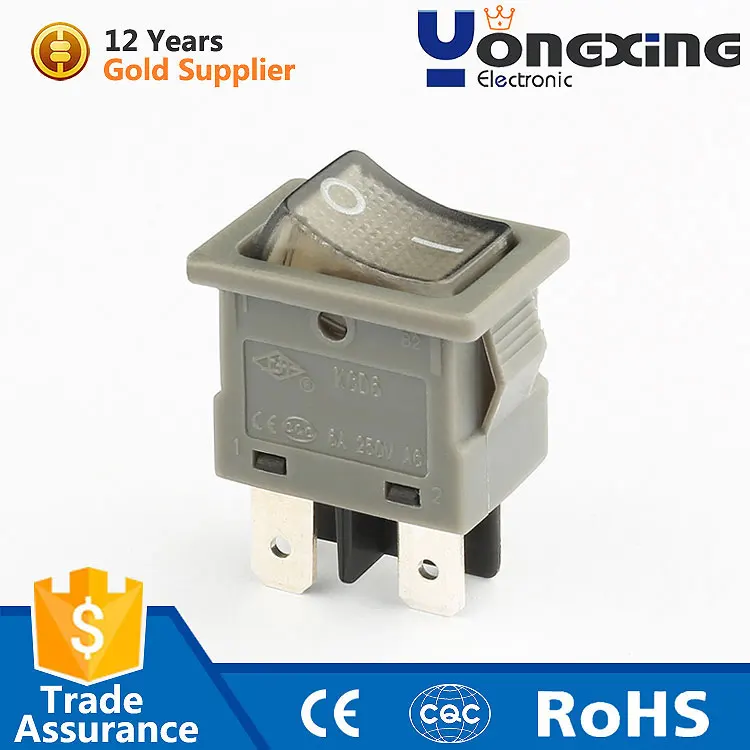

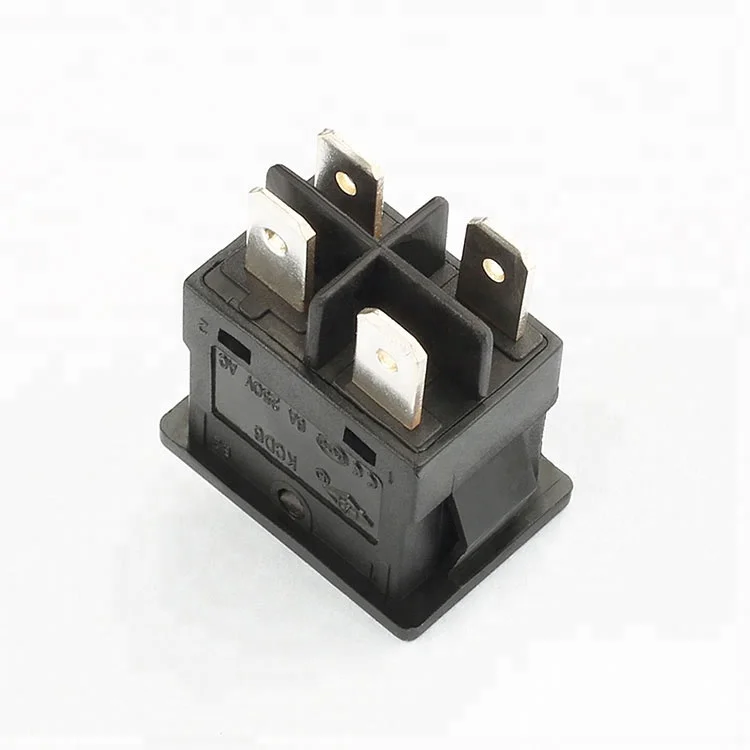

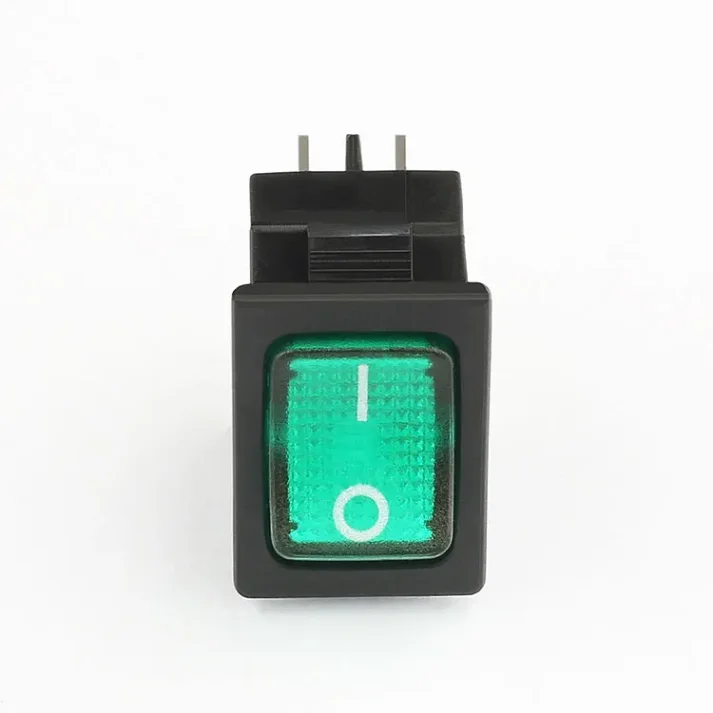

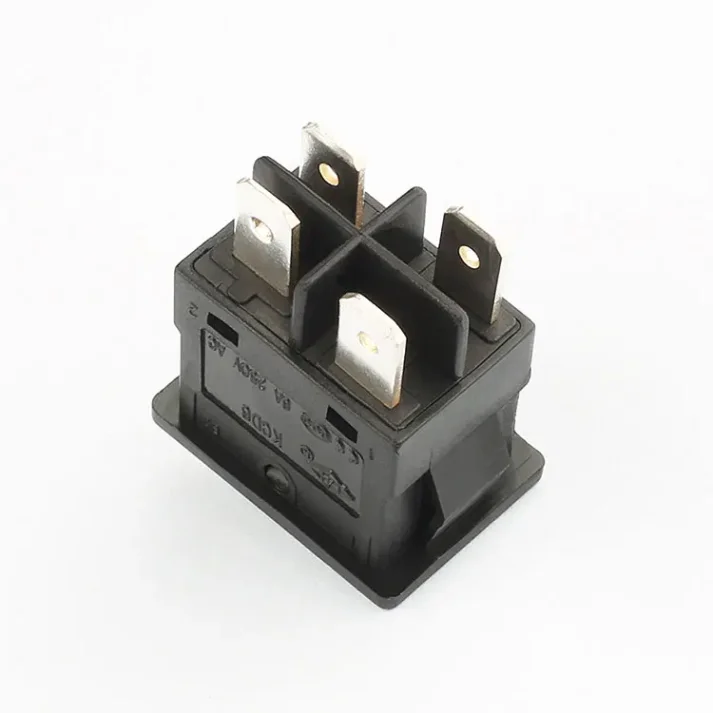

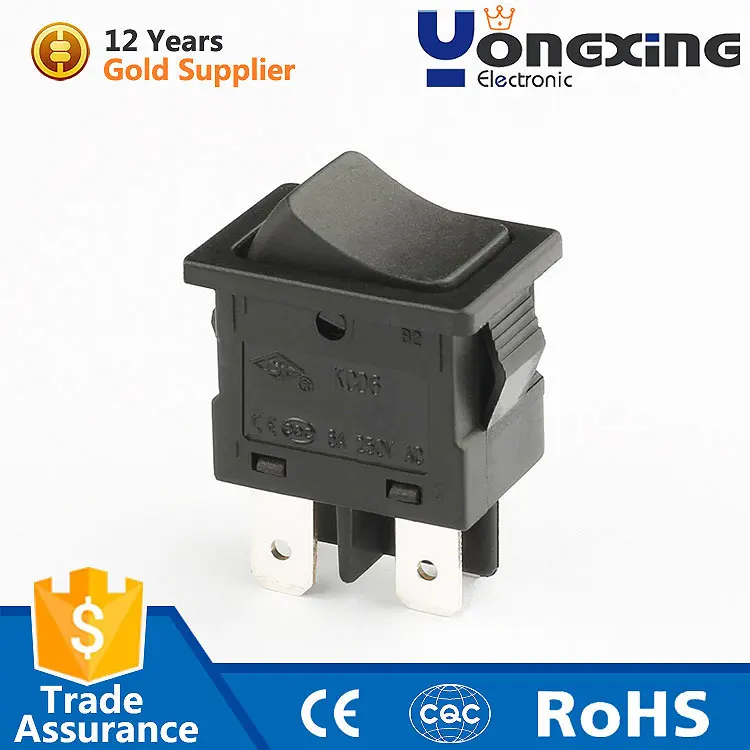

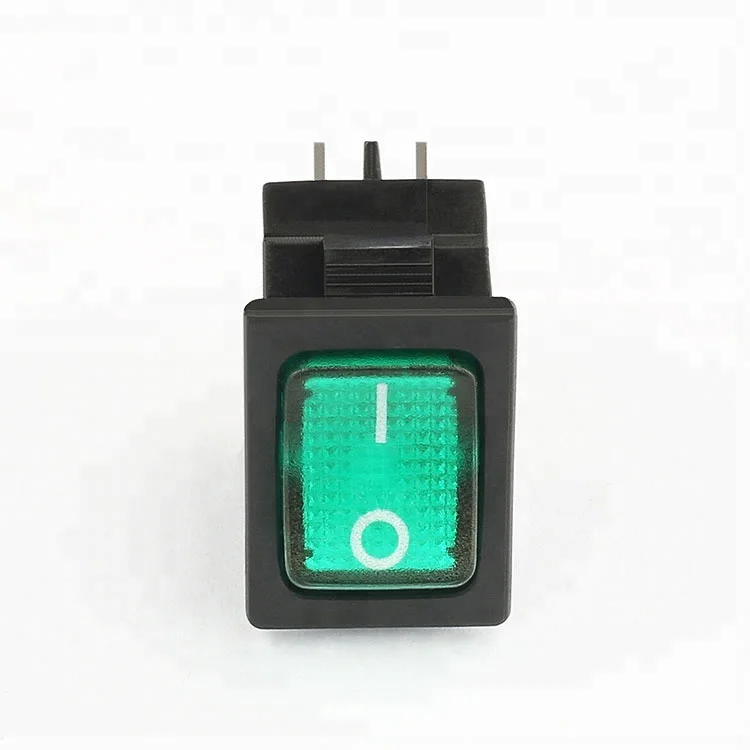

Our switches are designed with precision and built to last. With a maximum current of 6A and a maximum voltage of 250V, they are suitable for a wide range of applications. The switch features a 4-pin design and comes in a green color with a black housing. The lamp color options include white, orange, red, blue, and green, allowing you to choose the one that best suits your requirements.
One of the key advantages of our switches is their excellent electrical performance. The contact resistance is ≤50mΩ, ensuring low power loss and efficient operation. The insulation resistance is ≥1,000MΩ, providing reliable electrical insulation. The dielectric resistance is 1,500V AC for 1 minute, demonstrating the switch’s ability to withstand high voltages.
In terms of mechanical life, our switches can endure up to 100,000 cycles, making them highly durable. The IP level is IP40, which offers basic protection against solid objects. The function of the switch is DPST (Double Pole Single Throw), providing a reliable switching mechanism.
What sets our switches apart from others in the market is our commitment to quality and customization. As a factory with independent production facilities, including an injection molding workshop and advanced experimental equipment, we have the capability to customize switches according to your specific requirements. With over 60 senior engineers and 5S management implemented in all workshops, we ensure the highest standards of production.
We also offer competitive wholesale prices and excellent after-sales service. Whether you are a distributor, retailer, or end-user, we can provide you with the best solutions for your needs. Contact us today to place your order and experience the quality and reliability of our KCD6 illuminated rocker switches.
| Contact Resistance | ≤50m Ω |
| Insulation Resistance | ≥1,000MΩ |
| Dielectric Resistance | 1,500V AC , 1 min |
| Electronic life(cycles) | 10,000 cycles momentary rocker switch on off on |
| Certification |
CQC , CE , UL , ENEC , CB |
| Max. Rating Current & Voltage (CQC , CE) |
16(4)A 250V AC T85 |
| Max. Rating Current & Voltage (UL) |
16R(4)A 250V AC , 16R(4)A 125V AC 1HP 125V AC |
| Max. Rating Current & Voltage (CB , ENEC) |
16~4A 250V AC T125,10(4)A 250V AC T125 16(4)A 250V AC T85,16A 250V AC |
Why Choose Our KCD6 Illuminated Rocker Switch?
Our KCD6 illuminated rocker switch is a top choice for those seeking a reliable and customizable electrical switch. With a maximum current of 6A and a maximum voltage of 250V, it is suitable for a wide range of applications. The switch's 4-pin design and multiple lamp color options make it versatile and adaptable to different needs.
What Are the Advantages of Our Switch?
Our switch stands out for its excellent electrical performance, including low contact resistance, high insulation resistance, and the ability to withstand high voltages. It also has a long mechanical life, ensuring durability and reliability. As a factory supplier, we offer competitive wholesale prices and the ability to customize the switch according to your specific requirements.
How Can We Help You?
Whether you are a distributor, retailer, or end-user, we can provide you with the best solutions for your electrical switch needs. Our team of senior engineers and advanced production facilities ensure the highest quality standards. Contact us today to place your order and experience the quality and reliability of our KCD6 illuminated rocker switches.
