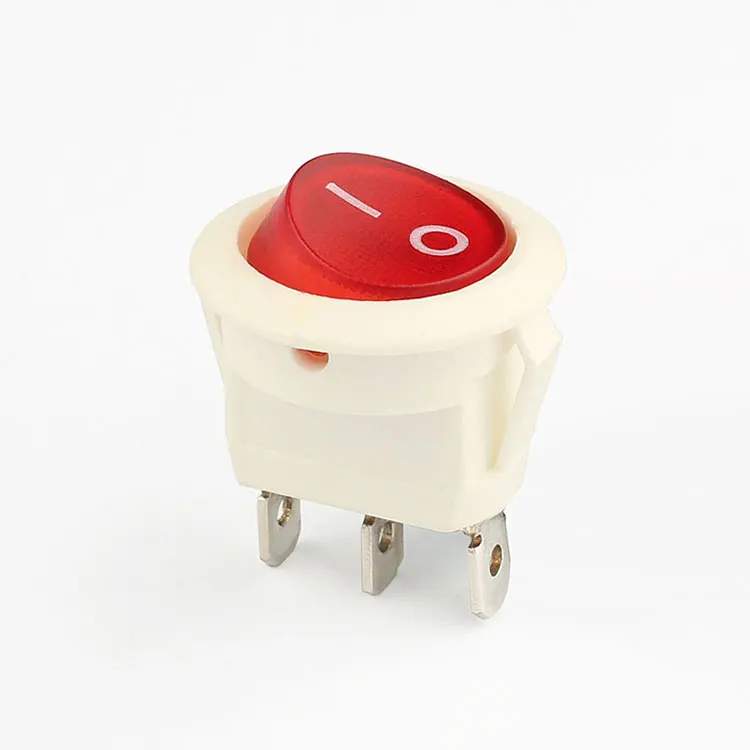

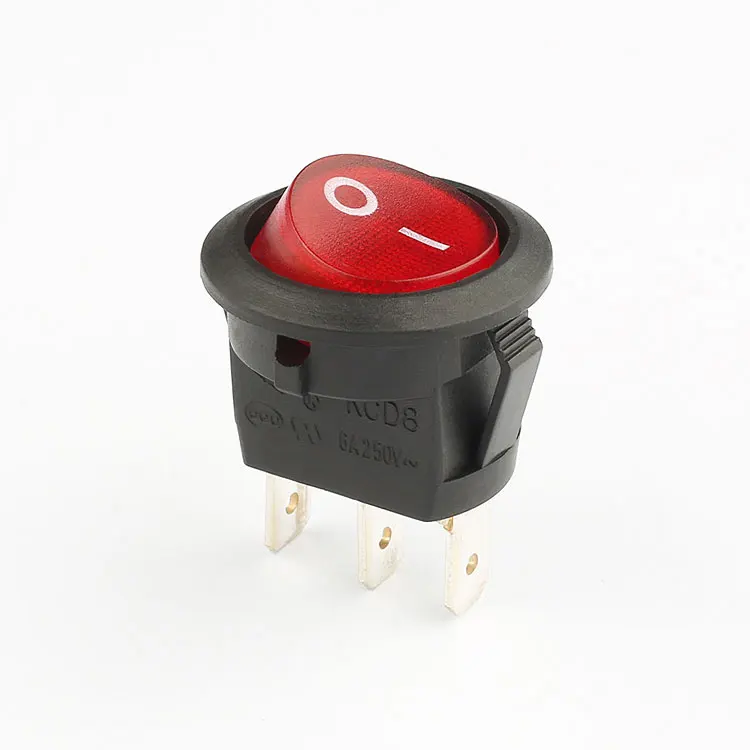

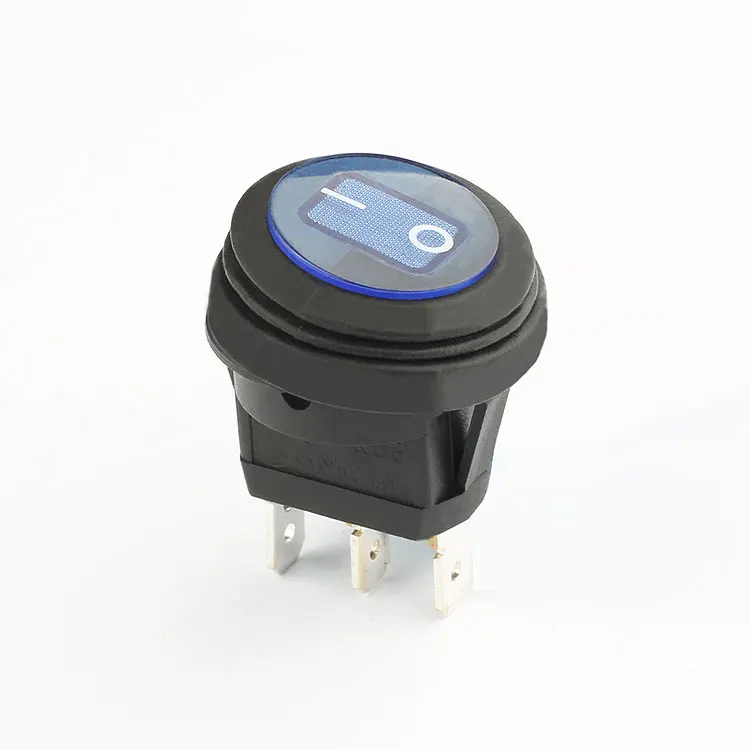

Premium KCD8 Illuminated Rocker Switch – Wholesale Supplier
Welcome to our factory, where we specialize in manufacturing high-quality KCD8 illuminated rocker switches. As a direct supplier, we offer competitive wholesale prices and customization options to meet your specific needs. Our switches are designed for durability and performance, with a wide voltage range from 12V to 250V and a 3-pin configuration.
Key Features:
- Voltage Range: 12V, 24V, 110V, 220V, 250V
- Current Rating: 6A/10A
- Dielectric Resistance: 1500V
- Electrical Life: 10,000 cycles
- Contact Resistance: 50mΩ
- Operating Temperature: T55, T85, T105
- Certifications: CQC, CE, UL, CB, ENEC
- Housing & Button Colors: Black housing with selectable red, white, orange, blue, or green buttons
Why Choose Us?
- Factory Direct: Skip the middleman and buy directly from the manufacturer.
- Customization: With sufficient quantity, we can customize the switch to your specifications.
- Quality Assurance: Our state-of-the-art facilities and 60+ senior engineers ensure top-notch quality.
- 5S & 5M Management: All workshops adhere to strict management standards for efficiency and safety.
After-Sales Service: We stand behind our products with excellent customer support and warranty options.
| max.rating cnrrent | 6A/10A | dielectrice resistance | 1500V |
| max.rating voltage | 250V | electronic life | 10000cycles |
| contact resistance | 50mΩ | operating temperature | T55,T85,T105 |
| insulation resistance | 1000mΩ | certifications | CQC,CE,UL,CB,ENEC |
| housing color | black(selective) | button color | red(selective) |
| PIN number | 3 (2,3) | lamp voltage | 6V,12V,24V,110V,220V |
Why Choose Our KCD8 Illuminated Rocker Switch?
Our KCD8 illuminated rocker switch stands out for its durability, versatility, and customization options. With a wide voltage range and multiple certification standards, it's suitable for a variety of applications, from industrial machinery to home appliances. The illuminated feature enhances visibility, making it ideal for low-light environments.
What Are the Advantages of Buying from a Factory Supplier?
As a factory supplier, we offer competitive wholesale prices, direct access to manufacturing expertise, and the ability to customize products to your exact specifications. Our strict 5S and 5M management standards ensure consistent quality and efficient production.
How Can We Customize the KCD8 Switch for You?
With sufficient quantity, we can customize the housing color, button color, and even the voltage rating to meet your unique requirements. Our team of senior engineers is ready to assist you in creating the perfect switch for your application.
