Factory Wholesale KCD8 Round Rocker Switch | 250V 6A Customizable Color

$0.17
0 reviews

Factory Wholesale KCD8 Round Rocker Switch | 250V 6A | Customizable Color | Direct Supplier

Description

Looking for a reliable and customizable rocker switch? Our Factory Wholesale KCD8 Round Rocker Switch is the perfect choice! With a maximum voltage of 250V and a maximum current of 6A, this switch is designed to meet your electrical needs. It features a sleek black design and is customizable in color to match your preferences. As a direct supplier and factory, we offer competitive wholesale prices and ensure high-quality products. Our factory is equipped with independent plants, injection molding workshops, and advanced experimental equipment. We have over 60 senior engineers and implement 5S management in all workshops, guaranteeing precision and efficiency in production. This switch boasts a mechanical life of 100,000 cycles, IP41 and IP65 protection levels, and a SPST ON-OFF function. It also has a low contact resistance of 50mΩ Max, high dielectric strength of 1500VAC/1min, and excellent insulation resistance of 1000MΩ. With an electrical life of 10,000 cycles and CQC, CE, ENEC, and UL certifications, our switch is a reliable choice for various applications. Whether you need it for household appliances, industrial equipment, or any other project, our KCD8 Round Rocker Switch is up to the task. Choose us for factory-direct quality, wholesale pricing, and exceptional customer service.
Factory price KCD8 series round rocker switch on off 250V 6A max black switch t85 customizable color

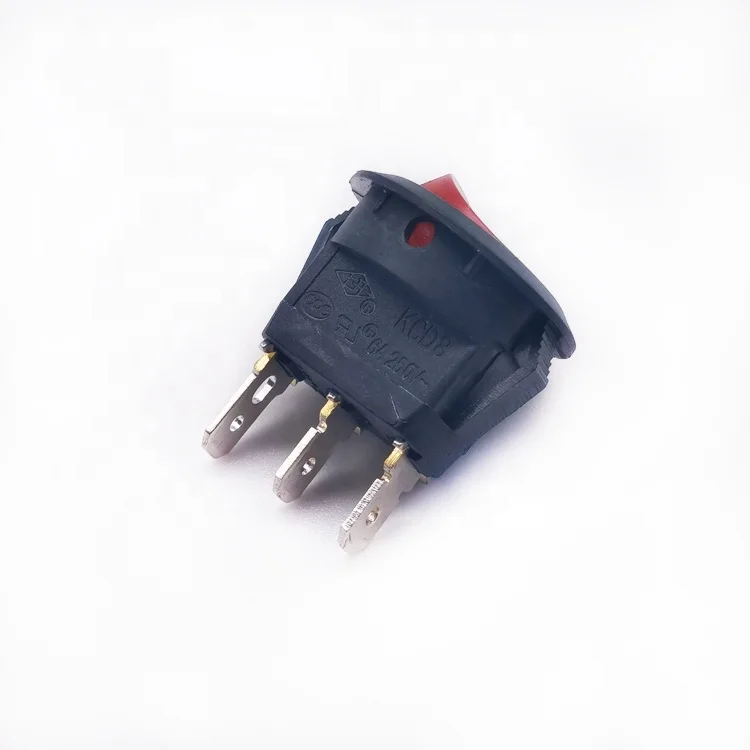

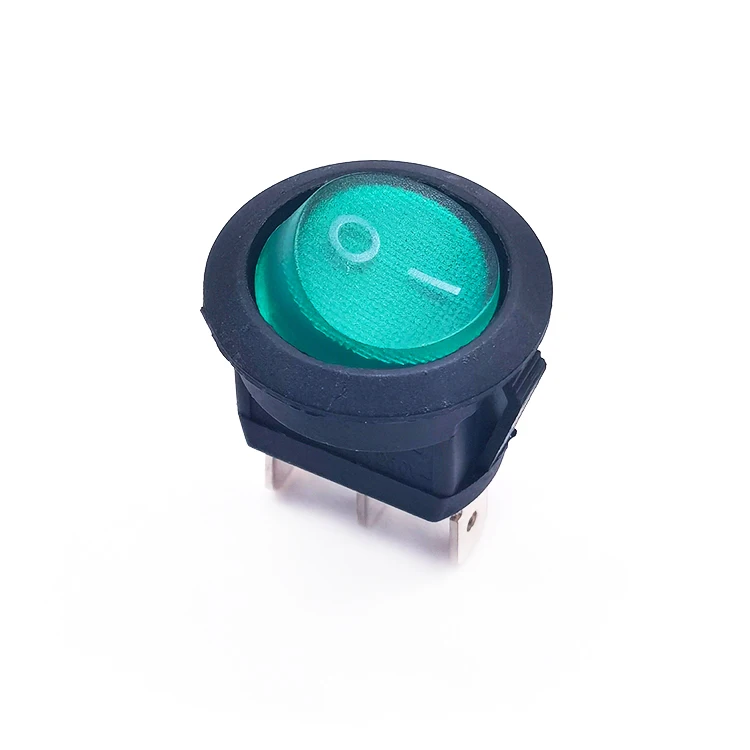

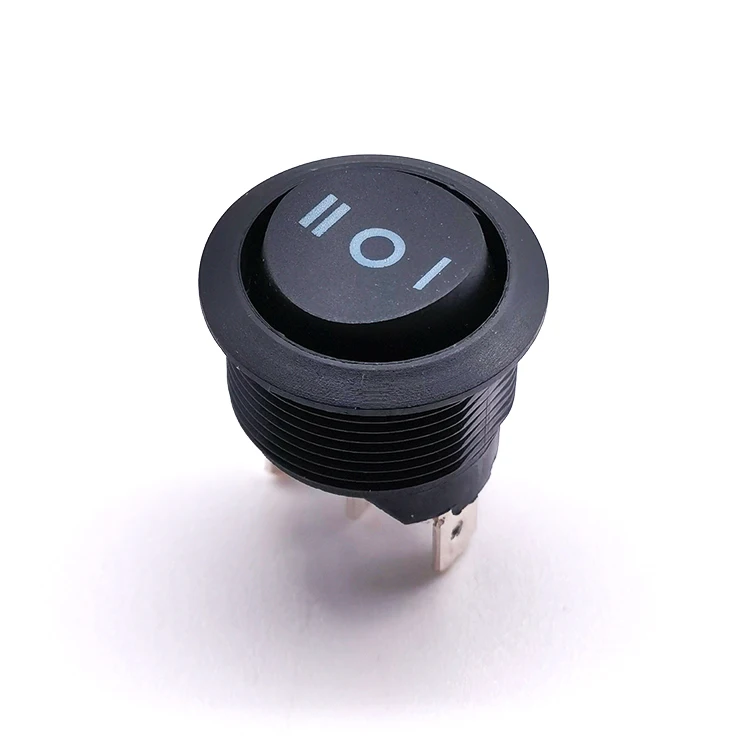

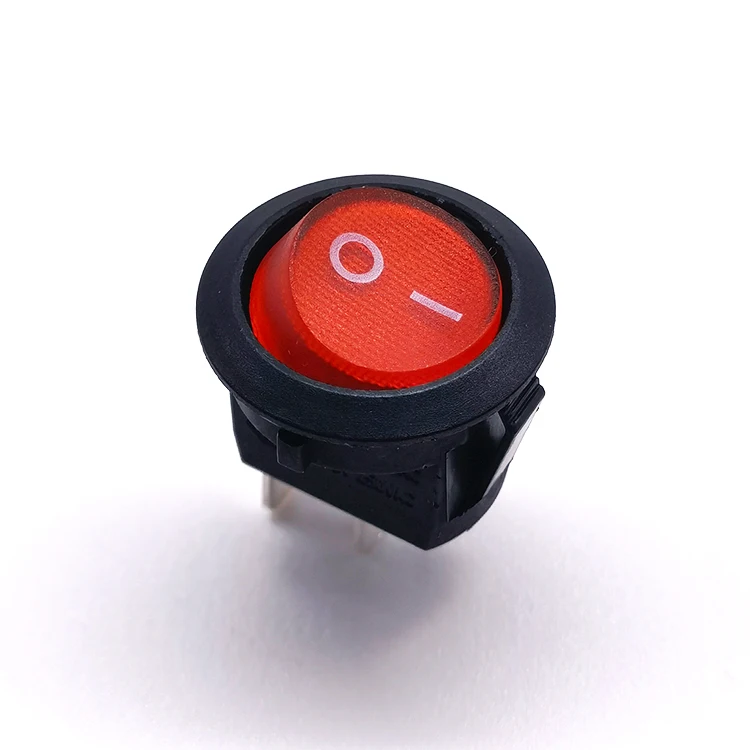

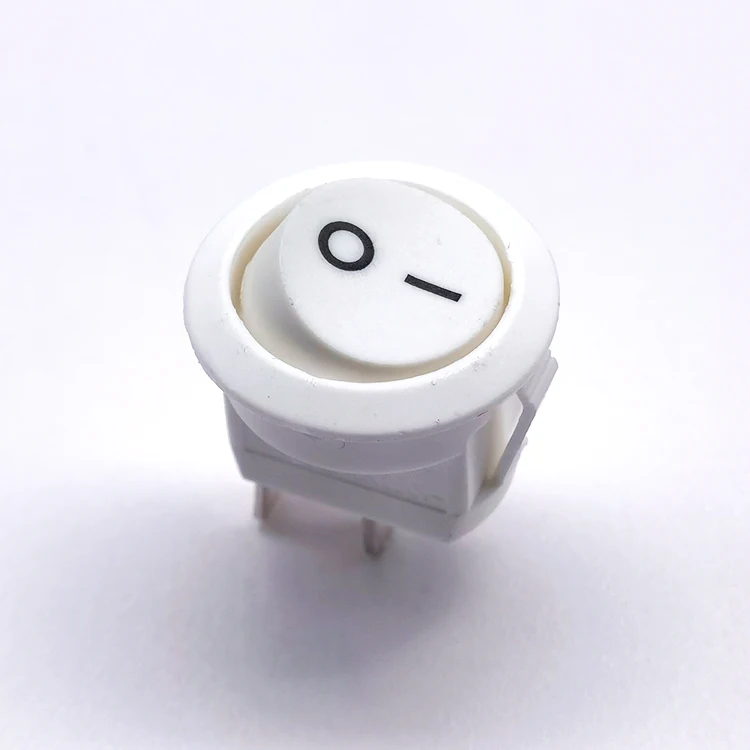

Electronic component product imageElectronic device part displayDetail of electronic componentOverview of electronic product


Why Choose Our KCD8 Round Rocker Switch?

Our KCD8 Round Rocker Switch stands out for its high-quality construction, customizable color options, and competitive wholesale pricing. As a factory supplier, we ensure direct access to the best products at the most affordable rates.

What Are the Key Features of This Switch?

With a maximum voltage of 250V and a maximum current of 6A, this switch is suitable for a wide range of applications. It offers a long mechanical life of 100,000 cycles and excellent protection levels (IP41, IP65), ensuring durability and reliability.

Can I Customize the Color of the Switch?

Absolutely! We offer customizable color options to match your specific requirements. Whether you need a standard black switch or a unique color, we can accommodate your needs.

Push Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch Customized

Additional information

Max. Current

6A

Max. Voltage

250V

Place of Origin

ZHE

Brand Name

SK

Model Number

KCD8-11-CB1A-B-B-03-HR

Whether the smart

NO

Mechanical Life

100,000 cycles

IP level

IP41, IP65

Function

SPST ON-OFF

Color

Black

Pins

2 pin

Contact Resistance

50m Max

Dielectric Strength

1500VAC/1min

Insulation Resistance

1000M

ELECTRICAL LIFE

10000 Cycles

Protection level

Ip40

Certification

CQC CE ENEC UL
