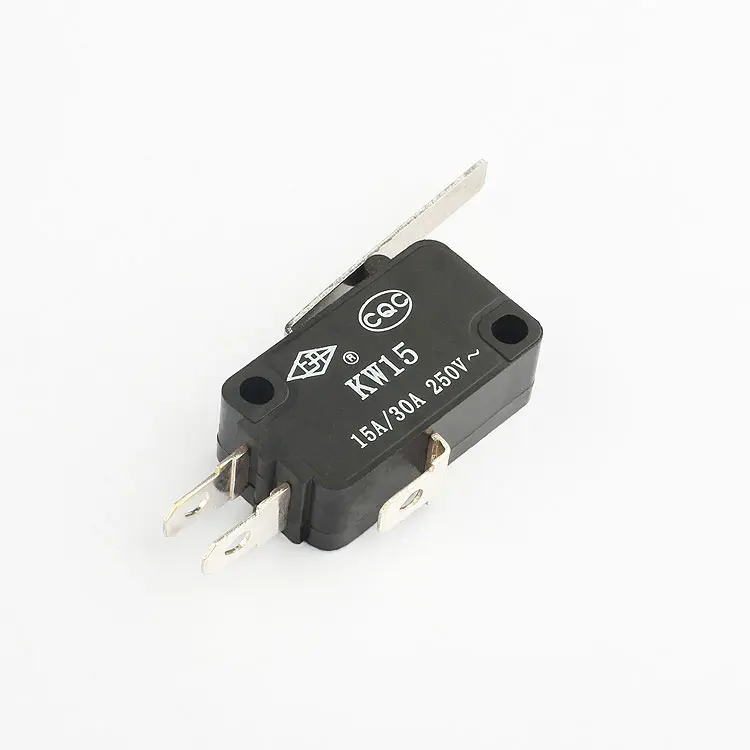

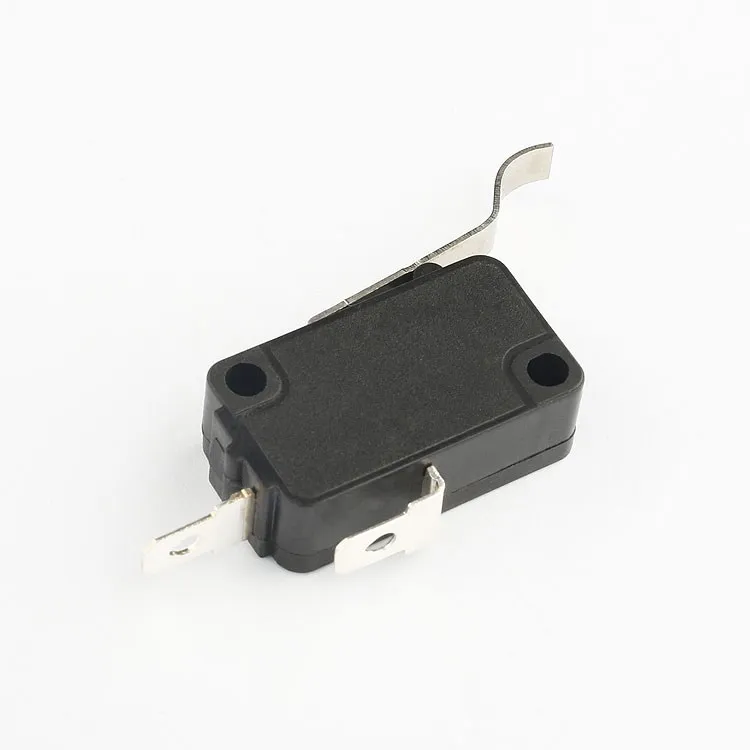

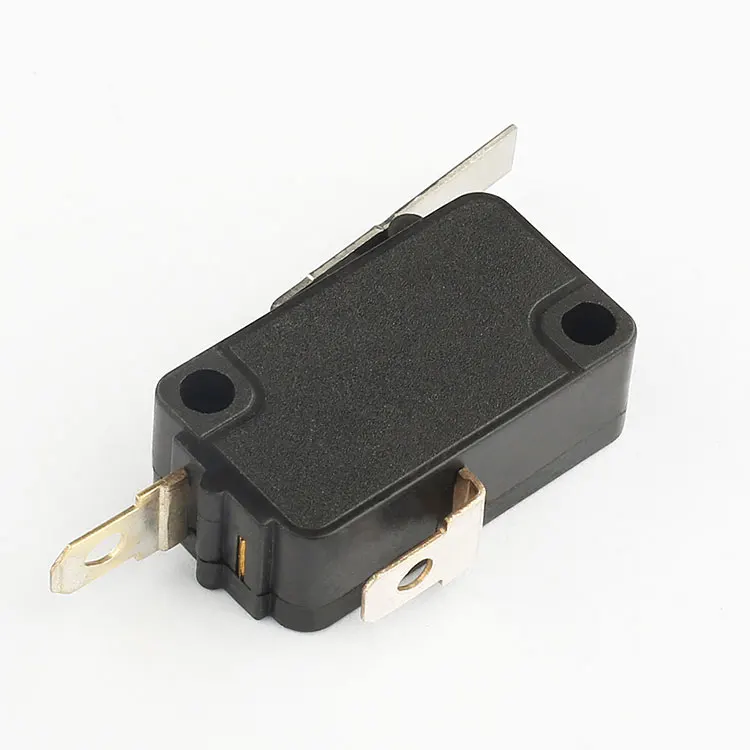

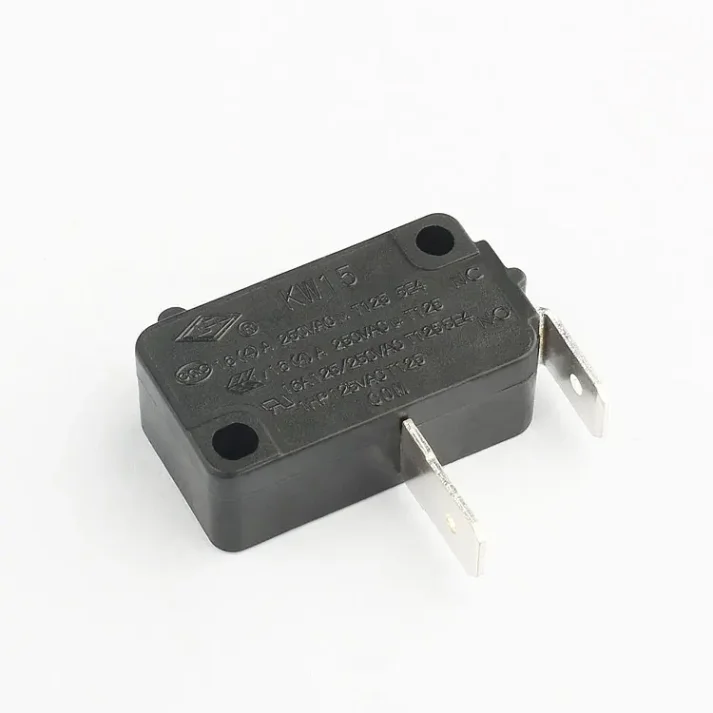

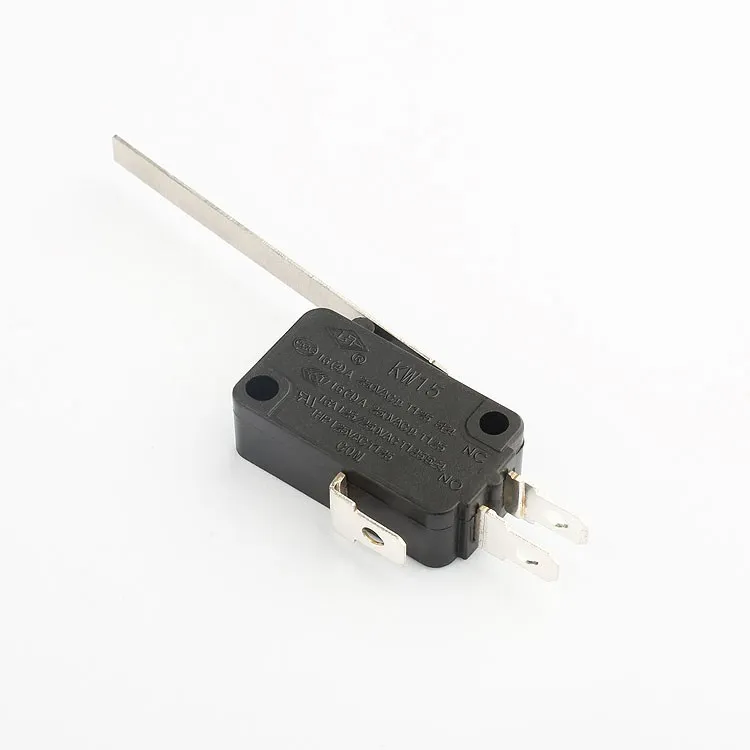

Factory Wholesale KW15 Waterproof Micro Switch 16A 250V Supplier

300 - 599  pieces
$0.50

600 - 899  pieces
$0.48

900 - 1,199  pieces
$0.46

>= 1,200  pieces
$0.45

0 reviews

Factory wholesale KW15 waterproof micro switch supplier. High quality, competitive price.

Description

As a leading factory and supplier, we offer wholesale KW15 waterproof micro switches at competitive prices. This micro switch, with a rating of 16A/250VAC, is designed to meet your diverse needs. Our product boasts a contact resistance of ≤50mΩ, insulation resistance of ≥100MΩ, and dielectric strength of 1500V, ensuring reliable performance. It can withstand an operating temperature range of -25℃ to +125℃ and has an electrical life of 50,000 cycles, making it highly durable. The switch is black in color, features an SPST normal open function, and offers a protection level of IP40. Our factory is equipped with independent plants, injection molding workshops, and advanced experimental equipment. With over 60 senior engineers and strict 5S management in all workshops, we guarantee high-quality products. We also provide customization services for large quantities to meet your specific requirements. Choose us for your micro switch needs and enjoy factory-direct pricing and excellent service.
Contact Resistance ≤50mΩ
Insulation Resistance ≥100mΩ
Dielectric Strength 1,500V
Electronic Life 50,000 cycles
Operating temperature -25℃~+125℃
Rating current&voltage 16A/250VAC

Electronic component product image for cross-border e-commerceElectronic device product image for cross-border e-commerceElectronic gadget product image for cross-border e-commerce


Why Choose Our KW15 Waterproof Micro Switch?

Our KW15 waterproof micro switch stands out for its high quality and reliability. With a rating of 16A/250VAC, it can handle a wide range of electrical loads. The waterproof design makes it suitable for use in harsh environments, ensuring long-lasting performance.

What Are the Key Features of Our Product?

Our micro switch features a contact resistance of ≤50mΩ, insulation resistance of ≥100MΩ, and dielectric strength of 1500V. It can operate in temperatures ranging from -25℃ to +125℃ and has an electrical life of 50,000 cycles. These features make it highly durable and suitable for various applications.

Can We Customize the Switch?

Yes, we offer customization services for large quantities. Our factory has the capability to tailor the switch to meet your specific requirements, ensuring you get the perfect product for your needs.

Push Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch Customized

Additional information

Whether the smart

NO

Max. Current

16A

Max. Voltage

250V

Place of Origin

Shanghai, China

Brand Name

Shangkai(SK)

Model Number

KW15-11A-OAA

Operating Temperature

-25℃~+125℃

Certification

CQC,CE,ENEC17

Color

Black

Function

Spst Normal Open

Electrical Life

50000 cycles

Contact Resistance

50m Max

Insulation Resistance

100M Min

Dielectric strength

1500V

Voltage

250vac

Rating

16/15/10A

Protection Level

IP40

Packaging Details

150 pcs in one pvc box and then put into master carton
