Description
|
Certification
|
CQC
|
|
Whether the smart
|
NO
|
|
Place of Origin
|
China
|
|
Brand Name
|
SK(ShangKai)
|
|
Model Number
|
LA133-A1.P-W
|
|
Protection Level
|
IP65
|
|
Max. Current
|
10A
|
|
Max. Voltage
|
660V AC
|
|
LED
|
Other
|
|
Name
|

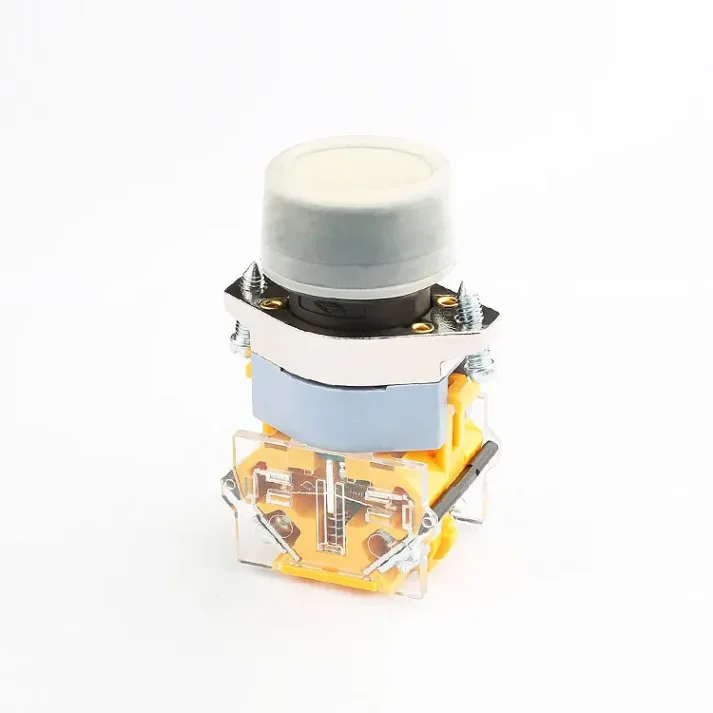

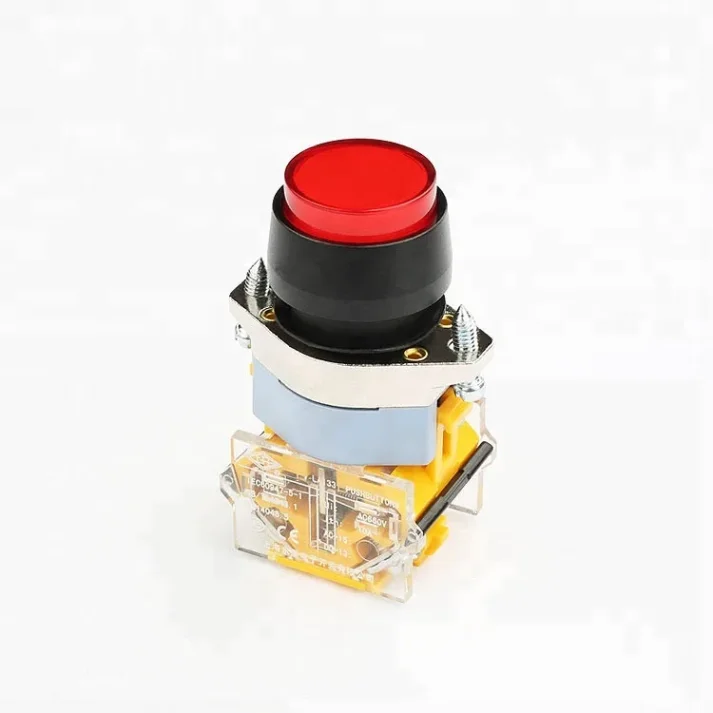

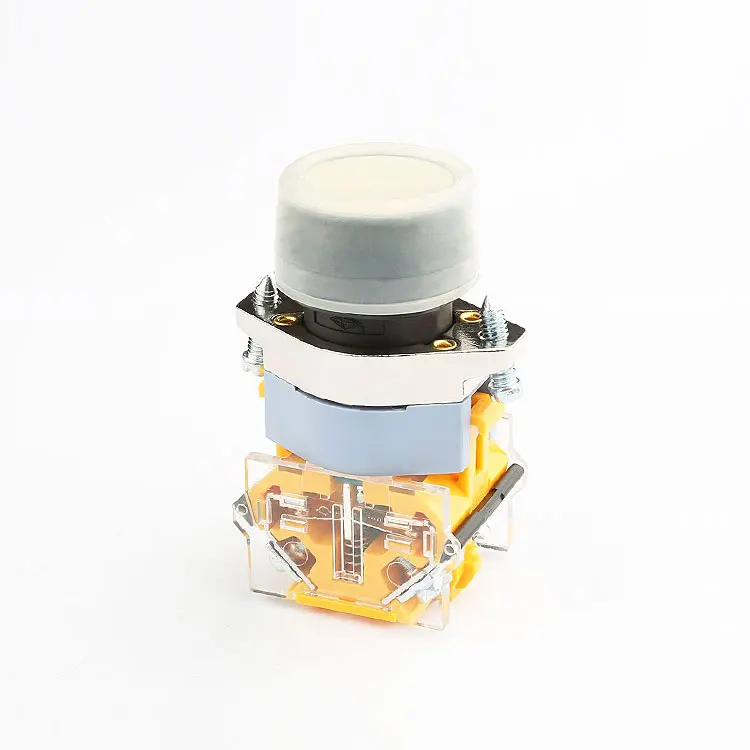

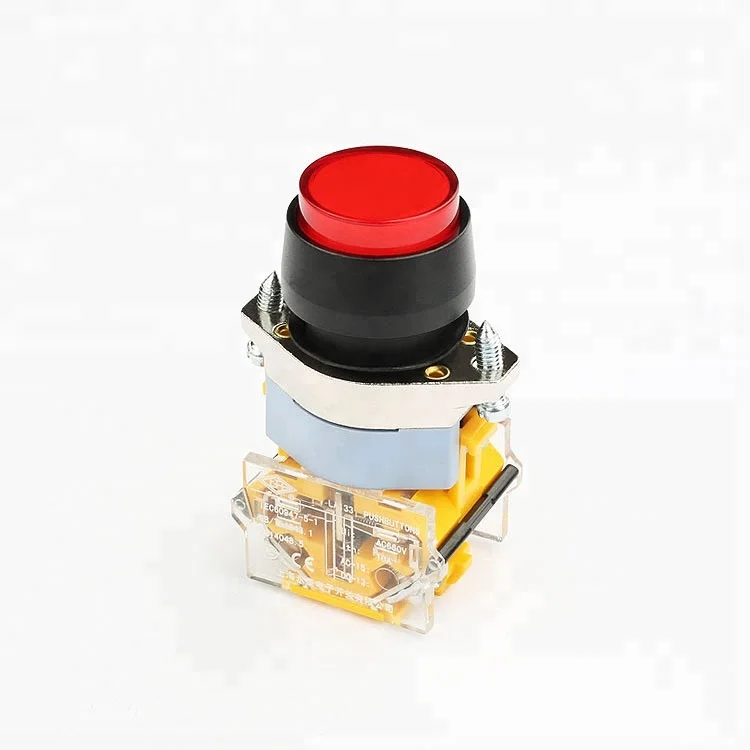

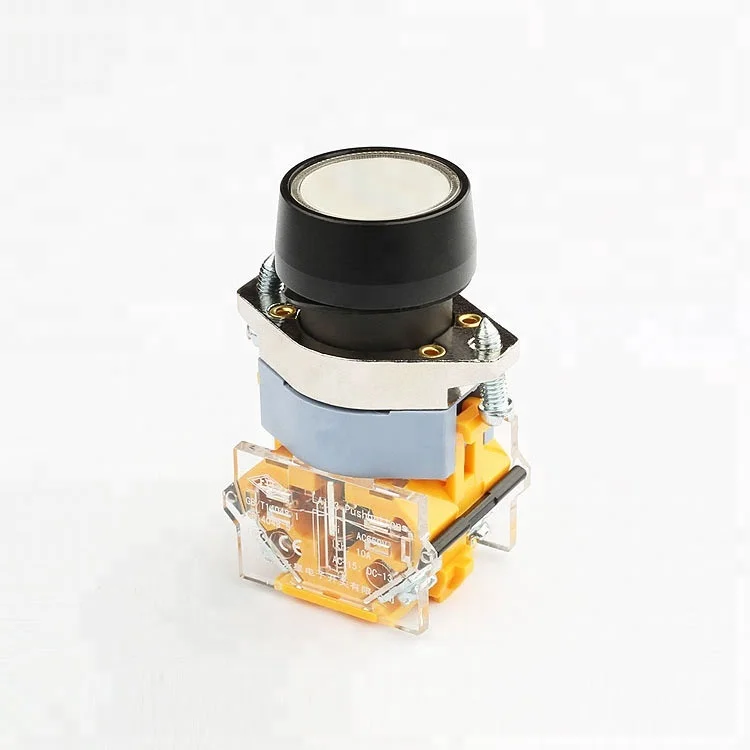

Self Locking Waterproof Touch Anti Vandal Push Button Switch
|
|
Cap colors
|
red, green, yellow, black
|
|
Pushbutton Head
|
Round Head
|
|
Mechanical life
|
300000cycles
|
|
Electronic life
|
600000cycles
|
|
Operating temperature
|
-25℃~+55℃
|
|
Function
|
Self locking
|
Why Choose Our LA133 Push Button Switch?
Our LA133 22mm Waterproof Self-Locking Anti-Vandal Push Button Switch stands out for its durability, reliability, and safety features. The self-locking mechanism ensures the switch remains in the desired position, while the waterproof design makes it suitable for outdoor or wet environments. The anti-vandal feature adds an extra layer of security, preventing unauthorized access or tampering.
What Are the Key Specifications?
The switch has a 22mm size, fits standard panel cutouts, and supports a maximum current of 10A and a maximum voltage of 660V AC. It is IP65 rated, ensuring protection against dust and water ingress. The mechanical life is 300,000 cycles, and the electronic life is 600,000 cycles, providing long-lasting performance.
What Are the Applications?
This switch is ideal for outdoor applications, industrial control systems, security systems, and any environment where a waterproof and durable push button switch is required. Its self-locking and anti-vandal features make it a reliable choice for demanding applications.
