Description
Product Specifications:
– Max. Rating Current: 3A
– Max. Voltage: 250VAC
– Contact Resistance: ≤50mΩ
– Insulation Resistance: ≥100MΩ
– Dielectric Resistance: 1,500V
– Electronic Life: Momentary 50,000 cycles, Alternate 25,000 cycles
– Mechanical Life: Momentary 200,000 cycles, Alternate 50,000 cycles
– Certification: CQC, CE, RoHS
– Operating Temperature: -5℃~+75℃
– IP Code: IP40

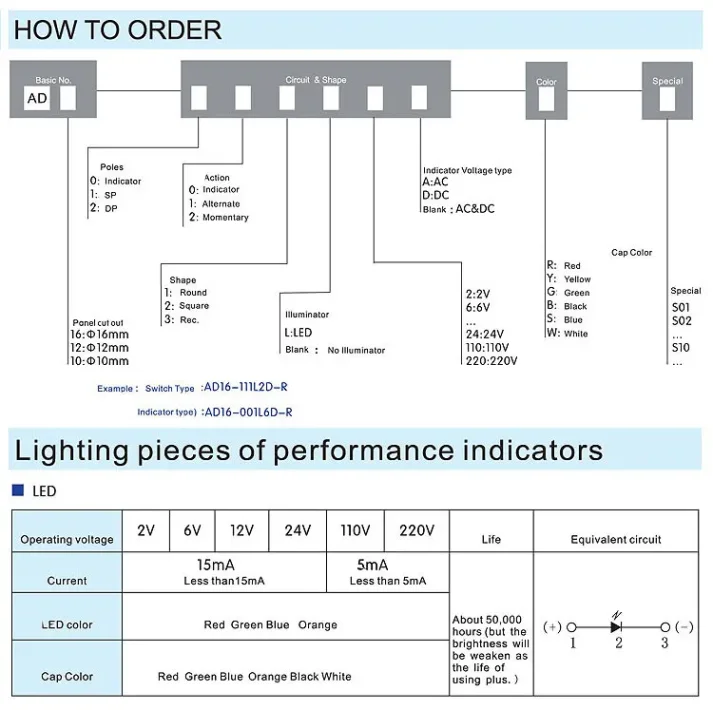

– LED Indication Voltage: 2V, 6V, 12V, 24V, 110V, 220V

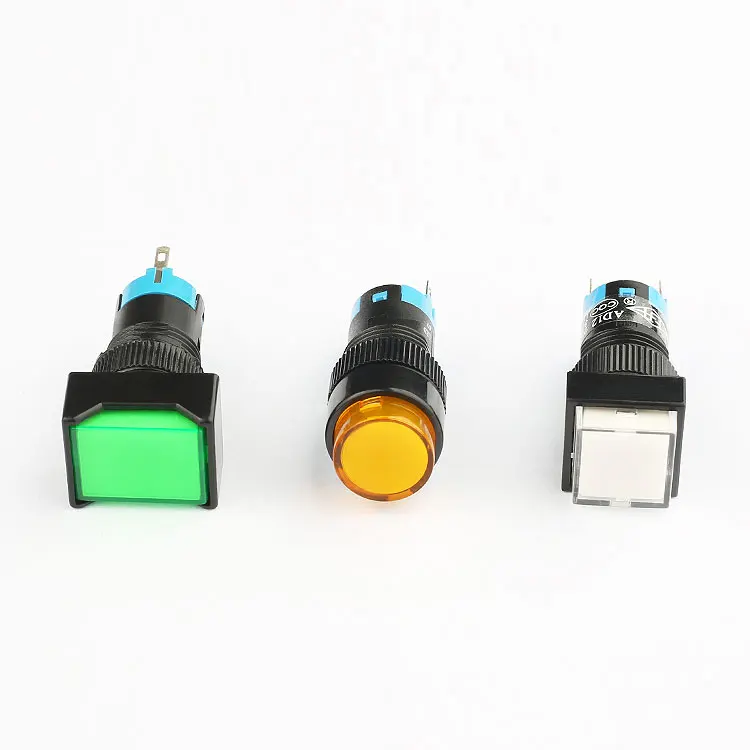

– Available Colors: Red, Green, Yellow, Blue, Orange, White
Our LED Illuminated Push Button stands out with its high durability, low contact resistance, and excellent insulation properties. It is ideal for use in industrial controls, gaming machines, audio equipment, and more. As a factory supplier, we offer competitive wholesale prices and ensure the highest quality standards. We also provide excellent after-sales service to ensure your satisfaction.
| Max. Rating Current & Voltage (Resistive Load) |
3A 250V AC indicator light |
| Contact Resistance | ≤50mΩ |
| Insulation Resistance | ≥100MΩ 220 volt led indicator lights |
| Dielectric Resistance | 1,500V |
| Electronic life(cycles) | Momentary:50,000 Alternate:25,000 |
| Mechanical life(cycles) | Momentary:200,000 Alternate:50,000 |
| Certification |
CQC , CE |
| Operating temperature | -5℃~+75℃ |
| IP code | IP40 |
Why Choose Our LED Illuminated Push Button?
Our LED Illuminated Push Button offers superior performance and durability, making it ideal for various applications. The LED illumination enhances visibility, especially in low-light conditions, while the high-pressure square laser technology ensures reliable operation. As a factory supplier, we offer competitive wholesale prices and high-quality products.
What Are the Key Features?

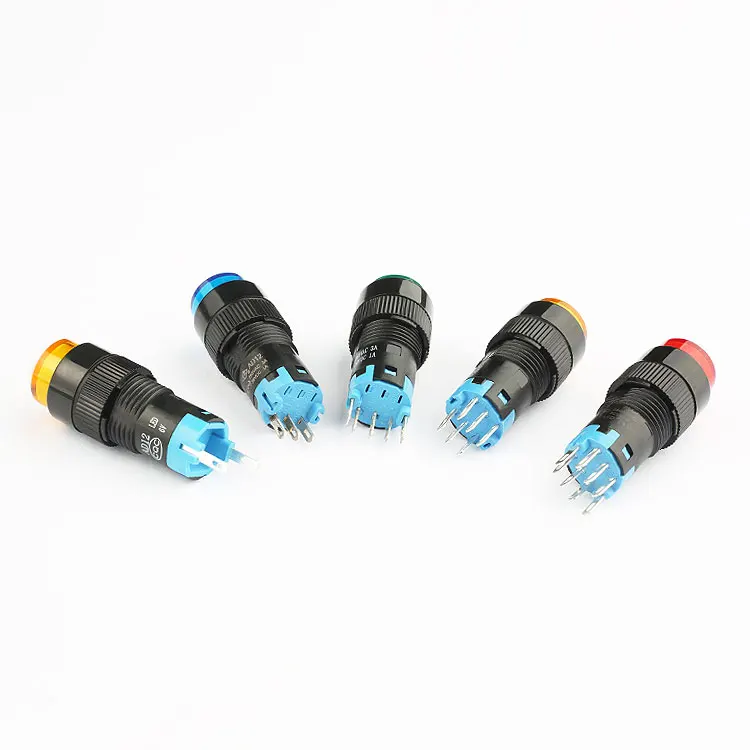

Key features include a 12mm size, 3A 250VAC rating, low contact resistance (≤50mΩ), and excellent insulation properties (≥100MΩ). It also has a long electronic and mechanical life, ensuring reliability over time. The push button is available in multiple colors to suit your needs.
What Are the Applications?
This push button is suitable for use in industrial controls, gaming machines, audio equipment, and more. Its durable construction and reliable performance make it a popular choice among professionals and enthusiasts alike.
