Description
Key Features:
- Max. Rating Current: 3A
- Max. Voltage: 250V AC
- Indicator Voltage Options: 2V, 6V, 12V, 24V, 110V, 220V
- Contact Resistance: ≤50mΩ
- Insulation Resistance: ≥100MΩ
- Dielectric Strength: 1,500V
- Electronic Life: 50,000 cycles (momentary), 25,000 cycles (alternate)
- Mechanical Life: 200,000 cycles (momentary), 50,000 cycles (alternate)
- Certifications: CQC, CE
- Operating Temperature: -5℃ to +75℃
- IP Rating: IP40
Our switches are ideal for industrial controls, machinery, automotive applications, and more. With 60 senior engineers, an injection molding workshop, and a perfect development process, we ensure high-quality products that meet your specific requirements. Customization is available for bulk orders, allowing you to get the exact switch you need.
We stand behind our products with excellent customer service and after-sales support. Choose us for reliable, factory-direct wholesale pricing and superior quality.
| Max. Rating Current & Voltage (Resistive Load) |
3A 250V AC indicator light |
| Contact Resistance | ≤50mΩ |
| Insulation Resistance | ≥100MΩ 220 volt led indicator lights |
| Dielectric Resistance | 1,500V |
| Electronic life(cycles) | Momentary:50,000 Alternate:25,000 |
| Mechanical life(cycles) | Momentary:200,000 Alternate:50,000 |
| Certification |
CQC , CE |
| Operating temperature | -5℃~+75℃ |
| IP code | IP40 |

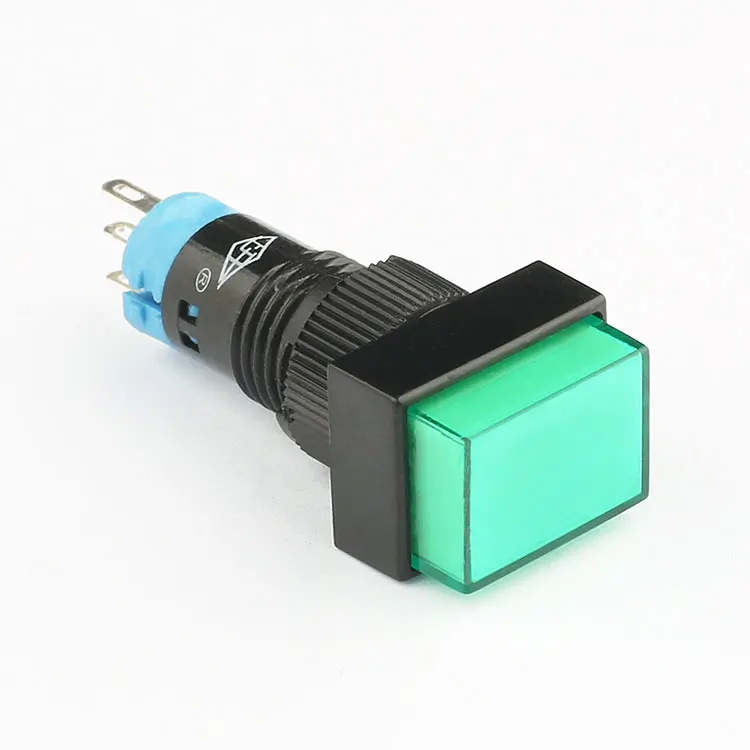

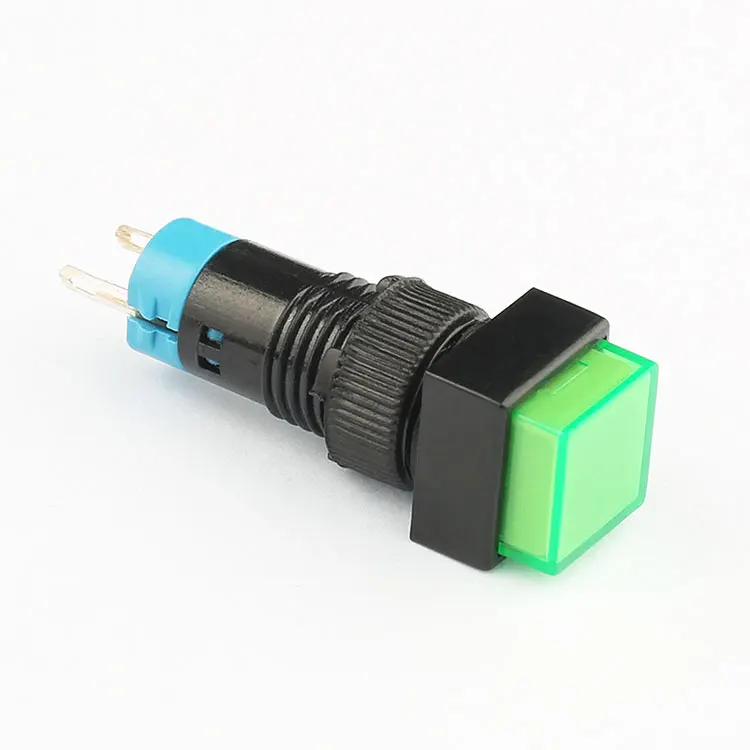

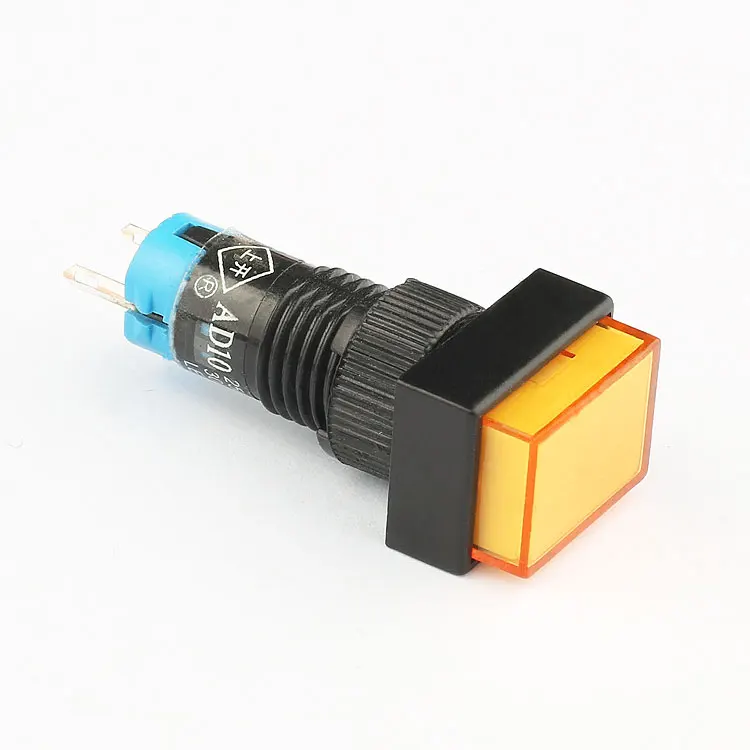

Why Choose Our LED Square Mini Push Button Switch?
Our LED square mini push button switch stands out due to its high-quality construction, customizable options, and factory-direct pricing. With a clear LED indicator and multiple color choices, it ensures visibility and versatility in various applications. The durable design and long mechanical life make it ideal for industrial and automotive use.
What Are the Key Features of Our Switch?

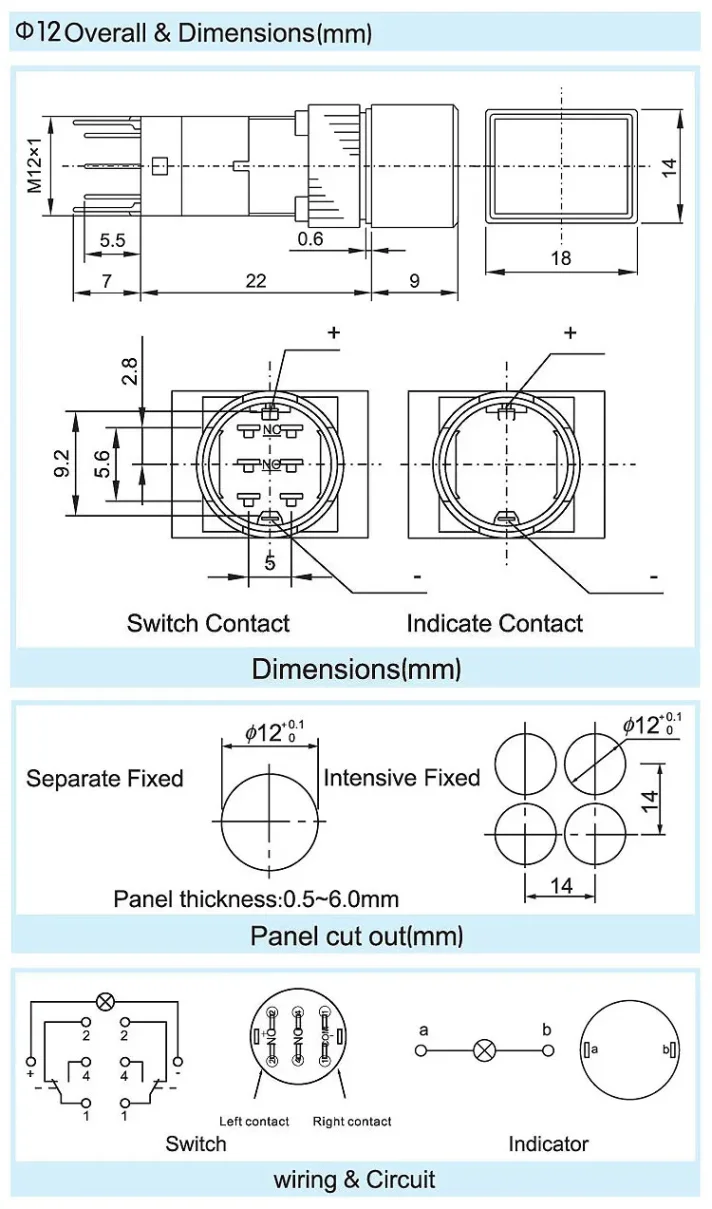

Key features include a 3A max. rating current, 250V AC max. voltage, and a panel cutout of 12mm for easy installation. It also offers a wide range of indicator voltage options, from 2V to 220V, and has certifications like CQC and CE for quality assurance.
Can We Customize the Switch for Our Needs?
Yes, as a factory and supplier, we offer customization services for bulk orders. Whether you need a specific color, switch head shape, or other modifications, we can tailor the switch to meet your exact requirements.
