Description
Our switch stands out with its mechanical life of 50,000 cycles and electronic life of 10,000 cycles, offering exceptional durability. It boasts a contact resistance of ≤50mΩ and insulation resistance of ≥1000MΩ, ensuring safety and efficiency. The dielectric strength of 1500VAC for 1 minute further guarantees its reliability.

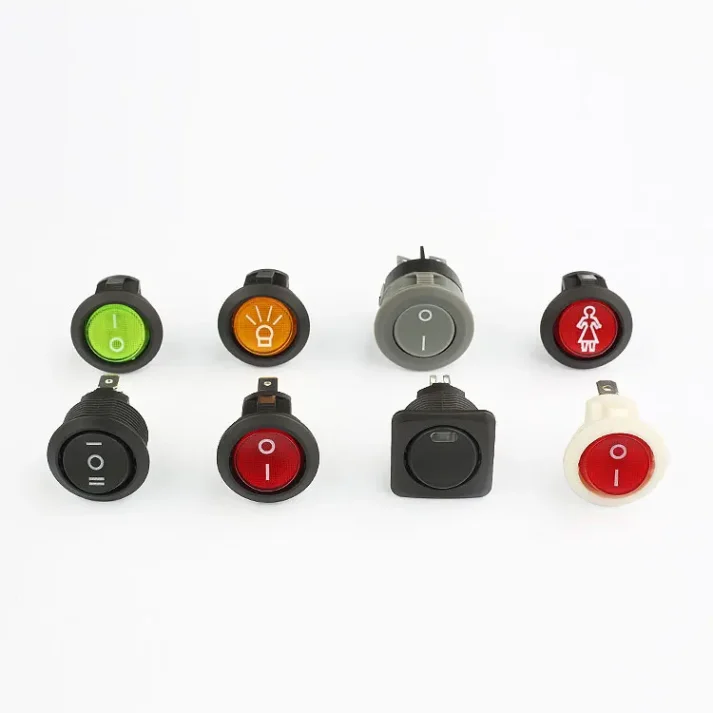

Available in a variety of colors including red, yellow, green, black, blue, orange, white, and gray, it can be customized to match your equipment’s aesthetic. The operating temperature range of 0~55℃, 0~85℃, and 0~105℃ makes it suitable for diverse environments.
As a factory supplier, we offer competitive wholesale prices and ensure prompt delivery. Our switch is CQC, CE, CB, ENEC17, and ROHS certified, meeting international quality standards. Choose us for reliable, high-quality marine rocker switches that will exceed your expectations.
|
item
|
value
|
|
Place of Origin
|
Shanghai, China
|
|
Brand Name
|
SK(shangkai) Yongxing
|
|
Model Number
|
KCD8-11-CB1A-B-B-01
|
|
Current Rating
|
6A 10A
|
|
Voltage Rating
|
250V AC
|
|
Mechanical Life
|
50000 Cycles
|
|
Contact Resistance
|
≤50mΩ
|
|
Insulation Resistance
|
≥1000MΩ
|
|
Dielectric Strength
|
1500VAC 1 Minute
|
|
Electronic Life (cycles)
|
10,000
|
|
Certificate
|
CQC CE CB ENEC17 ROHS
|
|
Circuit
|
SPST
|
|
Dimension Code
|
B1
|
|
Contact Piece Code
|
A
|
|
Lamp voltage
|
6v/12v/24v/110v/220v
|
Why Choose Our Marine Rocker Switch?
Our Marine Rocker Switch is designed for durability and reliability, making it ideal for marine and electric equipment applications. With a long mechanical life of 50,000 cycles and electronic life of 10,000 cycles, it ensures consistent performance over time.
What Are the Key Features?
Key features include a 2/3 position, SPST circuit configuration, with a maximum current rating of 6A/10A and a voltage rating of 250V AC. It also offers a contact resistance of ≤50mΩ and insulation resistance of ≥1000MΩ, ensuring safety and efficiency.
What Makes Our Switch Stand Out?
Our switch is factory-direct, offering wholesale prices and prompt delivery. It is CQC, CE, CB, ENEC17, and ROHS certified, meeting international quality standards. With a variety of colors available, it can be customized to match your equipment's aesthetic, making it a versatile choice for diverse applications.
