Description
|
item
|
value
|
|
Place of Origin
|
Shanghai,China
|
|
Brand Name
|
SK(shangkai) yongxing
|
|
Model Number
|
KW11-11-A1AA-B
|
|
Max. Current
|
3A
|
|
Max. Voltage
|
250V
|
|
Operating Temperature
|
-25℃~+125℃
|
|
Protection Level
|
IP40 IP65
|
|
Contact Resistance
|
≤50mΩ
|
|
Insulation Resistance
|
≥100MΩ
|
|
Dielectric Strength
|
1500V
|
|
Electrical life
|
50,000
|
|
Operating Temperature Range
|
-25℃~+125℃
|
|
Lever type
|
Short
|
|
Lever Length
|
17.5mm
|
|
Certification
|
CQC ENEC
|
|
Protection Degree
|
IP40, IP65 is also available
|
|
Color
|
Black
|

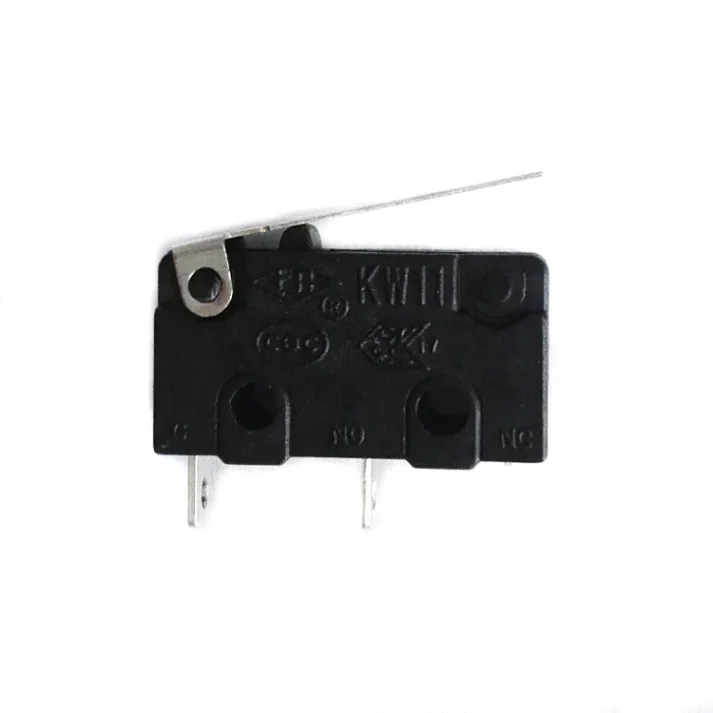

Why Choose Our Mini Micro Switch?
Our Mini Micro Switch is designed with precision and durability in mind, making it an ideal choice for kids scooters, electric cookers, and other household appliances. With a 3A 250V AC rating and IP40/IP65 protection, it ensures reliable performance in various conditions. The 17.5mm lever provides easy operation, while the wide operating temperature range (-25°C to +125°C) allows it to function in extreme environments.
What Makes Our Switch Stand Out?
Our switch stands out due to its superior quality, competitive pricing, and excellent after-sales service. As a factory supplier, we offer wholesale and bulk order options, making it cost-effective for businesses. The switch is certified by CQC and ENEC, ensuring quality and compliance. With a contact resistance ≤50mΩ, insulation resistance ≥100MΩ, and a dielectric strength of 1500V, it provides exceptional safety and reliability.
How Can Our Switch Benefit You?
Our Mini Micro Switch offers long electrical life (50,000 cycles) and is available in black, making it both functional and aesthetically pleasing. Whether you're a manufacturer looking for a reliable component or a retailer seeking high-quality products, our switch is the perfect choice. Choose us for our commitment to quality, competitive pricing, and excellent customer service.
