Description
**Key Specifications**:
– **Max. Current & Voltage**: 5(1)A, 250V AC
– **Mechanical Life**: 100,000 times
– **Operating Temperature**: -25℃ to 125℃
– **Contact Resistance**: ≤50MΩ
– **Insulation Resistance**: ≥100MΩ
– **Electronic Life (Cycles)**: 50,000
– **Circuit Type**: SPDT
– **IP Level**: IP40
– **Material**: High-grade plastic
– **Color**: Black
**Advantages**:
– **High Durability**: With a mechanical life of 100,000 times, this switch is built to last.
– **Wide Temperature Range**: Suitable for use in various environments, from cold to hot climates.
– **Low Contact Resistance**: Ensures efficient electrical performance.
– **IP40 Protection**: Provides basic protection against solid objects larger than 1mm.
**Applications**:
– Industrial machinery
– Electric power systems
– Household appliances
– Telecommunication equipment
**Why Choose Us?**
– We are a direct factory supplier, offering competitive wholesale prices.
– High-quality materials and rigorous testing ensure product reliability.
– Fast shipping and excellent customer service.
– Customizable options available for bulk orders.
|
contact resistance
|
≤50MΩ
|
electronic life（cycles）
|
50000
|
|
insulation resistance
|
≥100MΩ
|
operating temperature
|
25T125
|
|
dielectric strength
|
1500V
|
max.rated current & voltage
|
5(1)A 250V AC
|

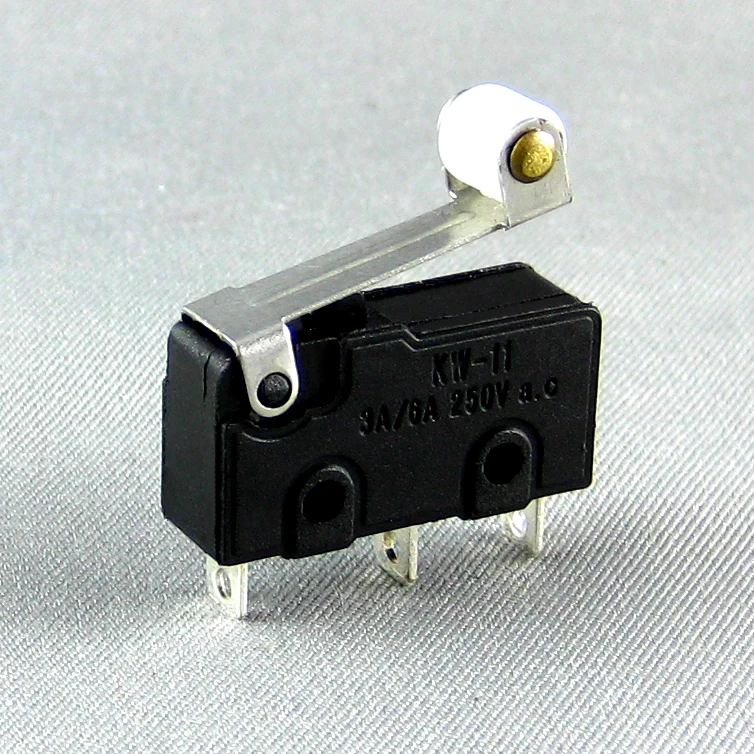

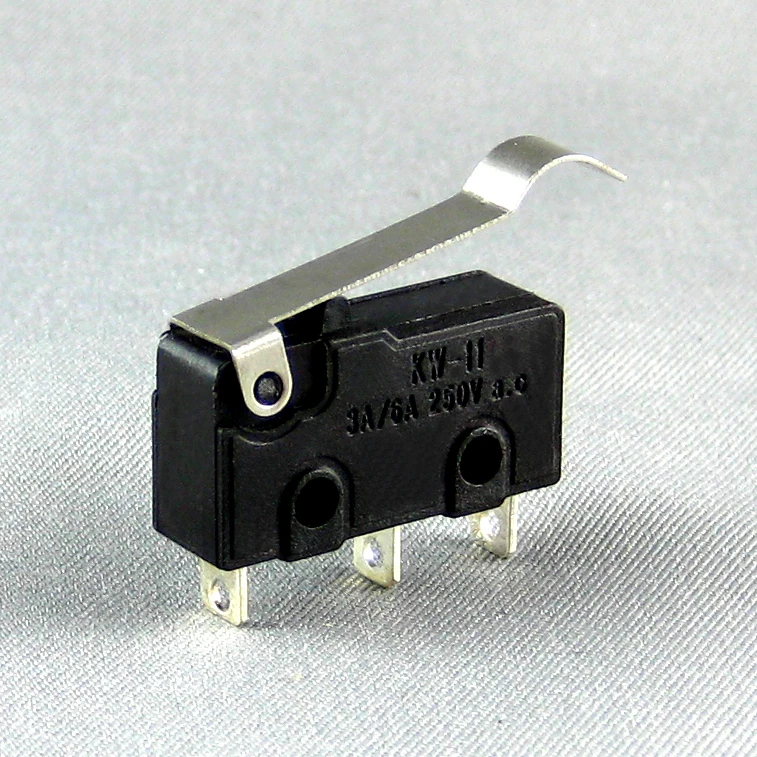

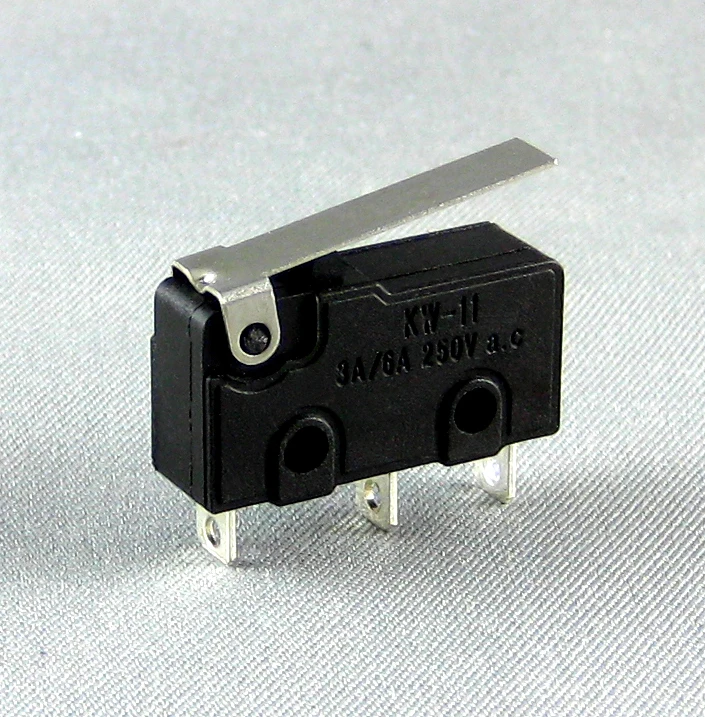

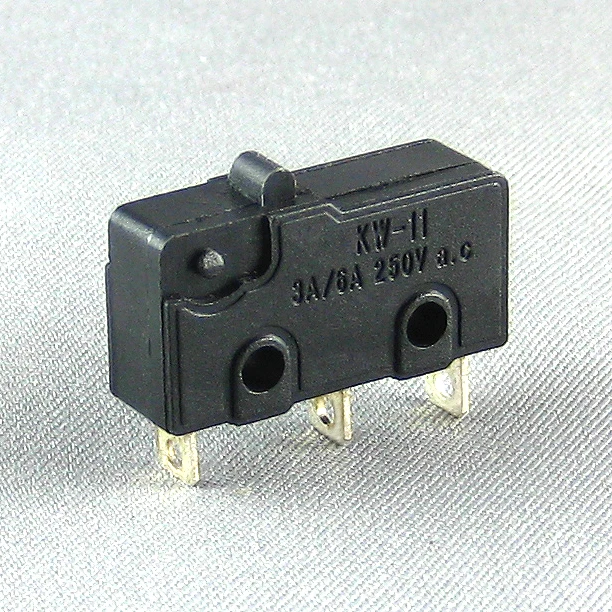

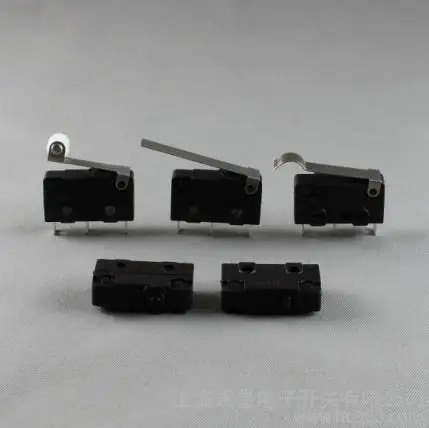

Why Choose Our Miniature Lever Limit Switch?
Our Miniature Lever Limit Switch stands out due to its high durability, with a mechanical life of 100,000 times, ensuring long-lasting performance. It operates efficiently across a wide temperature range (-25℃ to 125℃), making it suitable for various environments. The low contact resistance guarantees reliable electrical connections, while the IP40 protection level offers basic defense against solid objects.
Key Applications
This switch is perfect for vacuum cleaners, industrial machinery, electric power systems, and household appliances. Its versatility and reliability make it a top choice for manufacturers and DIY enthusiasts alike.
Factory Wholesale Advantage
As a direct factory supplier, we offer competitive wholesale prices without compromising on quality. Our rigorous testing process ensures that each switch meets high standards, and we provide fast shipping and excellent customer service to support your needs.
