Description
|
contact resistance
|
≤50MΩ
|
electronic life（cycles）
|
10000
|
|
insulation resistance
|
≥100MΩ
|
operating temperature
|
-25℃ to +55℃
|
|
dielectric strength
|
1500V AC 1min
|
IP code
|
IP40
|
Key Features and Benefits

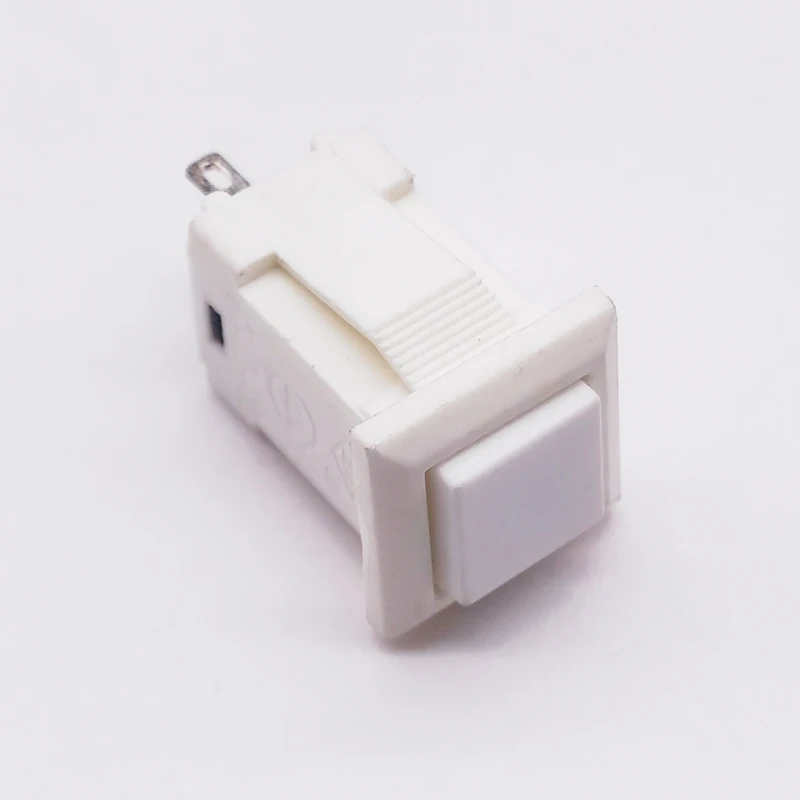

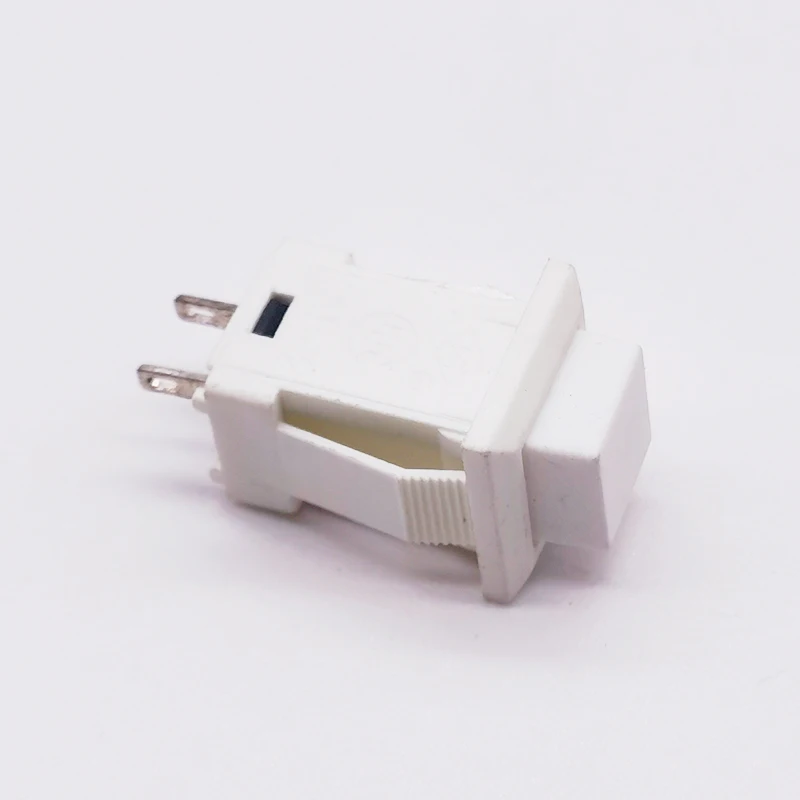

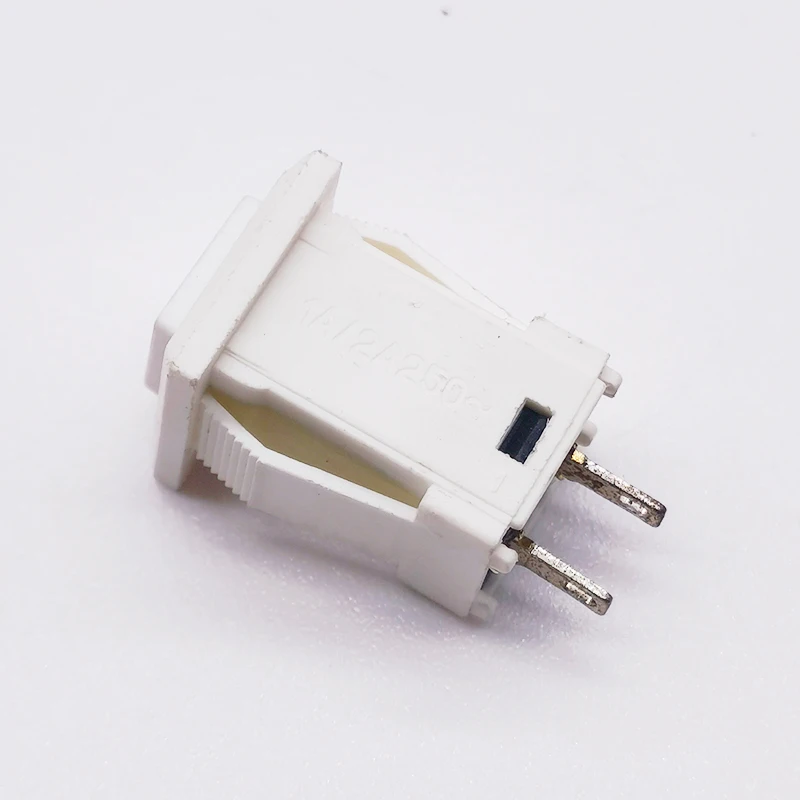

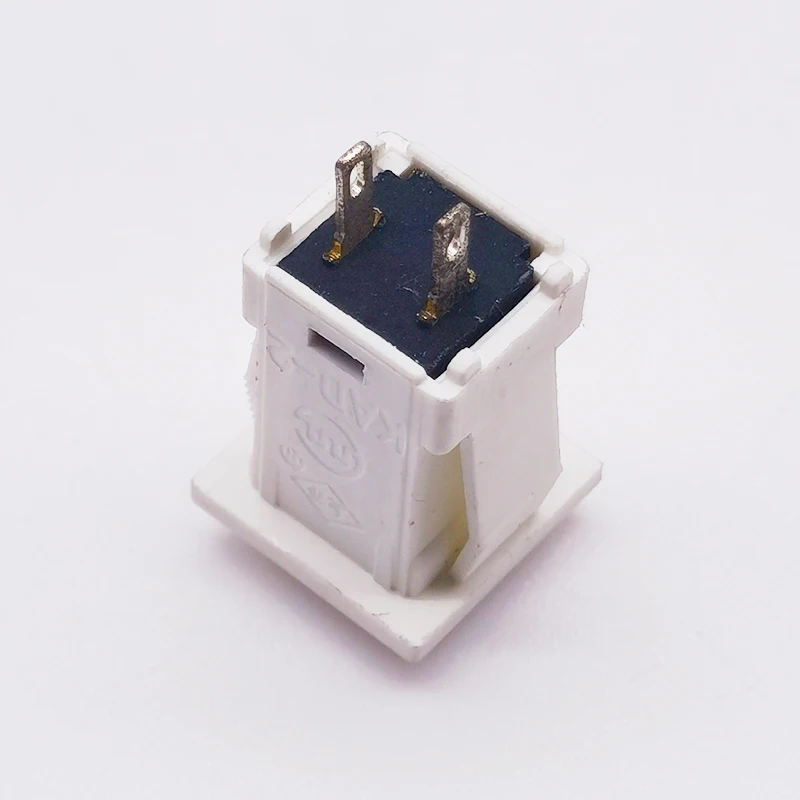

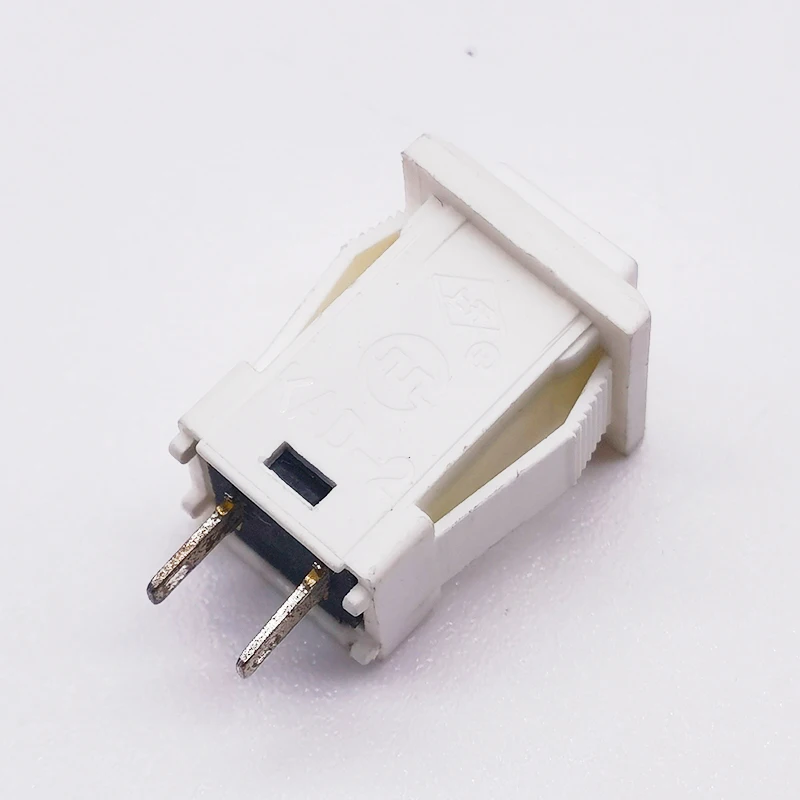

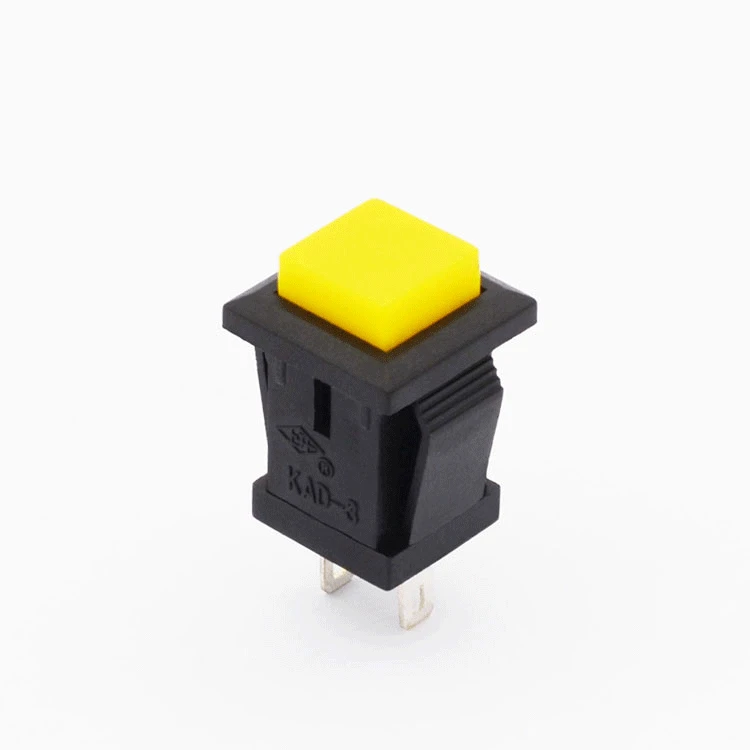

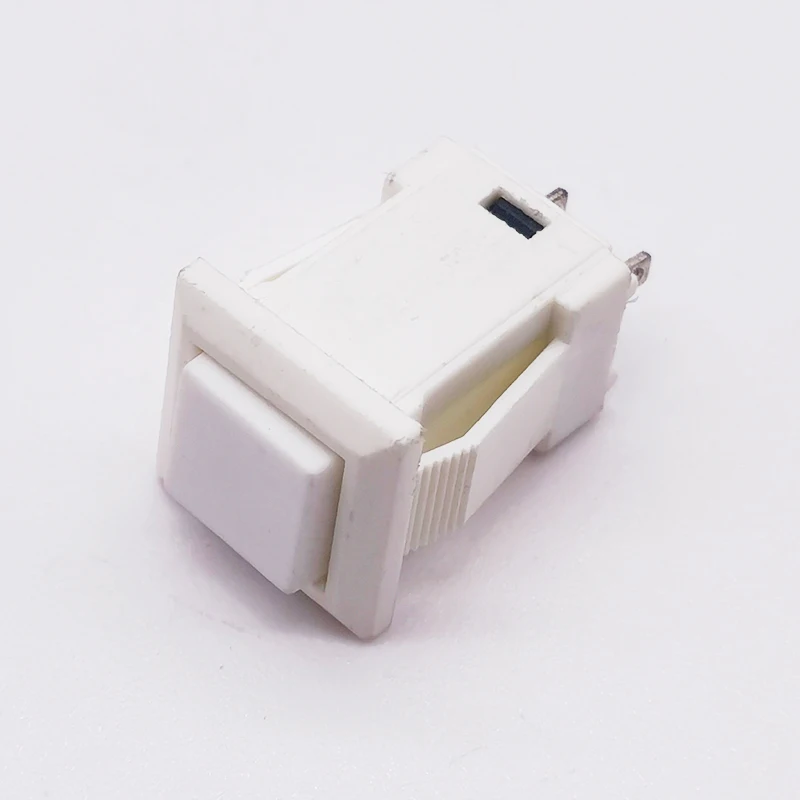

Our Plastic 12.5x11mm Latching Push Button Switch is a durable and reliable choice for electronic applications. With its latching function, it maintains the set position until toggled again, providing stability and convenience. The switch is designed to handle a max current of 1A and max voltage of 250V, making it suitable for a variety of uses.
Why Choose Our Switch?
As a factory and direct supplier, we offer competitive wholesale pricing without compromising on quality. Our switch is CQC and CE certified, ensuring it meets international safety standards. With an electrical life of 50,000 cycles, it offers long-lasting performance, reducing the need for frequent replacements.
Applications and Versatility
This switch is ideal for electric, home appliance, and industrial control applications. Its compact size and robust design make it easy to integrate into various systems. The IP40 rating provides protection against dust and other contaminants, ensuring reliable operation in diverse environments.
