Description
|
contact resistance
|
≤50MΩ
|
electronic life（cycles）
|
10000
|
|
insulation resistance
|
≥100MΩ
|
mechanical life（cycles）
|
50000
|
|
dielectric strength
|
1500V
|
operating temperature
|
25T55
|
|
IP code
|
IP40
|
max.rating current & voltage
|
3A 250V AC
|

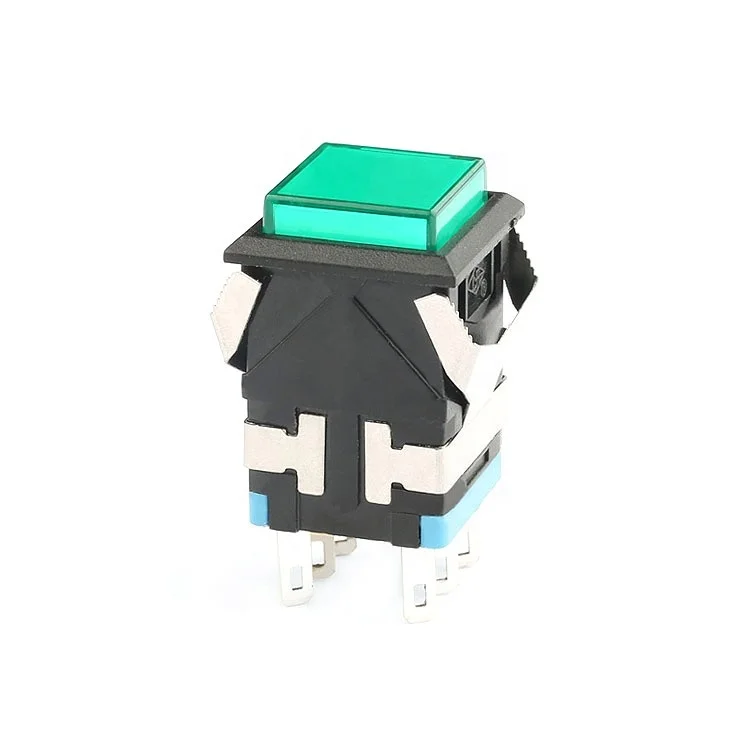

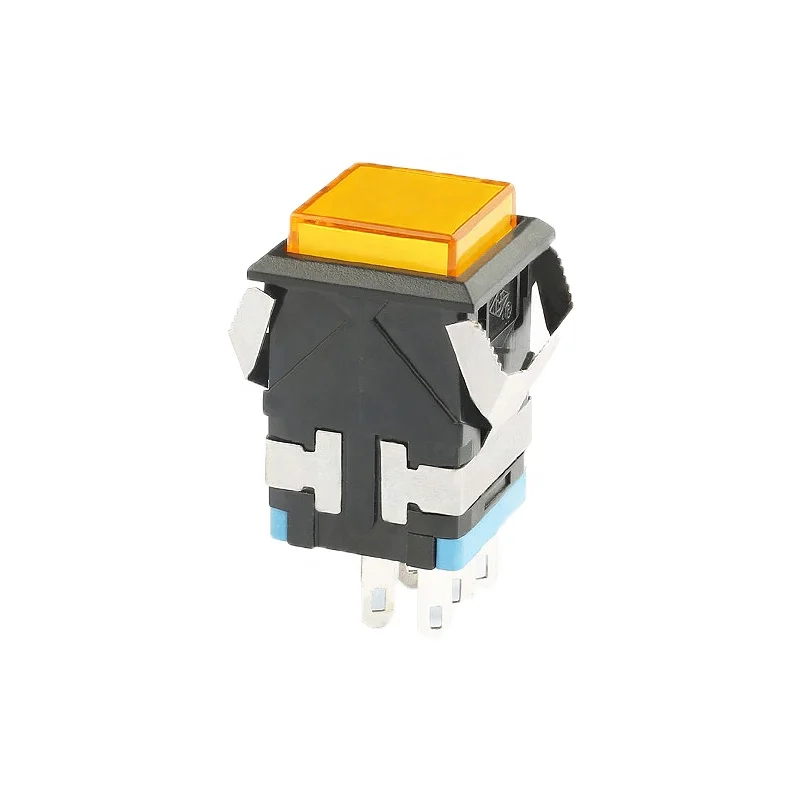

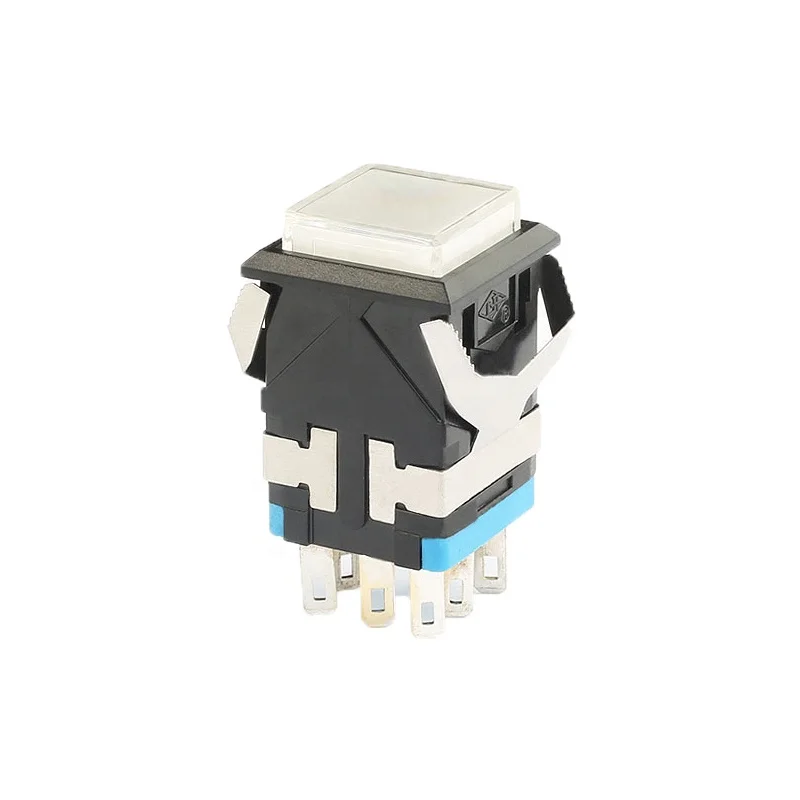

Why Choose Our LED Push Button Switch?
Our LED Push Button Switch stands out for its durability, versatility, and high-quality construction. With a factory-direct supply, we ensure competitive pricing and excellent customer service. The switch's 2NO2NC latching momentary design, combined with an LED indication, makes it perfect for a wide range of applications, from electronic controls to industrial machinery.
What Are the Key Features?
Key features include a contact resistance of ≤50mΩ, insulation resistance of ≥100mΩ, and a dielectric strength of 1500V. It operates within a temperature range of -25℃ to +55℃ and is rated for 3A 250V AC. The built-in LED light, available in multiple voltages, provides clear visual feedback, enhancing usability.
How Does It Compare to Competitors?
Our switch offers superior durability with an electrical life of 10,000 cycles and a mechanical life of 50,000 cycles. The compact 17mm size and IP40 protection level make it ideal for space-constrained environments. As a factory supplier, we ensure consistent quality and reliable performance, setting us apart from competitors.
