Description

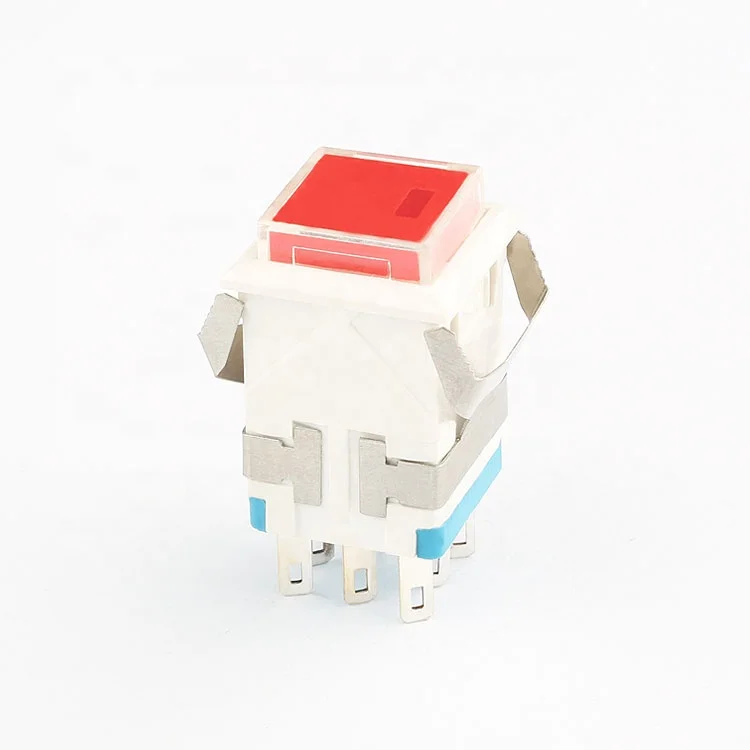

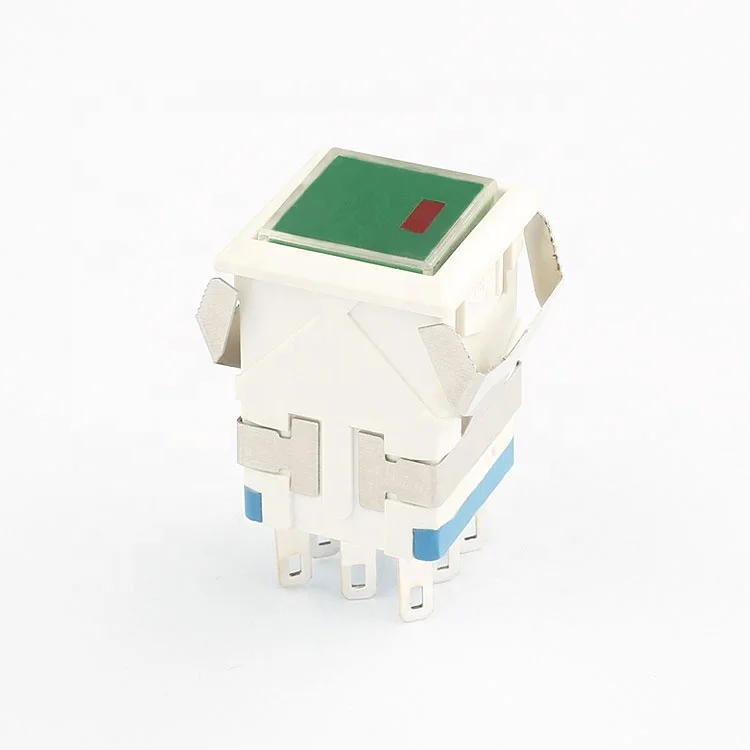

Our switch is made of durable plastic, ensuring long-lasting performance. It features a square light-emitting surface, making it visually appealing and easy to locate in low-light conditions. With 2NO2NC latching and momentary options, it provides flexibility for various applications. The built-in LED light adds a touch of modernity and functionality, making it ideal for use in industrial controls, automation systems, and more.
Key specifications include a contact resistance of ≤50mΩ, insulation resistance of ≥100mΩ, and dielectric strength of 1500V. It can handle a maximum current of 3A and a voltage of 250V AC, with an electrical life of 10,000 cycles and a mechanical life of 50,000 cycles. The operating temperature range is -25℃ to +55℃, and it has an IP40 protection level.
What sets our switch apart is its compact size (17mm) and the availability of different lamp voltages (6V, 12V, 24V) and currents (≤15mA). The blue color adds a vibrant touch, making it stand out in any setup. As a factory supplier, we offer competitive wholesale prices and excellent customer service. We provide after-sales support to ensure your satisfaction. Choose our Plastic Square LED Push Button Switch for reliable performance and great value!
|
contact resistance
|
≤50MΩ
|
electronic life（cycles）
|
10000
|
|
insulation resistance
|
≥100MΩ
|
mechanical life（cycles）
|
50000
|
|
dielectric strength
|
1500V
|
operating temperature
|
25T55
|
|
IP code
|
IP40
|
max.rating current & voltage
|
3A 250V AC
|
Why Choose Our Plastic Square LED Push Button Switch?
Our Plastic Square LED Push Button Switch stands out due to its durable plastic construction, ensuring longevity and reliability. The square light-emitting surface and built-in LED light make it easy to locate and use in various applications, from industrial controls to automation systems.
What Are the Key Features of Our Switch?
Key features include a contact resistance of ≤50mΩ, insulation resistance of ≥100mΩ, and dielectric strength of 1500V. It can handle a maximum current of 3A and a voltage of 250V AC, with an electrical life of 10,000 cycles and a mechanical life of 50,000 cycles. The switch also offers a wide operating temperature range (-25℃ to +55℃) and an IP40 protection level.
What Makes Our Switch Different from Others?
Our switch is compact (17mm) and available with different lamp voltages (6V, 12V, 24V) and currents (≤15mA), providing flexibility for various needs. The blue color adds a vibrant touch, making it visually appealing. As a factory supplier, we offer competitive wholesale prices and excellent customer service, ensuring you get the best value for your money.
