Description
Product Specifications:
- Material: Contact – Brass, Tin Plated; Housing – PA66, 94V-0
- Number of Contacts: 1 – 10
- Conductor Size: 5 – 10 AWG
- Type: PCB
- Color Options: Red, Yellow, Green, Black, White, Blue, Gray, Orange
- Rated Voltage: 300V
- Rated Current: 16A
- Operating Temperature: -40°C to +150°C
- Short-time Temperature: +250°C for 5 sec
- Contact Resistance: 20mΩ
- Insulation Resistance: >5000MΩ DC500V
- Withstanding Voltage: AC2000V/Min
- Certifications: CCC, CQC, CE, RoHS, ENEC, KEMA
Product Advantages:
- Durable and long-lasting PA66 housing with UL94V-0 flame retardancy.
- Wide range of color options to suit different applications.
- High rated voltage and current capabilities for reliable performance.
- Excellent insulation and contact resistance for enhanced safety.
- Meets multiple international certifications for quality assurance.
After-sales Service: We provide comprehensive after-sales support, including technical assistance and warranty services. Our dedicated customer service team is always ready to help you with any questions or concerns.
Choose our Factory Wholesale Quick PCB Terminal Block Connector for a reliable, high-quality, and cost-effective solution for your electrical connection needs.
| Material | |
| Contact | Brass, Tin Plated |
| Housing | PA66 ,94V-0 |
| Color | Green 10 pin connectors |
| Environmental | |
| Operating temperature | -40°C ~ 150°C |
| Short-time temperature | +250°C for 5 sec |
| Electrical | |
| Rated voltage | 300V |
| Rated current | 16A screw clamp wire connectors |
| Contact resistance | 20mΩ |
| Insulation resistance | >5000MΩ DC500V |
| Withstanding voltage | AC2000V/Min terminal connectors |

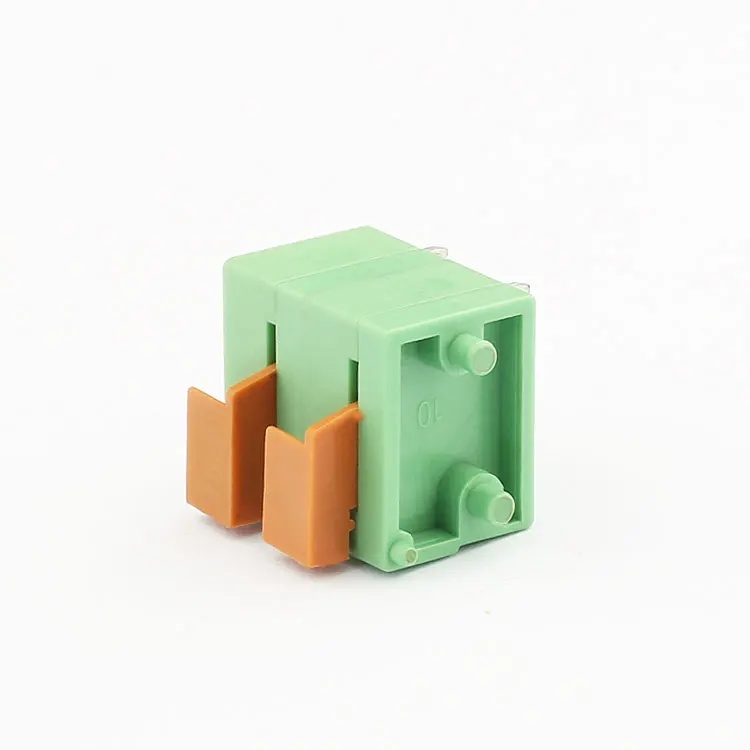

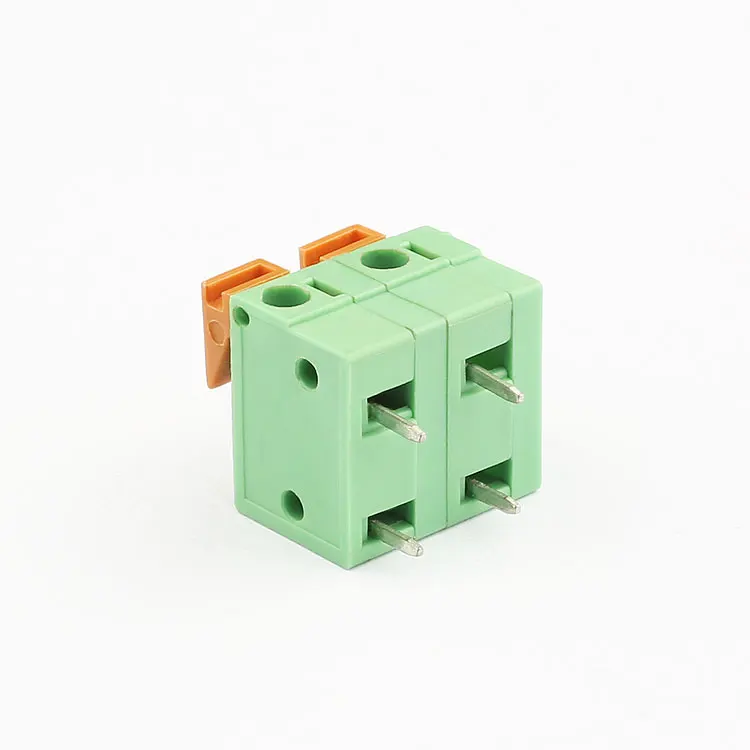

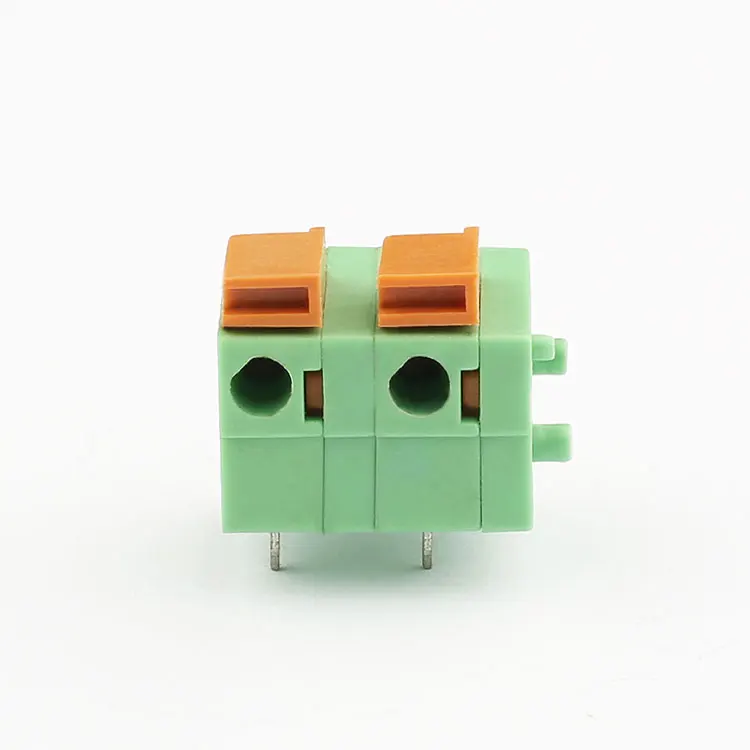

Why Choose Our Quick PCB Terminal Block Connector?
Our Quick PCB Terminal Block Connector offers a fast and reliable connection solution for electrical wiring in PCB applications. With its durable PA66 housing and high-quality brass contacts, it ensures long-lasting performance and safety.
What Makes Our Product Stand Out?
Our product stands out due to its wide range of color options, high rated voltage and current capabilities, and excellent insulation and contact resistance. It also meets multiple international certifications, providing you with peace of mind regarding quality and safety.
How Can We Help You?
As a factory supplier, we offer competitive pricing and bulk purchasing options. Our dedicated customer service team is always available to assist you with any questions or concerns, ensuring a smooth purchasing experience.
