Description
max.rating cnrrent&voltage
|
2a 250vac
|
||
contact resistance
|
<50mΩ
|
||
insulation resistance
|
>100mΩ
|
||
dielectrice resistance
|
1500V
|
||
mechanical ife
|
50000
|
||
electronic life
|
10000
|
||
operating temperature
|
-25℃ to +55℃
|
||
CQC,CE
|

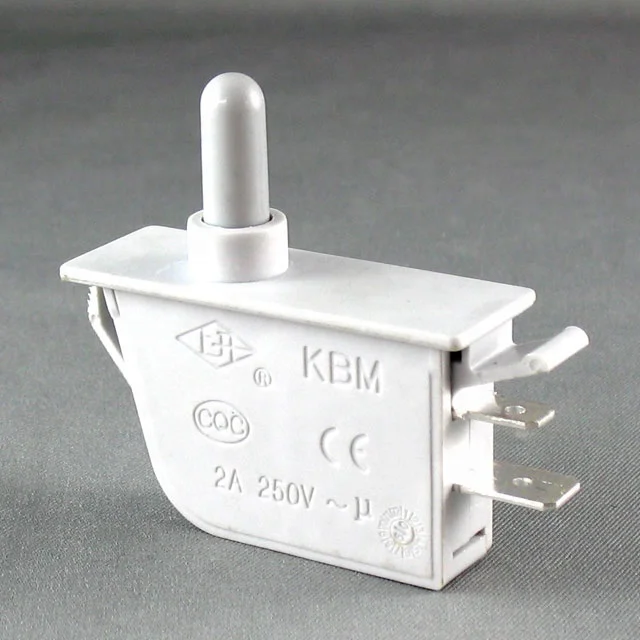

Why Choose Our Refrigerator Door Light Switch?
Our Refrigerator Door Light Switch is designed with reliability and durability in mind. With a normal open/normal close function, it ensures consistent performance, making it ideal for refrigerator applications. The switch's high current and voltage ratings, along with excellent contact and insulation resistance, guarantee safe and efficient operation.
What Makes Our Switch Stand Out?
As a factory-direct supplier, we offer wholesale prices without compromising on quality. Our switch is CQC, CE, and ROHS certified, meeting international standards. With over 60 senior engineers and advanced production facilities, we can customize the switch to your specific needs, ensuring a perfect fit for your refrigerator.
What Are the Key Specifications?
Our switch has a maximum current rating of 2A and a voltage of 250VAC. It features a contact resistance of less than 50mΩ, an insulation resistance exceeding 100mΩ, and a dielectric resistance of 1500V. With a mechanical life of 50,000 cycles and an electronic life of 10,000 cycles, it's built to last. Choose our Refrigerator Door Light Switch for quality, reliability, and customization options.
