Factory Wholesale RS1 4-6 Position Industrial Rotary Switch for Oven

1,000 - 2,999  pieces
$0.50

>= 3,000  pieces
$0.48

0 reviews

Factory Wholesale RS1 Rotary Switch – 4-6 Pos, Ideal for Ovens

Description

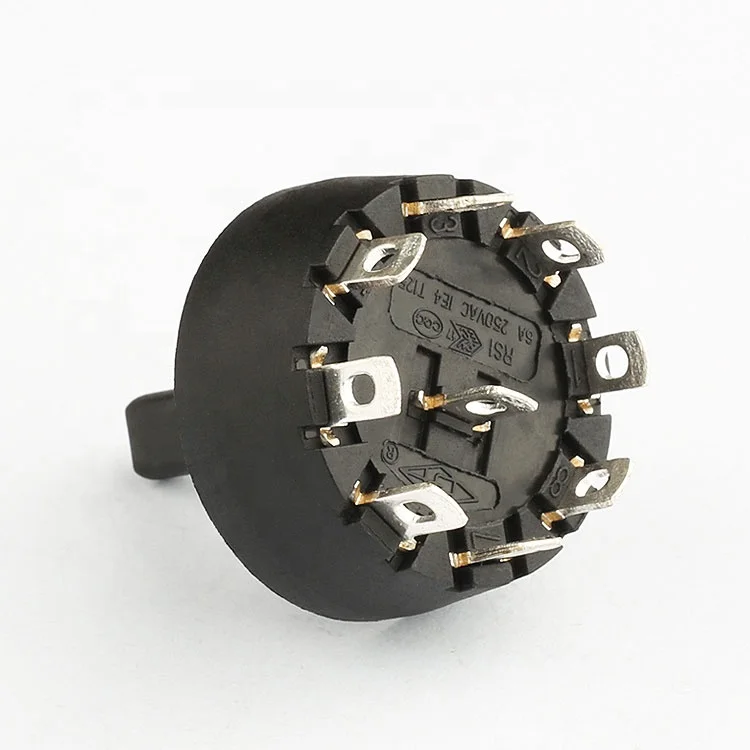

Introducing our RS1 Industrial Rotary Switch, a top-notch product from Shanghai Yongxing, a leading factory and supplier in China. This switch is designed specifically for ovens, offering 4 to 6 positions to meet diverse needs. With a maximum current of 6A and a voltage rating of 250V AC, it ensures reliable performance. The switch features a contact resistance of less than 50mΩ, an insulation resistance greater than 100mΩ, and a dielectric resistance of 1500V, guaranteeing safety and durability. It has an electronic life of 10,000 cycles and an operating temperature of T125, making it suitable for various environments. Our factory boasts independent plants, injection workshops, and advanced experimental equipment, ensuring high-quality production. We have over 60 senior engineers and all workshops adhere to 5S and 5m management standards. As a factory direct supplier, we offer wholesale prices and customization services to meet your specific requirements. Choose our RS1 Industrial Rotary Switch for its superior quality, competitive pricing, and reliable performance.
max.rating cnrrent&voltage
6a 250vac
contact resistance
<50mΩ
insulation resistance
>100mΩ
dielectrice resistance
1500V
electronic life
10000
operating temperature
T125
CQC,ENEC

Electronic component for cross-border e-commerceElectronic device for cross-border e-commerceElectronic gadget for cross-border e-commerce


Why Choose Our RS1 Industrial Rotary Switch?

Our RS1 Industrial Rotary Switch stands out for its reliability, durability, and versatility. Designed specifically for ovens, it offers 4 to 6 positions to meet diverse needs. With a maximum current of 6A and a voltage rating of 250V AC, it ensures stable performance even under demanding conditions.

What Are the Key Features of Our Switch?

Our switch features a contact resistance of less than 50mΩ, an insulation resistance greater than 100mΩ, and a dielectric resistance of 1500V, guaranteeing safety and longevity. It has an electronic life of 10,000 cycles and an operating temperature of T125, making it suitable for various environments.

Why Buy from Us?

As a factory direct supplier, we offer competitive wholesale prices and customization services. Our factory has independent plants, injection workshops, and advanced experimental equipment, ensuring high-quality production. We have over 60 senior engineers and all workshops adhere to 5S and 5m management standards, guaranteeing top-notch products and services.

Push Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch Customized

Additional information

Max. Current

6A

Max. Voltage

250V AC

Place of Origin

Shanghai, China

Brand Name

Shanghai Yongxing

Model Number

RS1-14F-AEH-BBA

Mechanical Life

50000

IP level

IP41

Color

Black

Certification

CQC,ENEC17

Function

4 position

Type

5 pole

Insulation resistance

≥100mΩ

Contact Resistance

≤50mΩ

dielectric Resistance

1500V

operating temperature

T125

Electronic life

10000cycles

Application

Household Electric Appliances

Packaging Details

100 pcs in one OPP box and then put in master carton
