Description
Product Advantages:
1. **Customization**: With enough quantity, we can customize the micro switch to meet your unique needs.
2. **Advanced Facilities**: Our company boasts an independent plant, injection workshop, and advanced experimental equipment.
3. **Experienced Team**: Over 60 senior engineers ensure top-notch quality and innovation.
4. **5S and 5M Management**: All workshops adhere to strict 5S and 5M management standards for efficiency and quality.
Product Specifications:
– Max. Current: 16A
– Max. Voltage: 250V
– Operating Temperature: -25℃ to +125℃
– IP Level: IP40
– Color: Black
– Electrical Life: 50,000 cycles
– Circuit: SP-DT 1 NO 1 NC
– Contact Resistance: ≤50mΩ
– Insulation Resistance: ≥100MΩ
– Dielectric Strength: 1500V
– Certification: CQC, CE, ENEC
We are confident in the quality of our micro switches and offer reliable after-sales service. Contact us today to discuss your needs and place an order.
|
max.rating cnrrent&voltage
|
16A/15A/10A 250VAC
|
||
|
contact resistance
|
<50mΩ
|
||
|
insulation resistance
|
>1000mΩ
|
||
|
dielectrice resistance
|
1500V
|
||
|
electronic life
|
50000
|
||
|
operating temperature
|
-25℃ TO 125℃
|
||
| certification | CQC, CE, ENEC |

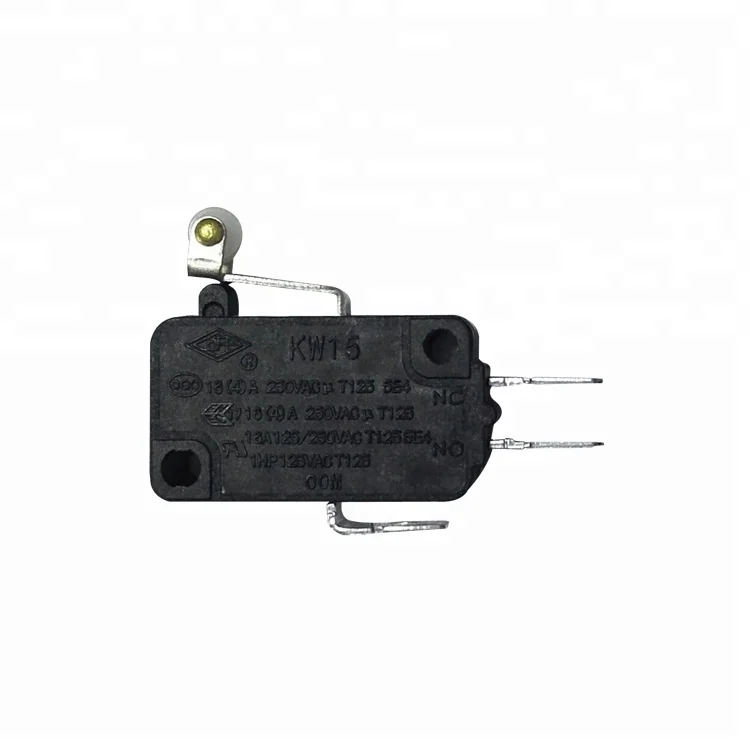

Why Choose Our SP-DT 3 Pin 16A 250V Micro Switch?
Our SP-DT 3 Pin 16A 250V Micro Switch stands out for its high current and voltage ratings, making it ideal for demanding applications. Its customizable design allows you to tailor the switch to your specific needs, ensuring optimal performance.
What Are the Key Features of Our Micro Switch?
Key features include a max current of 16A, a max voltage of 250V, and an electrical life of 50,000 cycles. The switch also boasts a contact resistance of ≤50mΩ and an insulation resistance of ≥100MΩ, ensuring reliable operation.
How Can Our Micro Switch Benefit Your Business?
As a factory wholesale supplier, we offer competitive prices and free samples for bulk orders. Our micro switch's high quality and customization options make it a cost-effective solution for your electrical and industrial needs, helping you enhance product performance and customer satisfaction.
