Description
Our micro switch is CE, ENEC, and UL certified, ensuring compliance with international safety standards. It operates within a temperature range of -25°C to +125°C, with an IP40 protection level, and boasts a contact resistance of ≤50mΩ and an insulation resistance of ≥100MΩ. The dielectric strength is 1500V, and it has an electrical life of 50,000 cycles.
What sets our micro switch apart is its versatility and reliability. It’s perfect for use in coffee machines, water dispensers, washing machines, and more. With an operating force of just 1~3N, it’s easy to integrate into any design. As a trusted supplier, we offer competitive pricing and excellent customer service, ensuring your satisfaction with every purchase.
|
item
|
value
|
|
Place of Origin
|
Shanghai,China
|
|
Brand Name
|
SK(shangkai) yongxing
|
|
Model Number
|
KW15-12-C1AH-BBA
|
|
Max. Current
|
16A
|
|
Max. Voltage
|
250VAC
|
|
Operating Temperature
|
-25℃~+125℃
|
|
Protection Level
|
IP40
|
|
Contact Resistance
|
≤50mΩ
|
|
Insulation Resistance
|
≥100MΩ
|
|
Dielectric Strength
|
1500V
|
|
Electrical Life
|
50,000
|
|
Max. Current & Voltage
|
16A 250VAC T125 5E4 ; 10A 250V T125 5E4
|
|
Certification
|
CQC CE ENEC UL
|
Key Features and Advantages

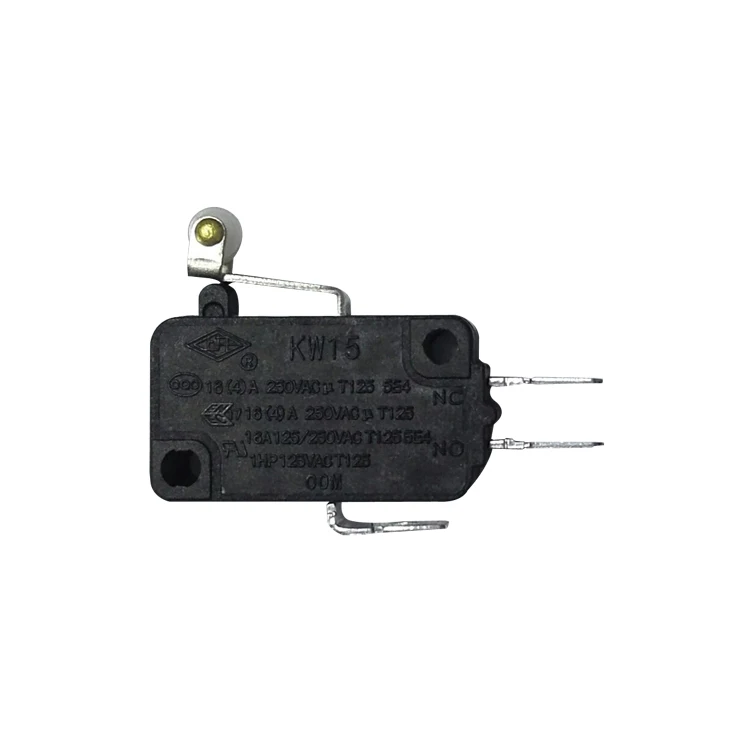

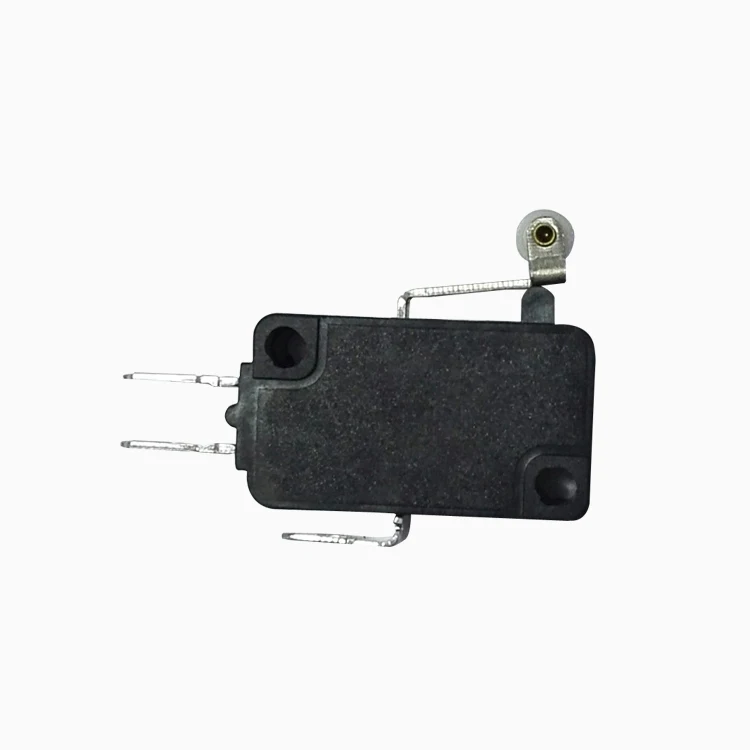

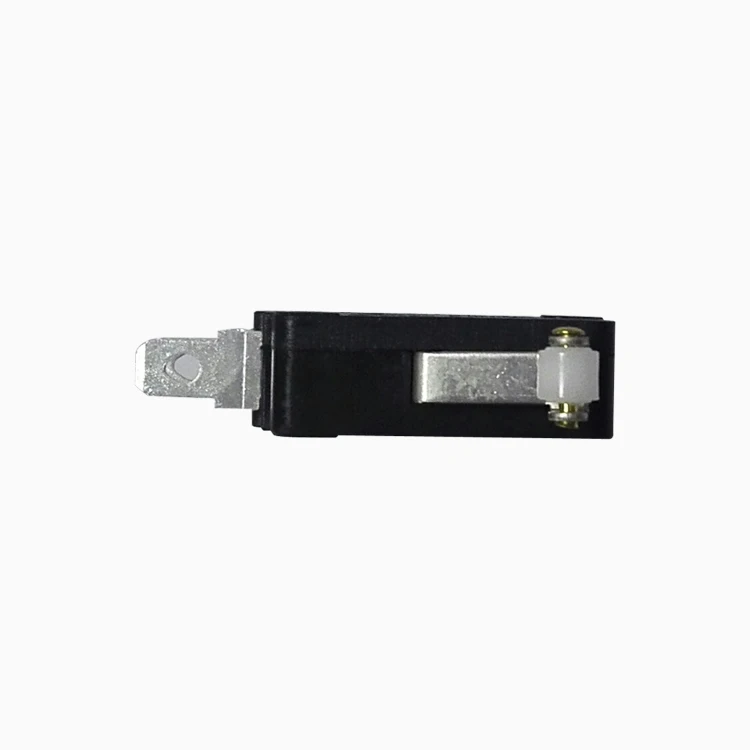

Our SPDT micro switch stands out with its roller lever actuator, high current rating of 16A, and voltage capacity of 250VAC. These features ensure reliable performance in demanding applications. Additionally, its CE, ENEC, and UL certifications guarantee safety and compliance with international standards.
Versatile Applications
This micro switch is perfect for a wide range of uses, including coffee machines, water dispensers, washing machines, and industrial control systems. Its compact design and easy integration make it a versatile choice for any project.
Why Choose Us?
As a factory direct supplier, we offer wholesale pricing and excellent customer service. Our micro switches are built to last, with a durable construction and long electrical life. Trust us for all your micro switch needs, and experience the difference in quality and value.
