Description
|
contact resistance
|
≤50MΩ
|
electronic life（cycles）
|
10000
|
|
insulation resistance
|
≥100MΩ
|
mechanical life（cycles）
|
50000
|
|
dielectric strength
|
1500V
|
operating temperature
|
25T55
|
|
IP code
|
IP40
|
max.rating current & voltage
|
3A 250V AC
|

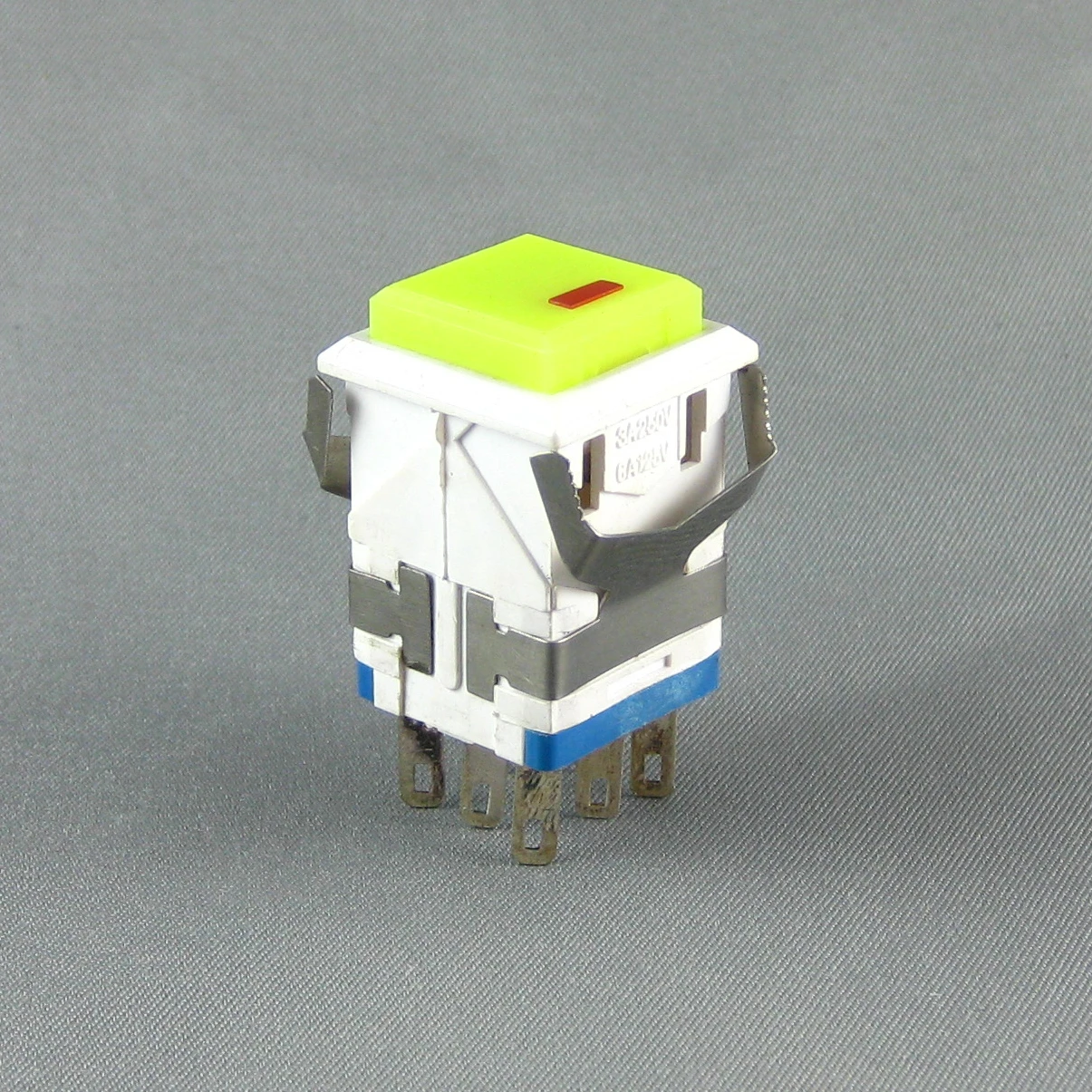

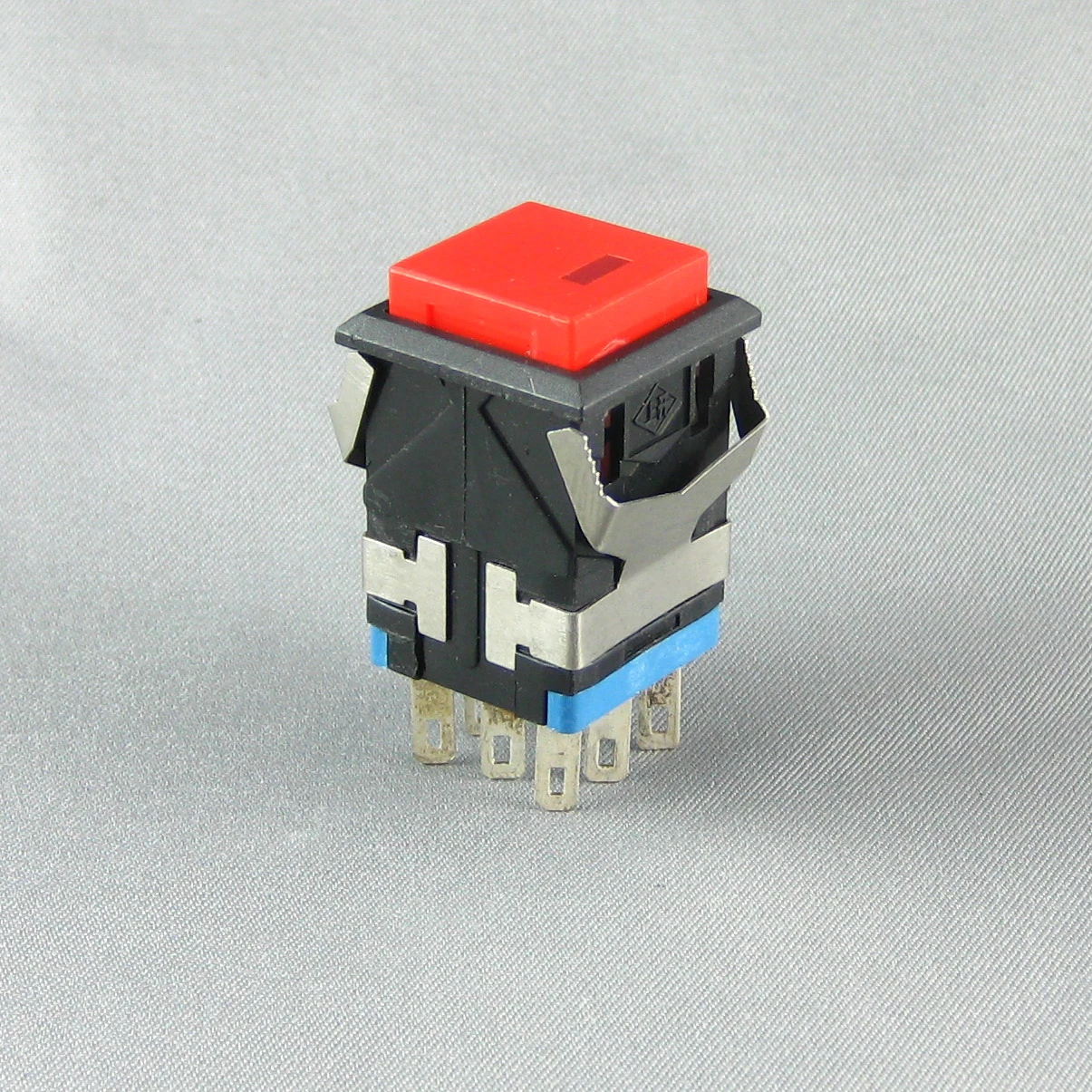

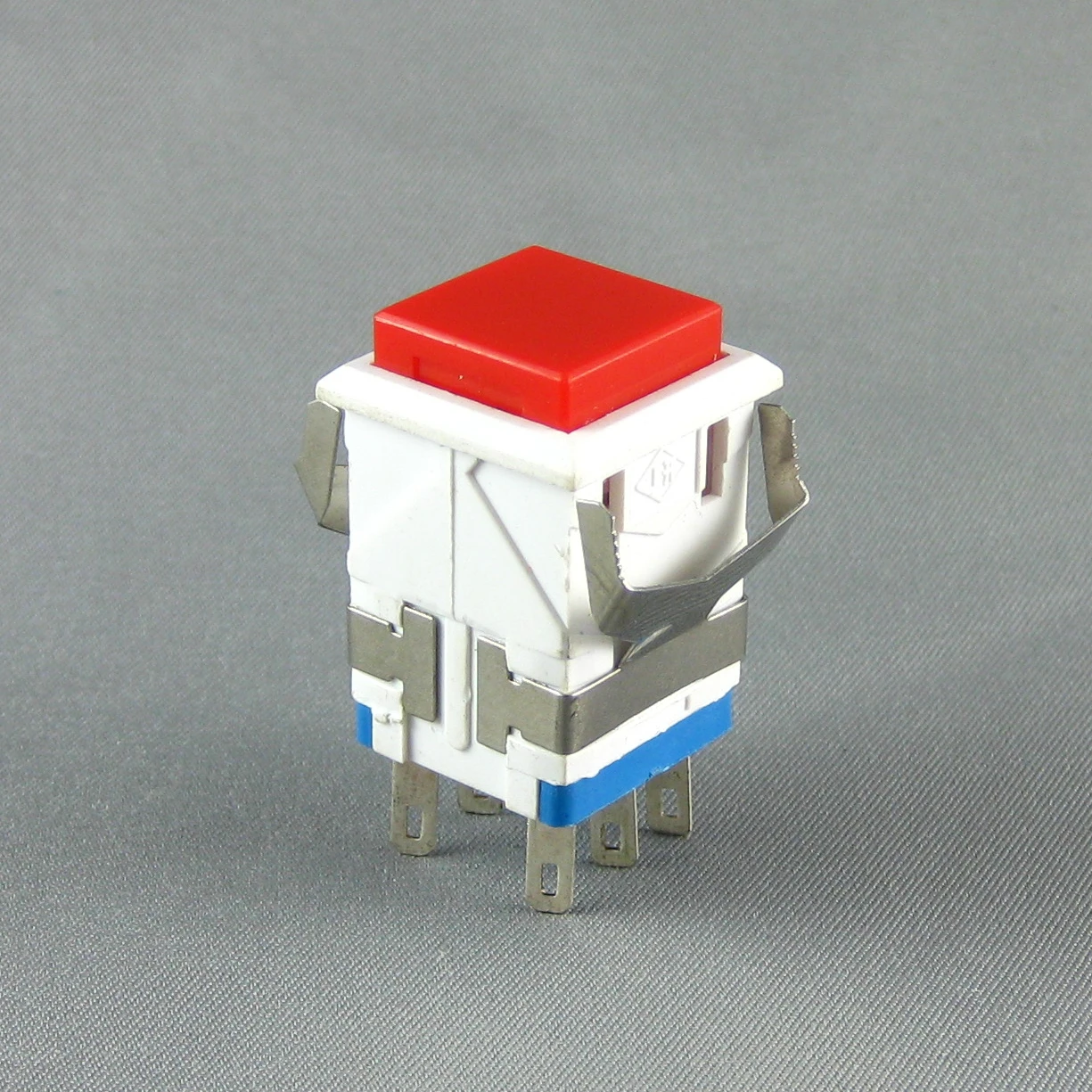

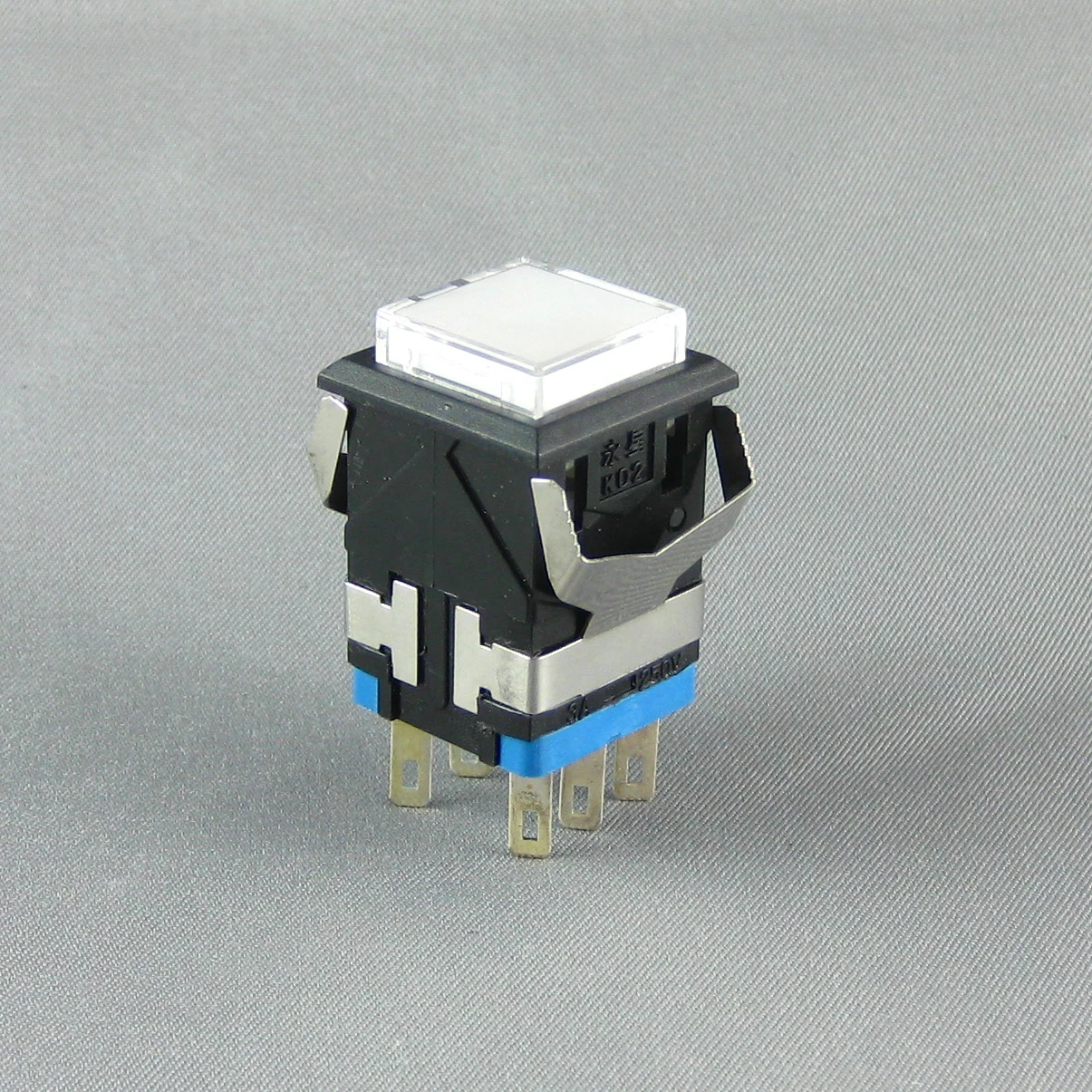

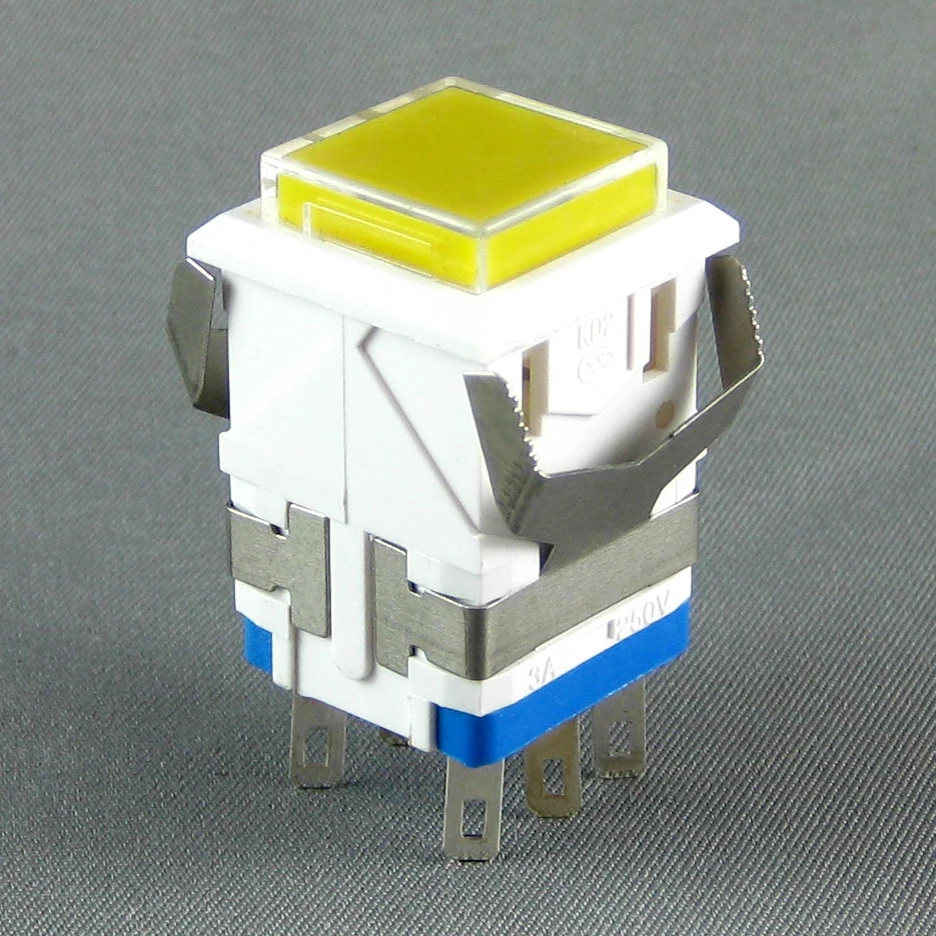

Why Choose Our Square Push Button Switch?
Our Square Push Button Switch is designed for industrial control applications, offering durability, reliability, and excellent performance. Made from high-quality PA66+PC material, it ensures long-lasting use in demanding environments. The self-locking operation and full illumination with a 12V LED make it user-friendly and visually appealing.
What Are the Key Features?
Key features include a 1NO1NC combination, 1500VAC dielectric strength, and 100MΩ minimum insulation resistance. The switch has a rated voltage of 250V AC and a maximum current of 3A, making it suitable for a wide range of industrial settings. With an IP40 protection level, it offers excellent dust and water resistance.
Why Buy from Us?
As a factory supplier, we offer wholesale pricing and reliable quality. We provide comprehensive after-sales service, ensuring your satisfaction. Choose us for factory-direct pricing, excellent quality, and outstanding service.
