Description
Product Specifications:
- Place of Origin: Shanghai, China
- Brand Name: SK(Shangkai) Yongxing
- Model Number: KCD8-11N-FB1A-B-R-01
- Current Rating: 6A
- Voltage Rating: 250V AC
- Mechanical Life: 50,000 Cycles
- Contact Resistance: ≤50mΩ
- Insulation Resistance: ≥1000MΩ
- Dielectric Strength: 1500VAC 1 Minute
- Electronic Life: 10,000 Cycles
- Certificate: CQC, CE, CB, ENEC17, ROHS
- Circuit: SPST ON OFF LED Illuminated
- Dimension Code: B1
- Contact Piece Code: A
- Lamp Voltage Options: 6V/12V/24V/110V/220V
- IP Level: IP40
- Operating Temperature: 0~55℃, 0~85℃, 0~105℃

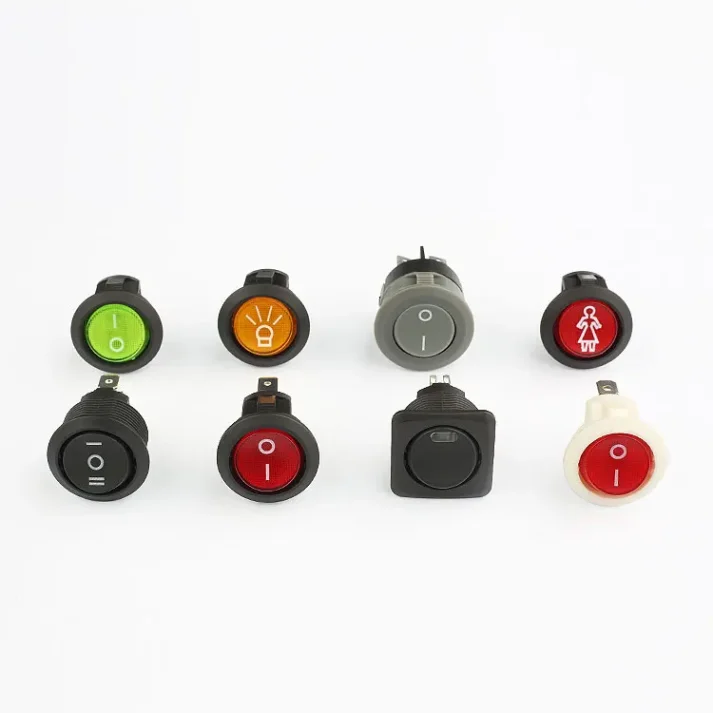

- Color Options: Red, Yellow, Green, Black, Blue, Orange, White, Gray
Advantages:
- High Durability: With a mechanical life of 50,000 cycles, this switch ensures long-lasting performance.
- Wide Voltage Range: Suitable for a variety of electrical systems with a voltage rating of 250V AC.
- Illuminated Design: The LED illumination makes it easy to identify the switch’s position, even in low-light conditions.
- Versatile Applications: Ideal for use in industrial, automotive, and marine applications.
Our Differentiators:
- Factory Direct Pricing: As a factory supplier, we offer competitive wholesale prices.
- Quality Assurance: Our switches are certified with CQC, CE, CB, ENEC17, and ROHS, ensuring high quality and safety.
- Customization Options: We offer various color and lamp voltage options to meet your specific needs.
After-Sales Service: We provide comprehensive after-sales support, including technical assistance and warranty services, to ensure your satisfaction.
|
item
|
value
|
|
Place of Origin
|
Shanghai, China
|
|
Brand Name
|
SK(shangkai) Yongxing
|
|
Model Number
|
KCD8-11N-FB1A-B-R-01
|
|
Current Rating
|
6A
|
|
Voltage Rating
|
250V AC
|
|
Mechanical Life
|
50000 Cycles
|
|
Contact Resistance
|
≤50mΩ
|
|
Insulation Resistance
|
≥1000MΩ
|
|
Dielectric Strength
|
1500VAC 1 Minute
|
|
Electronic Life (cycles)
|
10,000
|
|
Certificate
|
CQC CE CB ENEC17 ROHS
|
|
Circuit
|
SPST
|
|
Dimension Code
|
B1
|
|
Contact Piece Code
|
A
|
|
Lamp voltage
|
6v/12v/24v/110v/220v
|
Why Choose Our Waterproof Rocker Switch?
Our Waterproof 3-Pin 6A 250VAC Illuminated Rocker Switch stands out for its durability, versatility, and safety features. With a mechanical life of 50,000 cycles and an IP40 waterproof rating, it is designed to withstand harsh environments. The LED illumination provides clear visibility, making it easy to use in low-light conditions. Whether for industrial, automotive, or marine applications, this switch is a reliable choice.
Key Features and Benefits
The switch's high current and voltage ratings ensure compatibility with a wide range of electrical systems. Its SPST circuit design allows for simple ON/OFF control, while the various color and lamp voltage options provide flexibility for different applications. As a factory supplier, we offer competitive pricing and quality assurance, making this switch a cost-effective solution for your needs.
After-Sales Support and Warranty
We stand behind the quality of our products and offer comprehensive after-sales support. Our technical team is available to assist with any questions or issues you may have. Additionally, we provide a warranty to ensure your peace of mind. Choose our Waterproof Rocker Switch for a reliable, durable, and safe electrical solution.
