Description
Our factory is a leading supplier of high-quality push button switches, offering wholesale prices directly to customers. This waterproof push button switch is designed for durability and reliability, making it ideal for a wide range of applications. With a 22mm round mushroom button shape, it provides a clear and easy-to-use interface. The switch features a maximum rating of 10A 250VAC, ensuring it can handle high loads without issue. It also boasts a low contact resistance of ≤50mΩ and high insulation resistance of ≥100MΩ, guaranteeing excellent electrical performance. The switch has a dielectric strength of 1500V, an electronic life of 25,000 cycles, and a mechanical life of 50,000 cycles, making it highly durable. Operating temperatures range from -5°C to 75°C, and it has an IP44 protection level, making it suitable for use in various environments. One of the key advantages of our switch is its customization options. If you have a large enough quantity, we can tailor the switch to meet your specific requirements. Our company operates an independent plant with an injection workshop and advanced experimental equipment, employing over 60 senior engineers. All workshops adhere to 5S and 5M management standards, ensuring consistent quality and efficiency. As a factory supplier, we offer competitive wholesale prices and excellent after-sales service. Choose our push button switch for its quality, durability, and customization options.
| max.rating cnrrent&voltage |
10A 250vac |
| contact resistance |
≤50mΩ |
| insulation resistance |
≥100MΩ |
| dielectrice resistance |
1500V |
| electronic life |
25000 |
| mechanical life |
50000 |
| operating temperature |
-5℃—75℃ |
| ip code |
ip44 |
Why Choose Our Waterproof Push Button Switch?

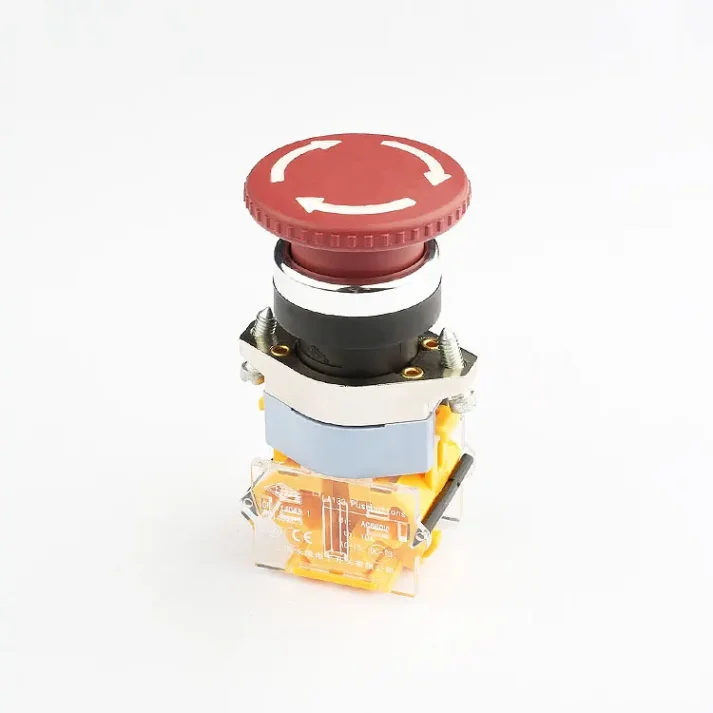

Our waterproof push button switch stands out for its durability, reliability, and customization options. Designed to withstand harsh environments, it features an IP44 protection level and operates efficiently within a wide temperature range. With a 22mm round mushroom button shape, it provides a clear and easy-to-use interface. Whether for emergency stop applications or industrial control systems, our switch ensures reliable performance.
What Are the Key Specifications?
Key specifications include a maximum rating of 10A 250VAC, low contact resistance (≤50mΩ), and high insulation resistance (≥100MΩ). The switch also has a dielectric strength of 1500V, an electronic life of 25,000 cycles, and a mechanical life of 50,000 cycles. These features make it suitable for high-load applications and ensure long-term reliability.
Can We Customize the Switch?
Yes, as a factory supplier, we offer customization options for large orders. Whether you need a specific color, size, or functionality, we can tailor the switch to meet your requirements. Our advanced production facilities and experienced engineers ensure that we can deliver high-quality customized products efficiently.
