Description

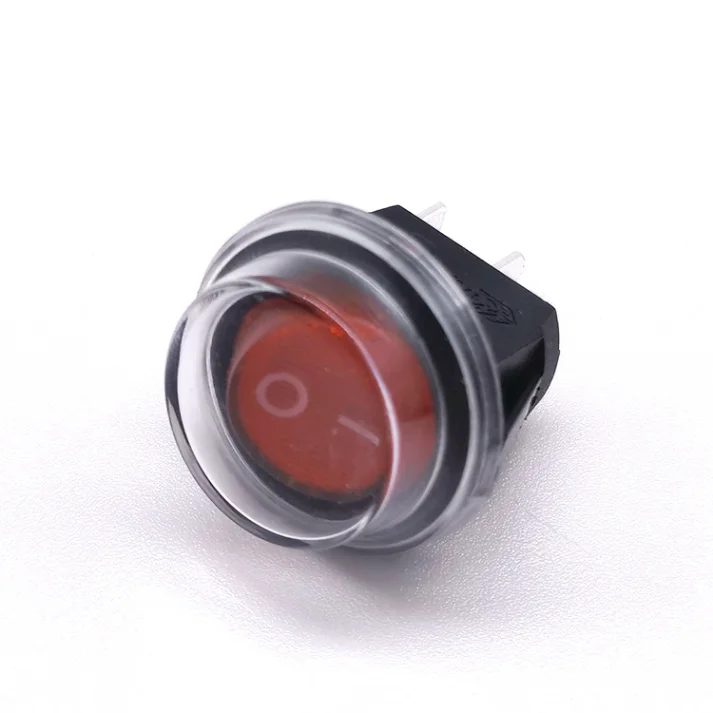

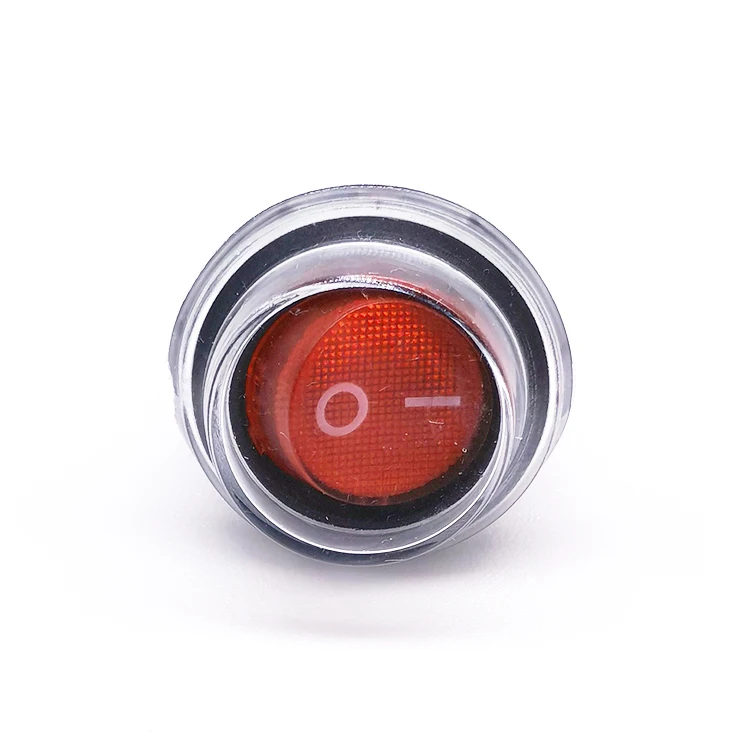

Introducing our high-quality 20mm round SPST 2-pin red waterproof rocker switch, a top-notch product from our factory. As a direct supplier and wholesaler, we offer competitive prices and reliable quality. This switch is designed with precision, featuring a current rating of 6A/10A and a voltage rating of 250V AC, making it suitable for a wide range of applications. With a mechanical life of 50,000 cycles and an electronic life of 10,000 cycles, it ensures long-lasting durability. The switch also boasts excellent electrical performance, with a contact resistance ≤50mΩ, insulation resistance ≥1000MΩ, and dielectric strength of 1500VAC for 1 minute. It is certified by CQC, CE, CB, ENEC17, and ROHS, guaranteeing safety and compliance. Our switch stands out with its IP41 protection level, versatile LED voltage options (6v/12v/24v/110v/220v), and compact dimension code B1. Whether you need it for industrial machinery, household appliances, or any other application, our waterproof rocker switch is the perfect choice. We offer factory-direct pricing, bulk discounts, and excellent after-sales service, ensuring your satisfaction.
|
item
|
value
|
|
Place of Origin
|
Shanghai, China
|
|
Brand Name
|
SK(shangkai) Yongxing
|
|
Model Number
|
KCD8-11-CB1A-B-R-01-waterproof cover
|
|
Current Rating
|
6A 10A
|
|
Voltage Rating
|
250V AC
|
|
Mechanical Life
|
50000 Cycles
|
|
Contact Resistance
|
≤50mΩ
|
|
Insulation Resistance
|
≥1000MΩ
|
|
Dielectric Strength
|
1500VAC 1 Minute
|
|
Electronic Life (cycles)
|
10,000
|
|
Certificate
|
CQC CE CB ENEC17 ROHS
|
|
Circuit
|
SPST
|
|
Dimension Code
|
B1
|
|
Contact Piece Code
|
A
|
|
Lamp voltage
|
6v/12v/24v/110v/220v
|
Why Choose Our Waterproof Rocker Switch?
Our waterproof rocker switch is designed for durability and reliability, with a long mechanical life of 50,000 cycles and excellent electrical performance. It's perfect for use in industrial machinery and household appliances, ensuring safe and efficient operation.
What Makes Our Switch Stand Out?
Our switch stands out with its IP41 protection level, versatile LED voltage options, and compact design. It's also certified by multiple international standards, guaranteeing safety and compliance. As a factory supplier, we offer competitive prices and bulk discounts.
What After-Sales Service Do We Offer?
We provide excellent after-sales service, including technical support and warranty coverage. If you encounter any issues with our switch, our dedicated team will be there to assist you, ensuring your satisfaction.
