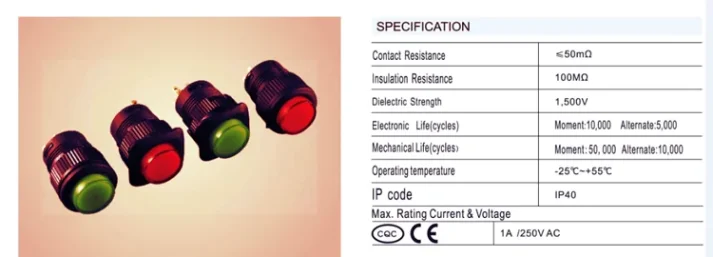

Description
|
Contact resistance |
≤50mΩ |
|
Insulation resistance |
≥100MΩ |
|
Dielectric strength |
1500v |
|
Electronic life (cycles) |
Moment:10000 Alternate:5000 |
|
Mechanical life (cycles) |
Moment:50000 Alternate:100000 |
|
Operating temperature |
25T55 |
|
IP code |
IP40 |
|
Max.Rating Current&Voltage |
1A/250V AC |
|
Certification |
CQC, CE |
Why Choose the FD16 LED Momentary Latching Switch?
The FD16 switch stands out for its durability, with a long electronic and mechanical life, ensuring reliable performance over time. Its customizable switching voltage and LED indicator make it versatile for various applications. The waterproof design adds an extra layer of protection, making it suitable for harsh environments.
What Are the Key Features of the FD16 Switch?
Key features include a contact resistance of ≤50mΩ, insulation resistance of ≥100MΩ, and dielectric strength of 1500V. It also has a wide operating temperature range and IP40 protection level. The switch is rated for 1A/250V AC and comes with CQC and CE certifications, ensuring safety and compliance.
How Can I Benefit from Buying Wholesale?
As a factory-direct supplier, we offer competitive wholesale pricing on the FD16 switch. Buying in bulk allows you to save money and ensure a steady supply for your business. We also provide excellent customer service and support to help you get the most out of your purchase.
