Description
Specifications:
- Max. Current: 10A, 16A
- Max. Voltage: 250V AC
- Operating Temperature: -25°C to +125°C
- Contact Resistance: ≤50mΩ
- Insulation Resistance: ≥100MΩ
- Electric Life: 50,000 cycles
- Dielectrical Strength: 1500V
- Protection Level: IP65, IP40
Advantages:
Our micro switches are not only durable and reliable but also customizable to meet your specific needs. With over 60 senior engineers, an independent plant, injection workshop, and advanced experimental equipment, we ensure that every switch meets the highest quality standards. All workshops adhere to 5S and 5M management standards, guaranteeing consistent quality and efficiency.
Uses:
Ideal for a wide range of home appliances, our micro switches are perfect for controlling various functions, ensuring smooth operation and longevity of your devices.
After-Sales Service:
We offer comprehensive after-sales service, including technical support and warranty coverage, ensuring your satisfaction and peace of mind.
Why Choose Us?
As a factory-direct supplier, we offer competitive pricing, high-quality products, and excellent customer service. Whether you need a small quantity or a large wholesale order, we’ve got you covered.
|
max.rating cnrrent&voltage
|
16A/15A 250VAC
|
||
|
contact resistance
|
≤50mΩ
|
||
|
insulation resistance
|
≥1000MΩ
|
||
|
dielectrice resistance
|
1500V
|
||
|
electronic life
|
50000
|
||
|
operating temperature
|
-25℃ TO 125℃
|
||
| certification | CQC, CE, ENEC, UL |
Why Choose Our Micro Switch?
Our micro switch stands out for its high quality, durability, and customizability. Designed for a wide range of home appliances, it ensures smooth operation and longevity of your devices. With a factory-direct supplier, you get competitive pricing and excellent customer service.
What Are the Key Specifications?

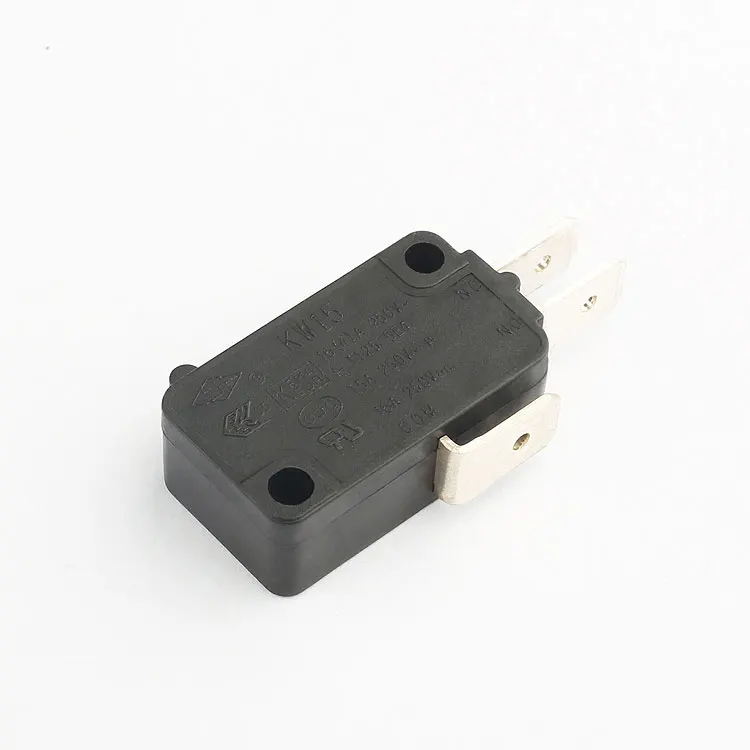

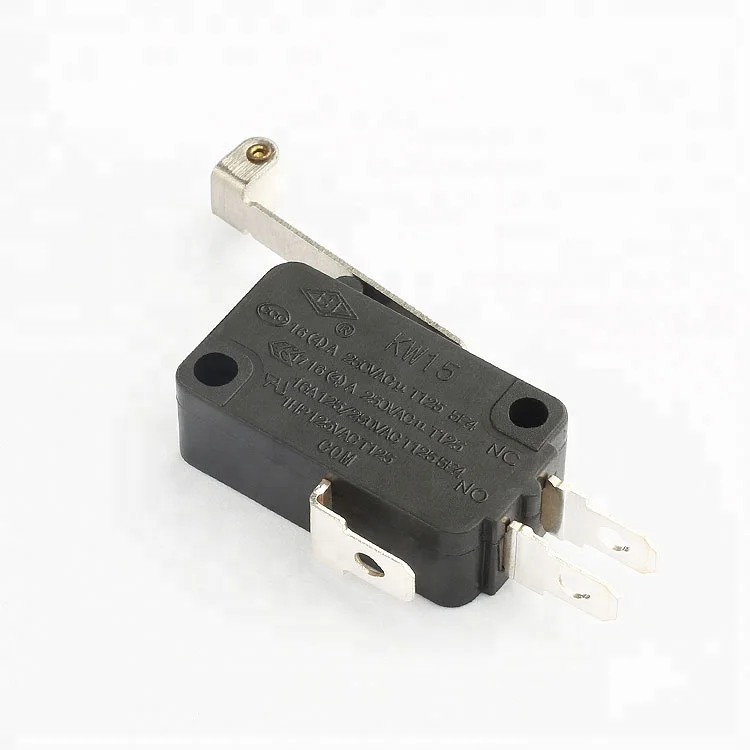

Our KW15 model micro switch features a max. current of 10A/16A, max. voltage of 250V AC, operating temperature range of -25°C to +125°C, contact resistance of ≤50mΩ, insulation resistance of ≥100MΩ, electric life of 50,000 cycles, dielectrical strength of 1500V, and protection levels of IP65 and IP40.
Can We Customize the Micro Switch?
Yes, we offer customization services to meet your specific requirements. With over 60 senior engineers and advanced manufacturing facilities, we can tailor the micro switch to your exact needs, ensuring optimal performance and satisfaction.
