Description
Product Specifications:
- Model Number: RS2-24E-AAA-BBA
- Max. Current: 16A
- Max. Voltage: 1500V AC
- Pins: 5
- Contact Resistance: ≤50mΩ
- Insulation Resistance: ≥100MΩ
- Dielectric Resistance: 1500V
- Electronic Life: 50,000 cycles
- Mechanical Life: 100,000 cycles
- Operating Temperature: T125
- IP Level: IP40
- Color: Black
- Certification: CQC, RoHS, ENEC
Product Advantages:
- Durable and Reliable: With a mechanical life of 100,000 cycles and an electronic life of 50,000 cycles, this switch is built to last.
- High Performance: Rated for 16A current and 1500V AC voltage, it can handle demanding applications with ease.
- Safety Certified: Compliant with CQC, RoHS, and ENEC standards, ensuring safety and reliability.
- Factory Direct: As a factory and supplier, we offer competitive pricing and direct access to our products.
- Wholesale Available: Perfect for bulk purchases, we offer wholesale pricing and flexible order quantities.
After-Sales Service:
We are committed to providing excellent after-sales service. If you encounter any issues or have any questions, our dedicated support team is here to assist you.
Choose our RS2-24E 5-pin rotary switch for a reliable, high-performance solution that meets your needs and exceeds your expectations.
|

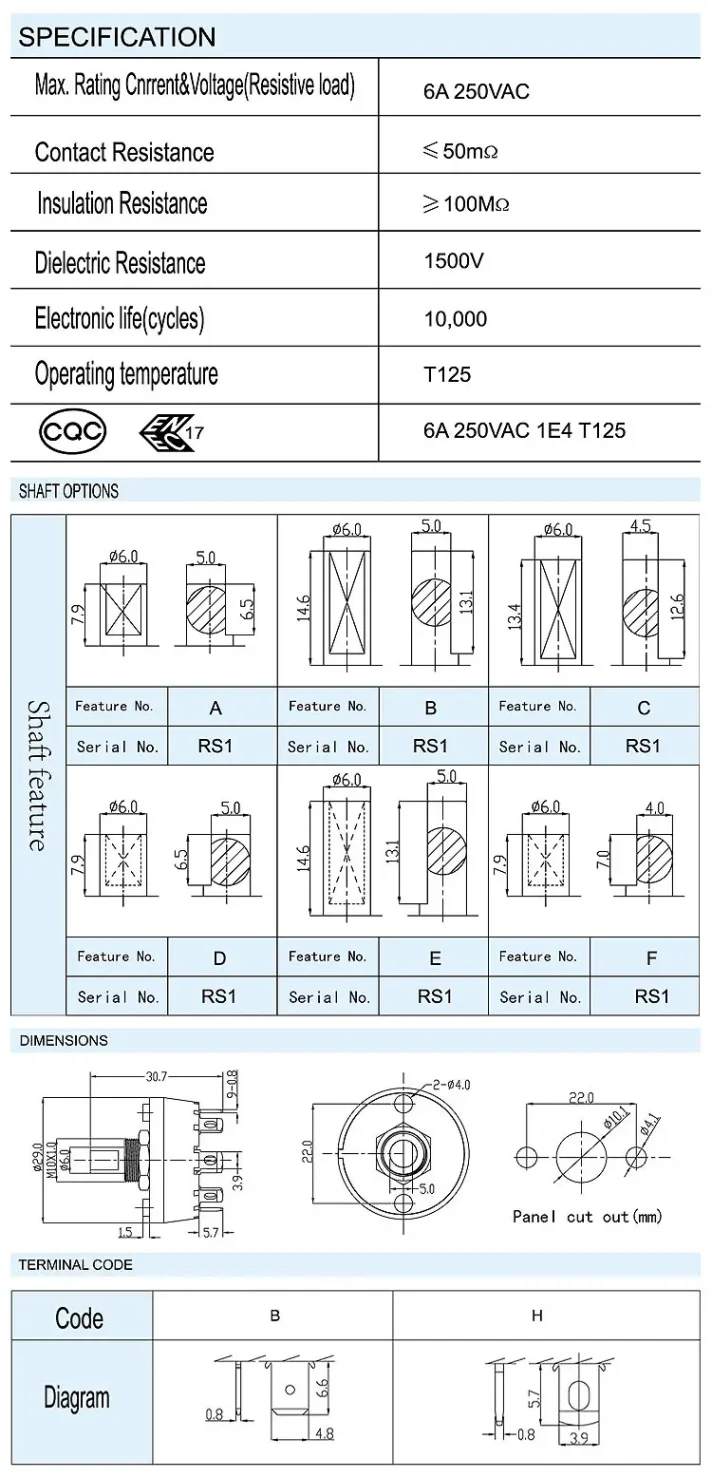

Max. Rating Current&Voltage(Resistive load) |
6A 250V AC |
| Contact Resistance of hot plate Rotary Switch | ≤50m Ω |
| Insulation Resistance | ≥100MΩ |
| Dielectric Resistance 4 position Rotary Switch | 1500V |
| Electronic life(cycles) | 10,000 |
| Operating temperature Rotary Switch | T125 |
| Certification |
CQC ENEC17 |
Key Features and Benefits
Our RS2-24E 5-pin rotary switch stands out with its high performance, durability, and safety certifications. Rated for 16A current and 1500V AC voltage, it can handle demanding applications with ease. The switch's mechanical life of 100,000 cycles and electronic life of 50,000 cycles ensure long-lasting reliability.
Why Choose Our Product?
As a factory and supplier, we offer competitive pricing and direct access to our products. Our RS2-24E switch is safety certified, meeting CQC, RoHS, and ENEC standards. Perfect for bulk purchases, we provide wholesale pricing and flexible order quantities, making it an ideal choice for businesses of all sizes.
Applications and Uses
This rotary switch is suitable for a wide range of applications, including industrial equipment, electrical systems, control panels, automation, and home appliances. Its high performance and reliability make it a versatile choice for various industries.
