Description
Introducing our high-quality waterproof rocker switch, a must-have for electric appliances. As a direct factory supplier, we offer wholesale pricing on this durable and reliable switch. With a DPST circuit and a 21x15mm dimension code, it’s perfect for a variety of applications. The switch boasts a 6A current rating and 250V AC voltage rating, ensuring safe and efficient operation. It’s CE, CQC, and ROHS certified, guaranteeing quality and compliance with international standards. The mechanical life of 50,000 cycles and electronic life of 10,000 cycles ensure longevity and durability. The contact resistance is ≤50mΩ, and the insulation resistance is ≥1000MΩ, providing excellent electrical performance. With a dielectric strength of 1500VAC for 1 minute, it’s built to withstand harsh conditions. The switch is available in multiple colors including red, yellow, green, black, blue, orange, white, and gray, allowing for customization to match your appliance’s design. Our factory-direct pricing and wholesale availability make this switch an excellent choice for bulk purchases. Trust in our quality and service, and make this rocker switch a part of your next project.
|
item
|
value
|
|
Place of Origin
|
Shanghai, China
|
|
Brand Name
|
SK(shangkai) Yongxing
|
|
Model Number
|
KCD6-21-CB1B-B-B
|
|
Current Rating
|
6A
|
|
Voltage Rating
|
250V AC
|
|
Mechanical Life
|
50000 Cycles
|
|
Contact Resistance
|
≤50mΩ
|
|
Insulation Resistance
|
≥1000MΩ
|
|
Dielectric Strength
|
1500VAC 1 Minute
|
|
Electronic Life (cycles)
|
10,000
|
|
Certificate
|
CQC CE ROHS
|
|
Circuit
|
DPST
|
|
Dimension Code
|
B1 (21x15mm)
|
|
Contact Piece Code
|
B (8 length, 4.8×0.8 standard)
|
|
Lamp voltage
|
6v/12v/24v/110v/220v etc.
|
Why Choose Our Waterproof Rocker Switch?

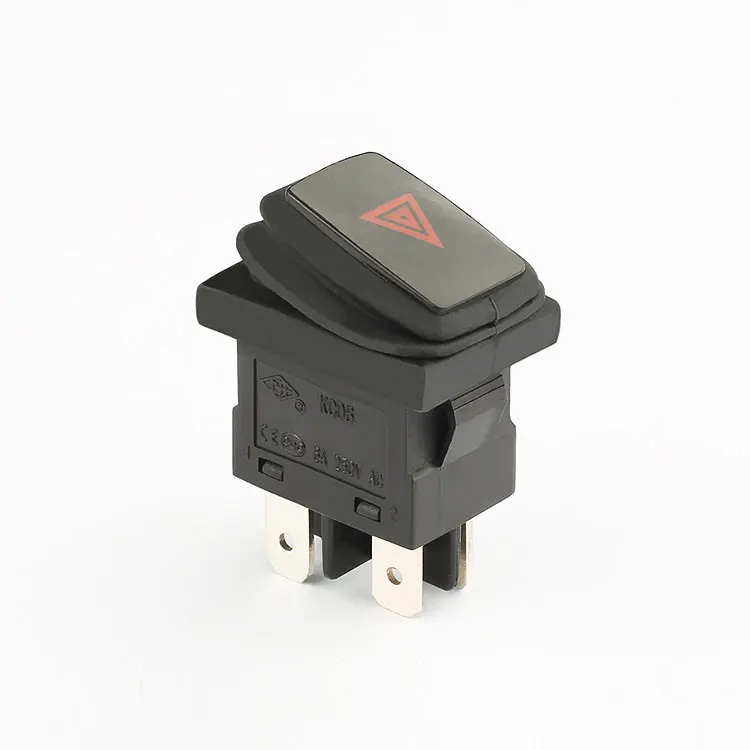

Our waterproof rocker switch is designed to withstand harsh environments, making it ideal for outdoor and marine applications. With a high mechanical and electronic life, it ensures reliable performance over time. The switch's waterproof feature protects it from moisture and dust, enhancing its durability and safety.
What Are the Key Specifications?
The switch has a 6A current rating and 250V AC voltage rating, with a DPST circuit and a 21x15mm dimension code. It's available in multiple colors and is CE, CQC, and ROHS certified, ensuring quality and compliance.
Where Can It Be Used?
Our rocker switch is perfect for electric appliances, industrial equipment, home automation systems, marine applications, and any outdoor electrical device requiring a reliable on/off switch.
