Description

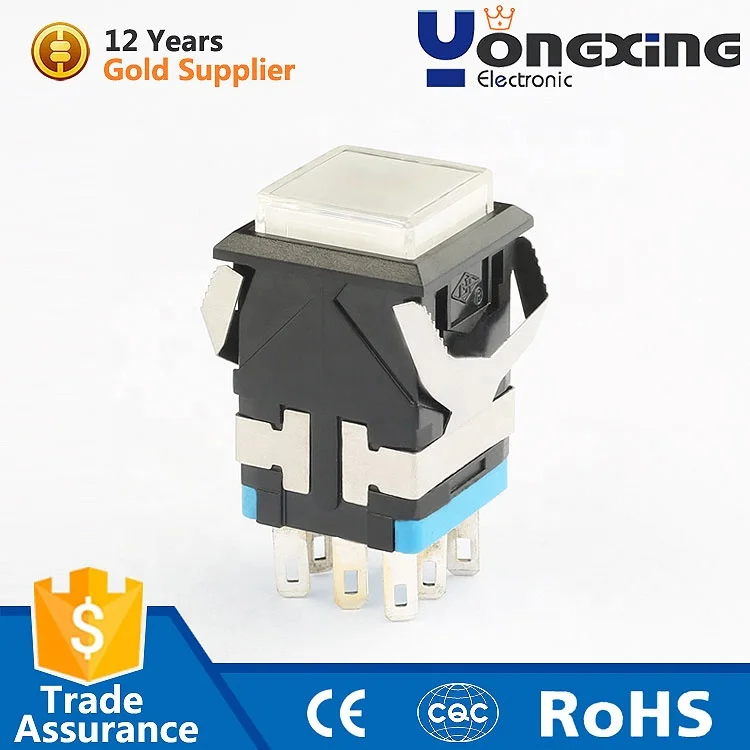

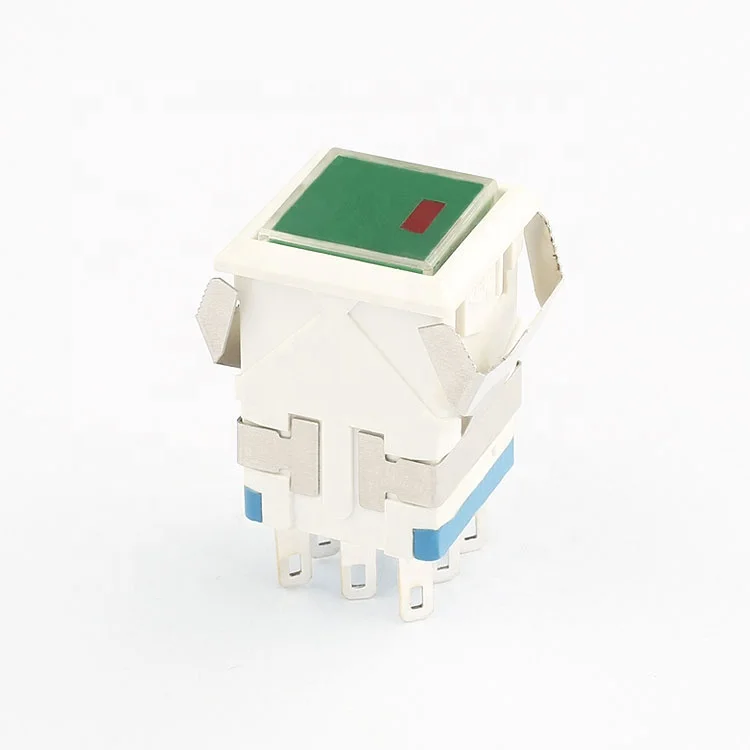

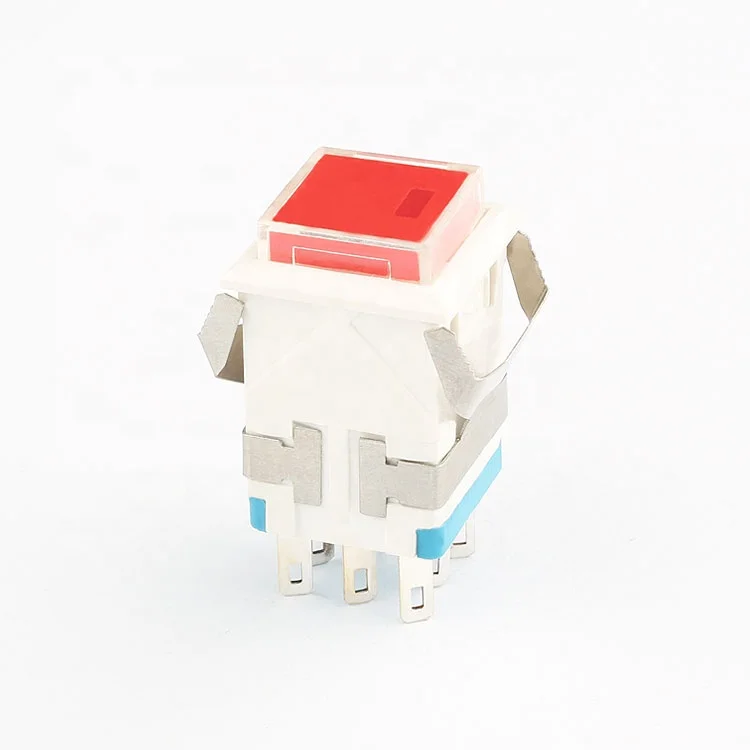

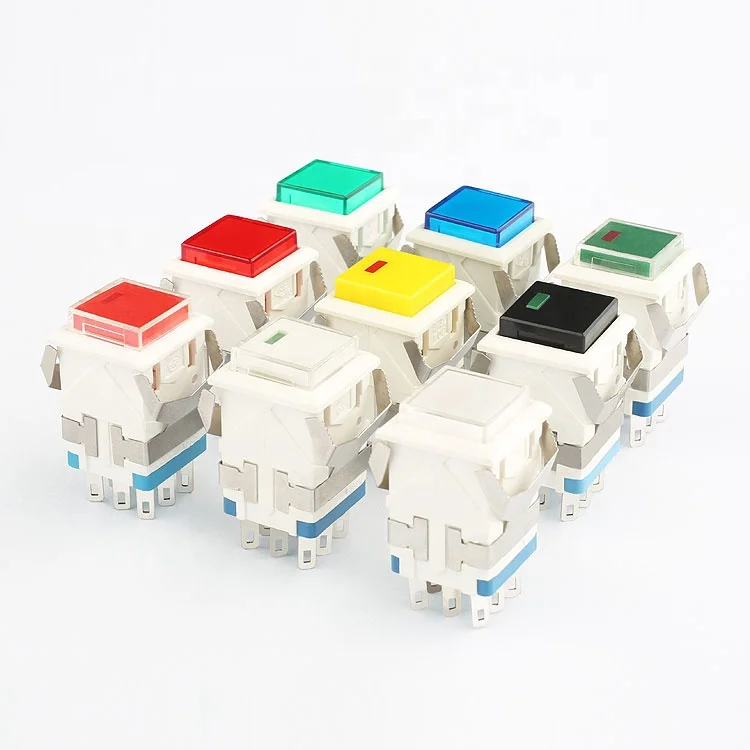

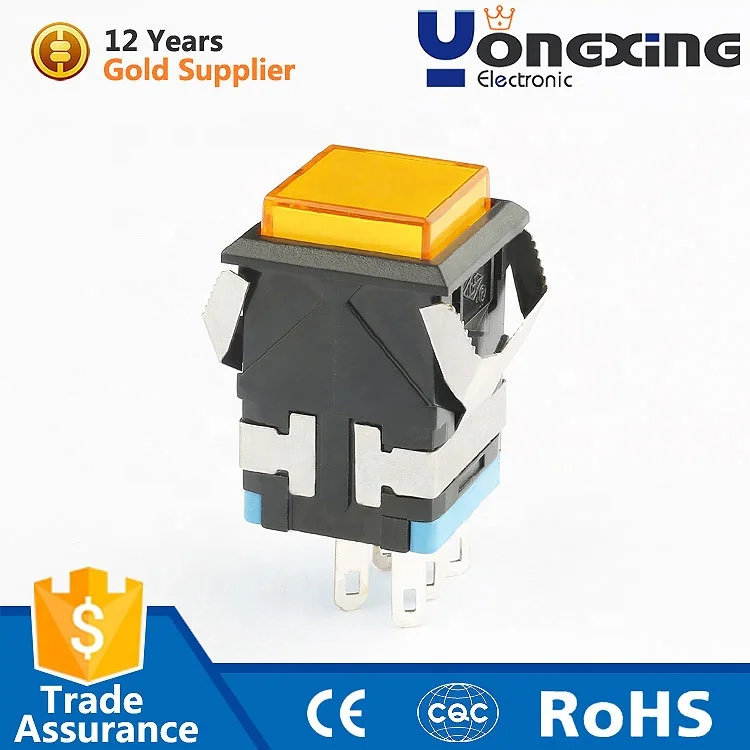

Our switch stands out with its electronic life of 10,000 cycles and mechanical life of 50,000 cycles, ensuring durability and reliability. It boasts a dielectric strength of 1500V, insulation resistance ≥100MΩ, and contact resistance ≤50MΩ, guaranteeing safe and efficient operation. The LED voltage options include 2V, 6V, 12V, 24V, 110V, and 220V, catering to a wide range of needs.
As a factory-direct supplier, we offer competitive wholesale prices and excellent customer service. Our switches are CQC CE certified, ensuring compliance with international standards. With an operating temperature range of -25℃ to +55℃ and a compact 17mm size, this switch is ideal for various environments. Choose our LED push button switch for superior performance and value.
|
contact resistance
|
≤50MΩ
|
electronic life（cycles）
|
10000
|
|
insulation resistance
|
≥100MΩ
|
mechanical life（cycles）
|
50000
|
|
dielectric strength
|
1500V
|
max.rating current & voltage
|
3A 250V AC
|
Why Choose Our LED Push Button Switch?
Our LED push button switch offers superior performance with a 3A 250V rating, ensuring reliable operation in various applications. The momentary action and dot illuminated LED provide clear visual feedback, making it ideal for electric, home appliance, and industrial control uses.
Durability and Reliability
With an electronic life of 10,000 cycles and mechanical life of 50,000 cycles, our switch is built to last. It features a dielectric strength of 1500V and insulation resistance ≥100MΩ, guaranteeing safe and efficient operation even in demanding environments.
Wholesale Supplier Advantage
As a factory-direct supplier, we offer competitive wholesale prices and excellent customer service. Our switches are CQC CE certified, ensuring compliance with international standards. Choose us for high-quality products and outstanding value.
