Description

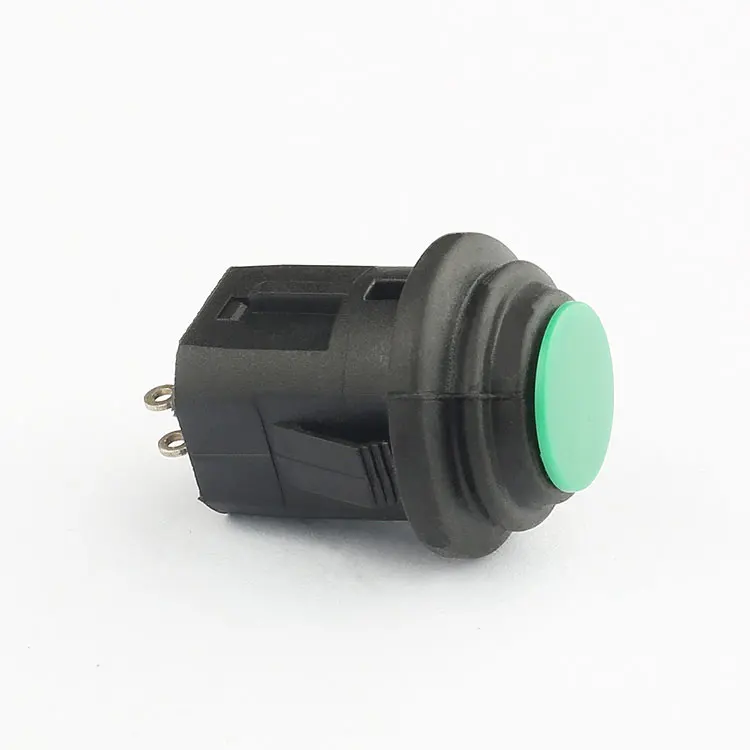

IP65 16mm 2-Pin Push Button Switch – Durable & Reliable
As a leading factory supplier and wholesaler, we offer this high-quality IP65 16mm 2-pin push button switch. With a maximum current of 3A and a maximum voltage of 250V AC, it’s perfect for a wide range of applications. Our switch features a mechanical life of 50,000 cycles and an electronic life of 10,000 cycles, ensuring long-lasting performance. The operating temperature range is -25℃ to +85℃, making it suitable for various environments.
This switch is not only waterproof with an IP65 rating but also comes with optional LED lighting (customizable upon request). The dielectric strength is 1500V, and it has a contact resistance of ≤50mΩ and an insulation resistance of ≥100mΩ. Certified by CQC and CE, it meets international quality standards.
What sets us apart is our ability to customize button switches according to your needs. With our independent plant, 60 senior engineers, and a perfect development process, we can provide tailored solutions for bulk purchases. Contact us today to discuss your requirements and get a competitive quote!
After-Sales Service
We offer comprehensive after-sales service, including technical support and warranty coverage. Our team is always ready to assist you with any questions or concerns you may have.
|
dielectric strength
|
1500v
|
||
|
mechanical life
|
50000
|
||
|
electronic life
|
10000
|
||
|
operating temperature
|
-25℃~85℃
|
||
|
IP code
|
IP40/IP65
|
Why Choose Our IP65 16mm Push Button Switch?
Our IP65 16mm push button switch stands out for its durability, reliability, and customization options. With a factory supplier background, we ensure high-quality products at competitive prices. The waterproof design and optional LED lighting make it suitable for a wide range of applications, from industrial machinery to home appliances.
Key Features
This switch boasts a mechanical life of 50,000 cycles and an electronic life of 10,000 cycles, ensuring long-term performance. The IP65 rating guarantees protection against dust and water, making it ideal for harsh environments. Additionally, the dielectric strength of 1500V ensures safety and reliability.
Customization & Wholesale
As a wholesaler and factory supplier, we offer customization services to meet your specific needs. Whether you require a different color, size, or functionality, our team of engineers can provide tailored solutions. Contact us today to discuss your requirements and take advantage of our wholesale pricing!
