Description
| Operating temperature | -25°c~+55°c |
| Installation group | III Class |
| Degree of pollution | Level 3 |
| Installation height | ≤2000m |
| Vibration | 10~200HZ.1mm.15g |
| Relative humidity | ≤98% |
| Protection degree | IP40 or IP65 or IP67 |
| Rated Insulation Voltage | AC660V |
| Rated Thermal current | 10A |
| Max insulation voltage | 2500V/min |
| Usage Category | AC-15 DC-13 |

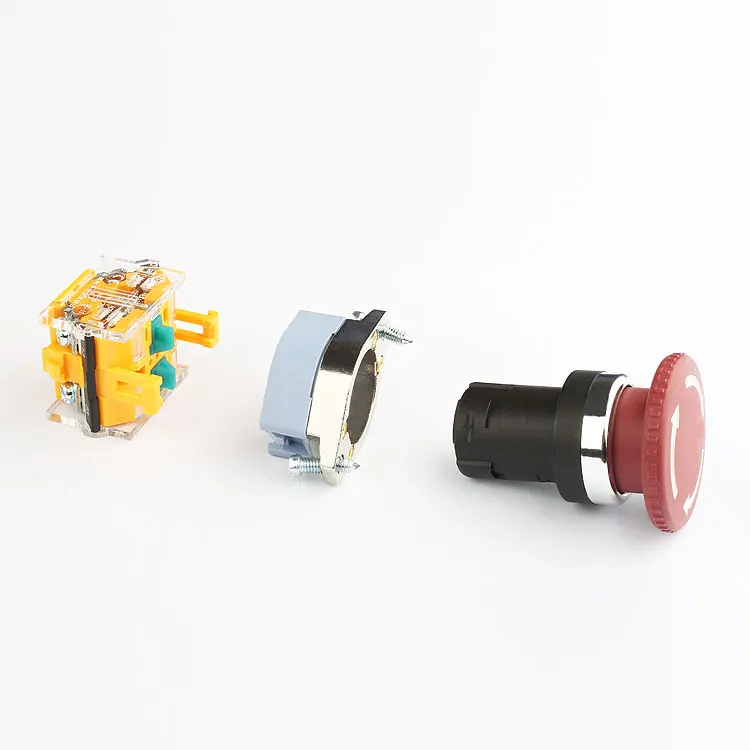

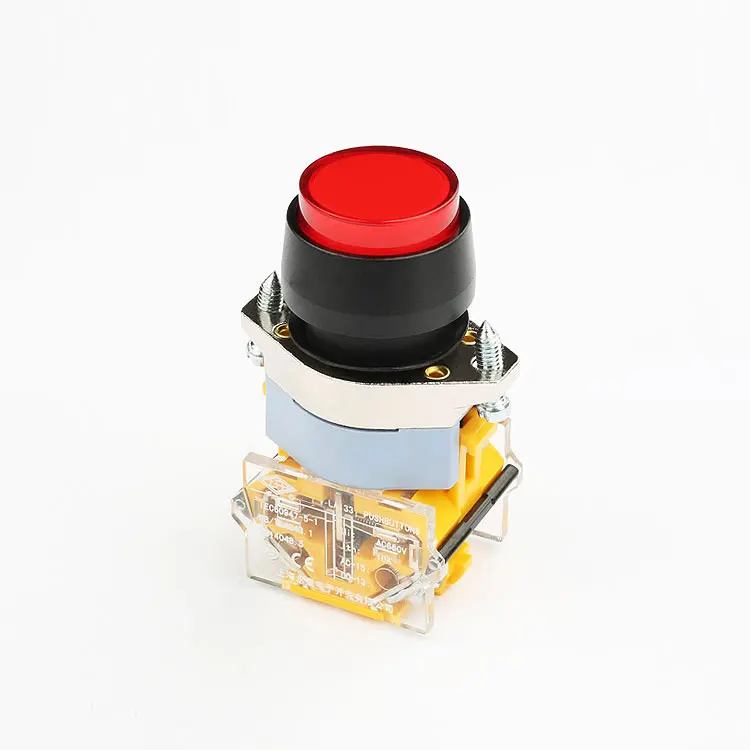

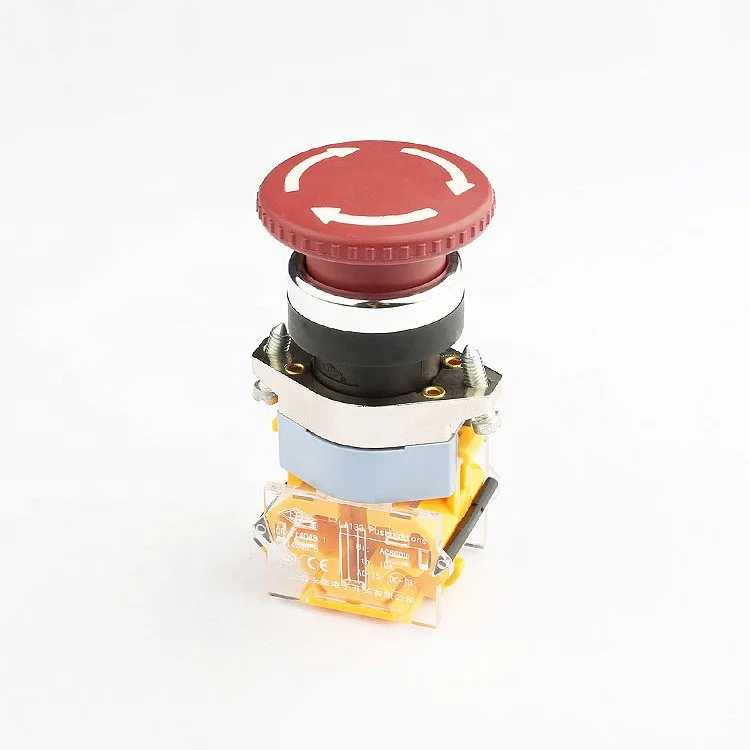

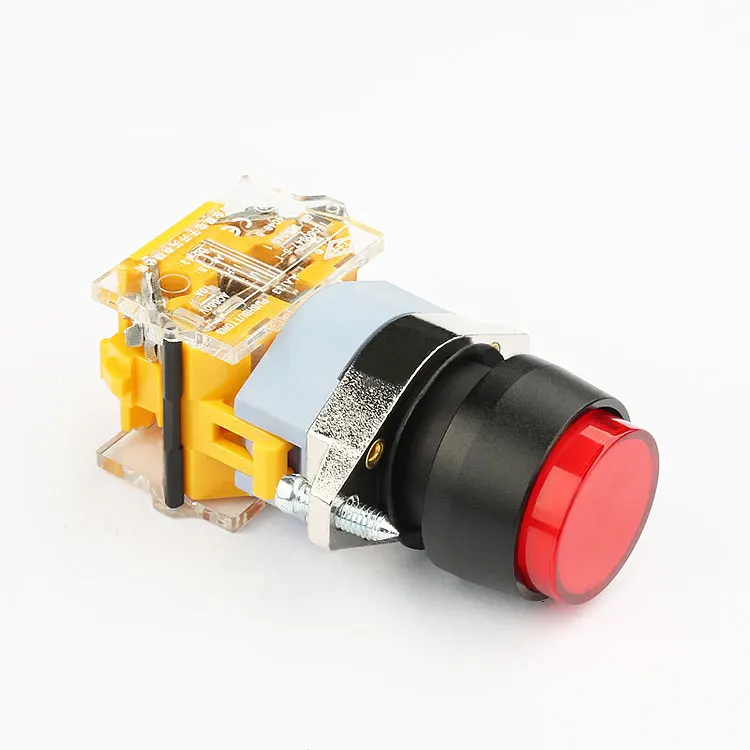

| Pusgbutton Mushrrom-head pushbutton&illuminated pushbutton actuator | 1 million |

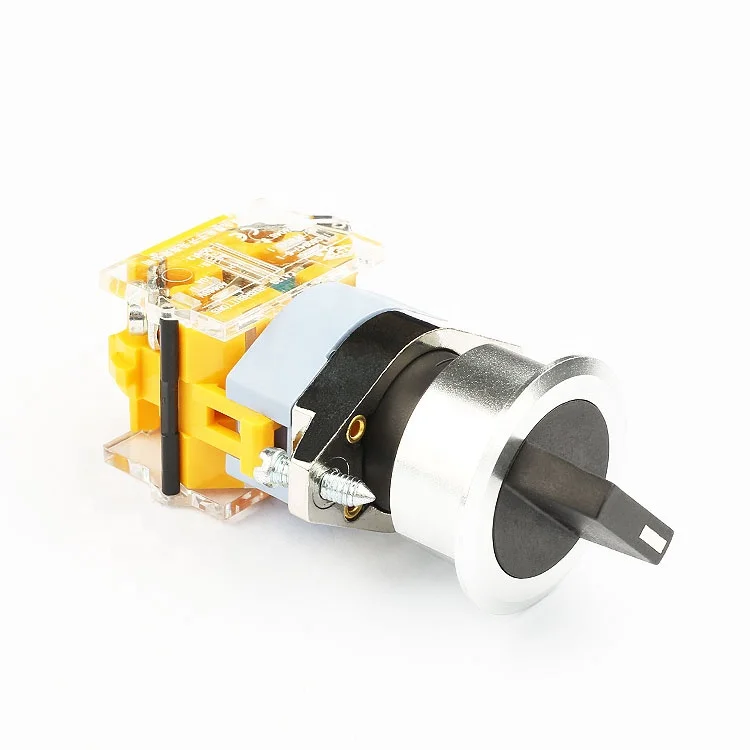

| Rotary switch,Key switches&Maintained action actuator | 0.3 million |

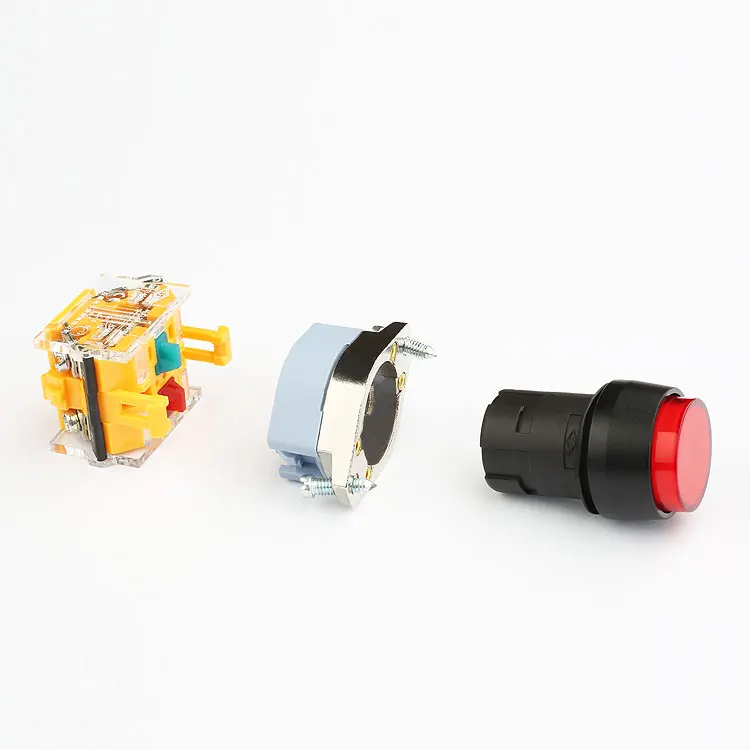

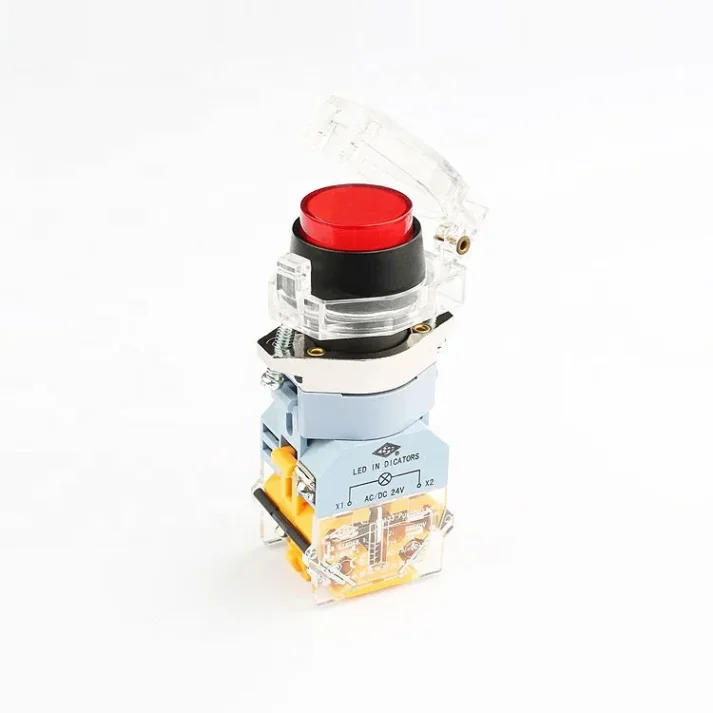

Why Choose Our IP67 Waterproof 22mm Push Button Switch?
Our switch stands out with its high IP67 waterproof rating, ensuring reliable operation in wet or dusty environments. The 22mm size is standard in the industry, making it easy to integrate into existing systems. With a long mechanical life expectancy and multiple protection levels, it's a durable and cost-effective choice for industrial control applications.
What Are the Key Features of Our Switch?
Key features include a rated insulation voltage of AC660V, a rated thermal current of 10A, and a long lever pushbutton head for easy operation. The switch is also available in multiple cap colors, allowing for customization to match your equipment or branding.
