Description

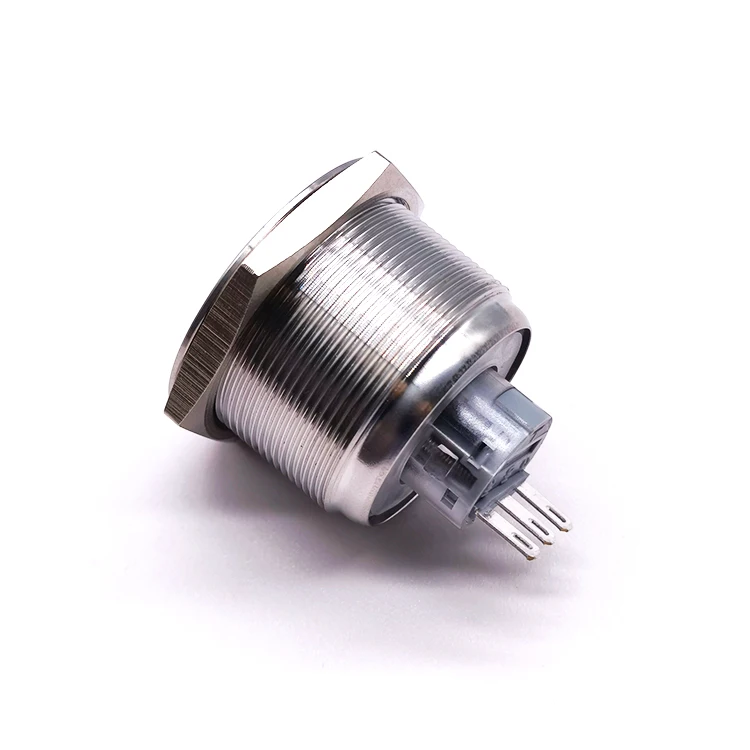

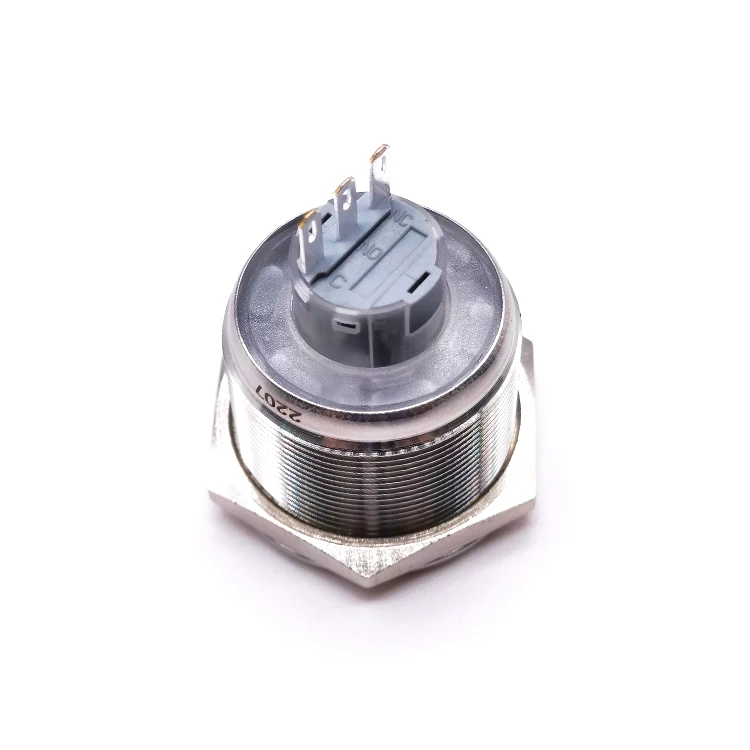

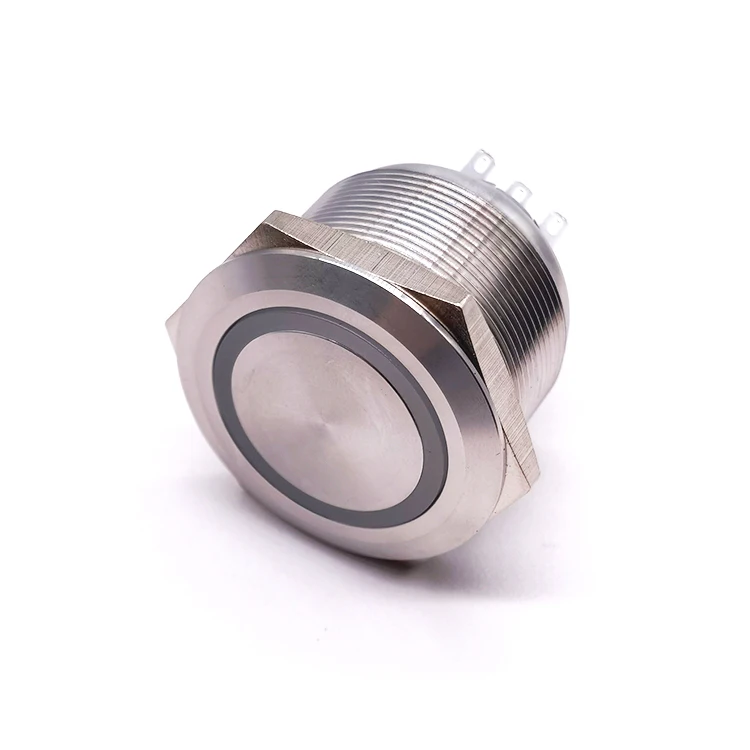

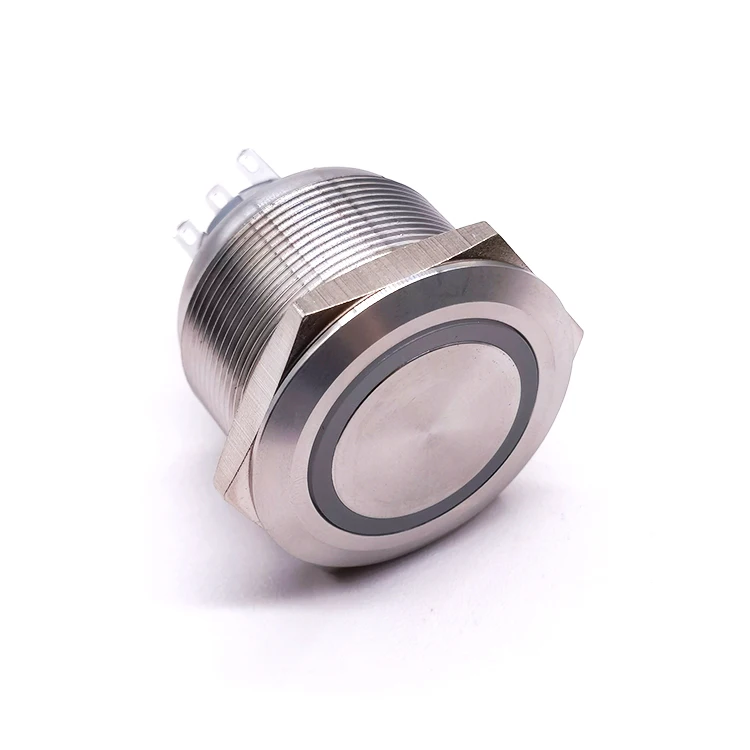

Discover our premium 30mm Push Button Switch, designed for durability and performance. This switch features a robust stainless steel metal construction, ensuring longevity and resistance to harsh environments. With an IP67 waterproof rating, it’s perfect for outdoor and industrial applications where moisture resistance is crucial.
Our switch comes with a 1NO1NC latching momentary configuration, offering versatile switching options. The integrated LED ring light provides clear visual indication, available in multiple colors including Black, Blue, Green, Red, White, and Yellow. It’s CE and RoHS certified, guaranteeing safety and compliance with international standards.
As a factory direct supplier, we offer wholesale pricing and bulk order discounts. With a mechanical life of 50,000 cycles and an electronic life of 10,000 cycles, this switch is built to last. It operates within a temperature range of -25°C to +65°C, making it suitable for a wide range of environments.
Key specifications include a maximum current of 5A and a maximum voltage of 250V. The switch also boasts low contact resistance (≤50mΩ) and high insulation resistance (≥100MΩ), ensuring reliable operation. Choose our switch for its superior quality, competitive pricing, and excellent after-sales service.
|
item
|
value
|
|
Certification
|
CE RoHS
|
|
Whether the smart
|
Yes
|
|
Place of Origin
|
China
|
|
Brand Name
|
Shanghai Yongxing
|
|
Model Number
|
YXDGQ30F-11EZ/J/S
|
|
Protection Level
|
IP67
|
|
Max. Current
|
5A
|
|
Max. Voltage
|
250V
|
|
LED
|
Other
|
|
Electronic Life
|
10000 cycles
|
|
Mechanical Life
|
50000 cycles
|
|
Working Environment Temperature
|
-25℃~+65℃
|
|
Switch circuit
|
1NO 1NC, 2NO2NC
|
|
Electrical Resistance
|
AC250V, 1min, no flicker and breakdown
|
|
Contact Resistance
|
≤50mΩ
|
|
Insulation Resistance
|
≥100MΩ
|
Key Features
Our 30mm Push Button Switch stands out with its IP67 waterproof rating, ensuring reliable operation even in wet conditions. The stainless steel metal construction provides durability and resistance to corrosion, making it ideal for industrial and outdoor applications.
Why Choose Us?
As a factory direct supplier, we offer competitive pricing and bulk order discounts. Our switch is CE and RoHS certified, guaranteeing safety and compliance. With a mechanical life of 50,000 cycles and an electronic life of 10,000 cycles, it's built to withstand heavy use.
Applications
This switch is perfect for control panels, machinery, and any application requiring a durable and reliable switching solution. The integrated LED ring light provides clear visual indication, enhancing user experience and safety.
