Description

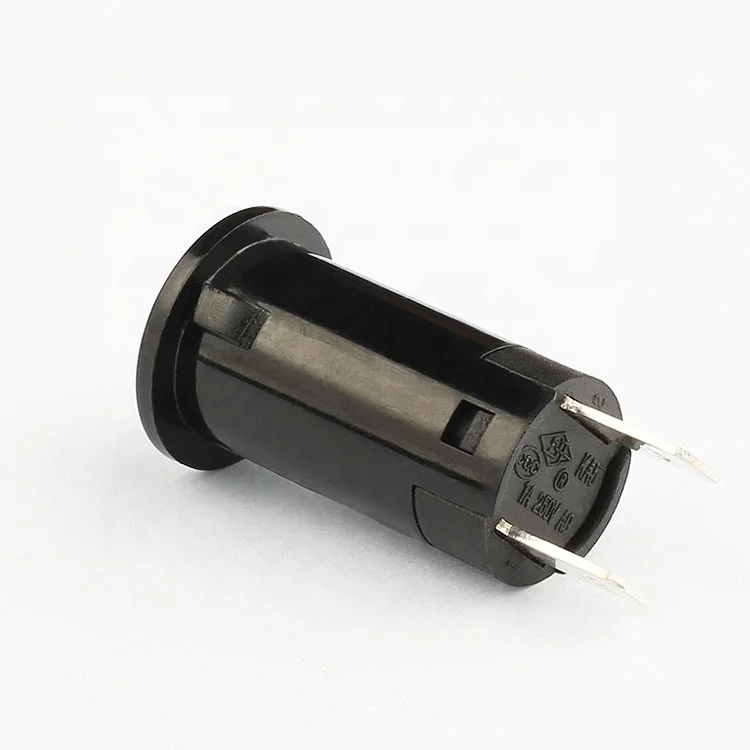

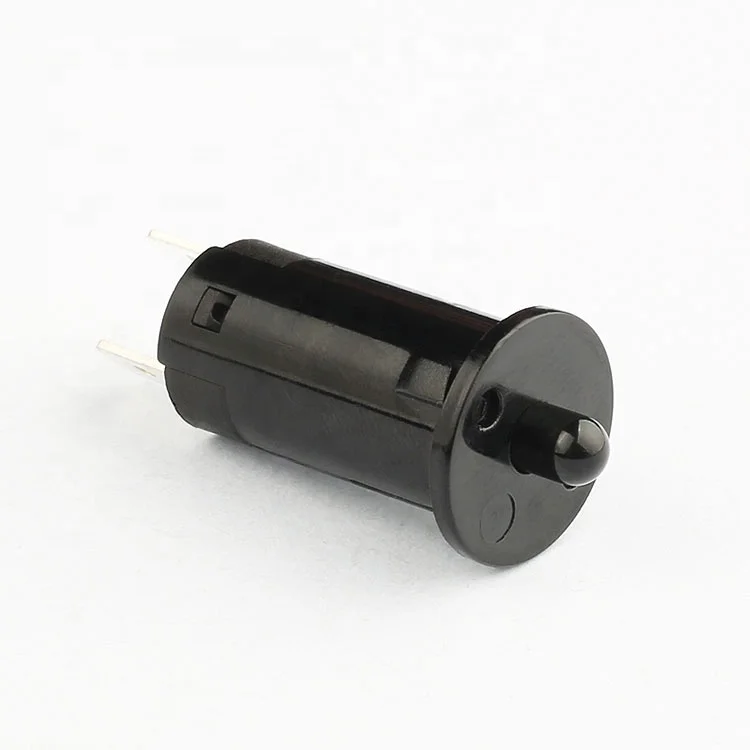

KA5 1A 250V Normally Closed Refrigerator Door Push Button Switch
As a direct factory supplier, we offer high-quality KA5 1A 250V normally closed 2-pin push button switches specifically designed for refrigerator doors. Our factory, equipped with an independent plant, injection molding workshop, and advanced experimental equipment, ensures top-notch product quality. With over 60 senior engineers and 5S management implemented in all workshops, we are committed to meeting your customized needs for large quantities.

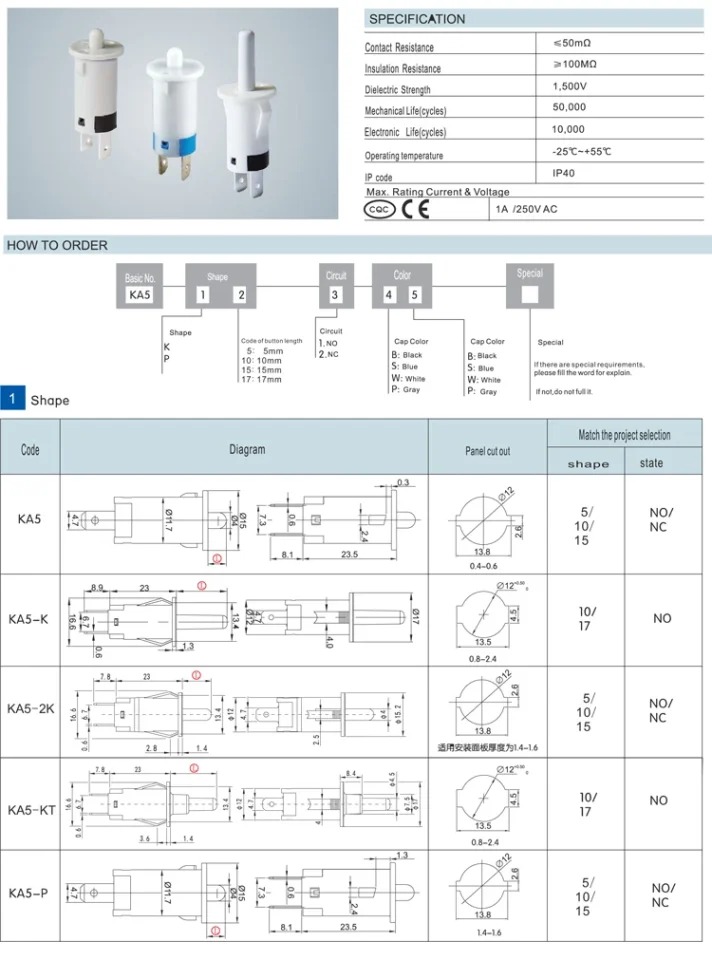

Product Specifications:
- Max. Current: 1A
- Max. Voltage: 250V
- Place of Origin: Shanghai, China
- Brand Name: Shangkai (SK)
- Model Number: KA5-5-NO-BB
- Function: Normally Closed
- Material: Plastic
- Contact Resistance: 50mΩ Max
- Insulation Resistance: 100MΩ
- Dielectric Strength: 1500V
- Mechanical Life: 50,000 cycles
- Electrical Life: 10,000 cycles
- Certification: CQC, CE
- Protection Level: IP40
- Size: 12mm
- Rated Voltage: 240V
Product Advantages:
Our KA5 switch stands out with its durable plastic construction, ensuring longevity and reliability. With a mechanical life of 50,000 cycles and an electrical life of 10,000 cycles, it offers superior performance compared to many competitors. Additionally, our factory-direct wholesale pricing makes it an affordable choice for bulk purchases.
After-Sales Service:
We provide comprehensive after-sales service, including technical support and warranty coverage. Contact us today to discuss your requirements and benefit from our factory-direct wholesale pricing.
| rated current/votage | 10a/250v ac |
| electronic life | 50000 cycles |
| dielectric strength | 1500v |
| certifications | CE CQC |
| contact resistance | ≥1000MΩ |
| Operating temperature | -25-+55℃ |
| IP code | IP40 |
Why Choose Our KA5 Refrigerator Door Switch?
Our KA5 1A 250V normally closed push button switch is specifically designed for refrigerator doors, offering reliable performance and durability. With a factory-direct wholesale supply, we ensure competitive pricing and high-quality products.
Key Features:
The switch features a plastic construction for longevity, a normally closed function for consistent operation, and a mechanical life of 50,000 cycles, making it ideal for frequent use in appliances.
Benefits for You:
By choosing our KA5 switch, you benefit from factory-direct pricing, customizable options for large quantities, and comprehensive after-sales service. Upgrade your refrigerator doors with our reliable switch today.
